Power supply board for tyre balancing machine
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: W-PLYT-0001
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
PCB power supply board for wheel balancers – Control module
We offer a high-quality power supply board designed for popular models of wheel balancers. It is a key electronic component responsible for voltage distribution and control of the machine's basic functions, including motor operation and measuring systems. Failure of this component is a common cause of problems with starting the wheel balancer or unstable operation of the device.

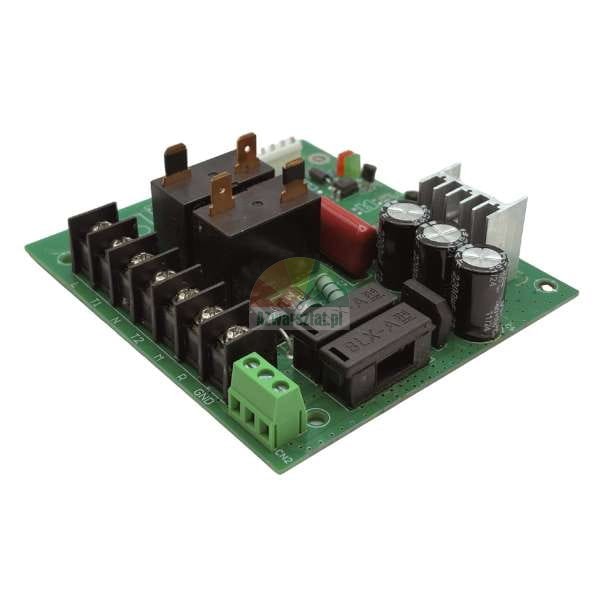

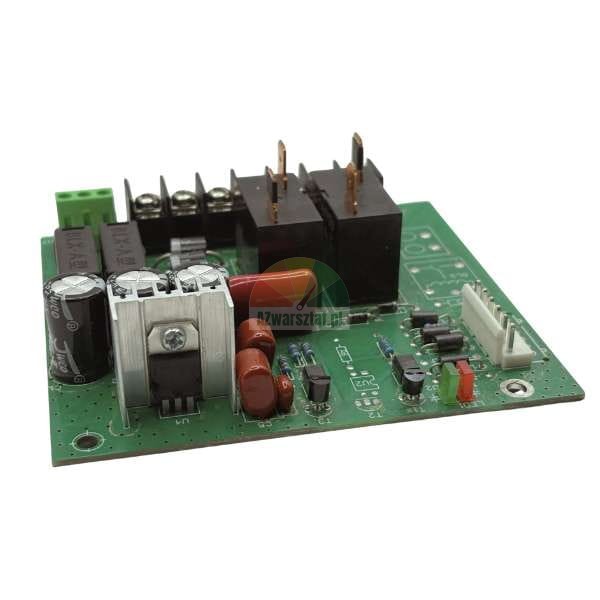

High quality workmanship: The board is equipped with durable relays, a solid heat sink and branded capacitors, which ensures long service life and stable operation even with intensive use in the workshop.
Technical specifications and construction

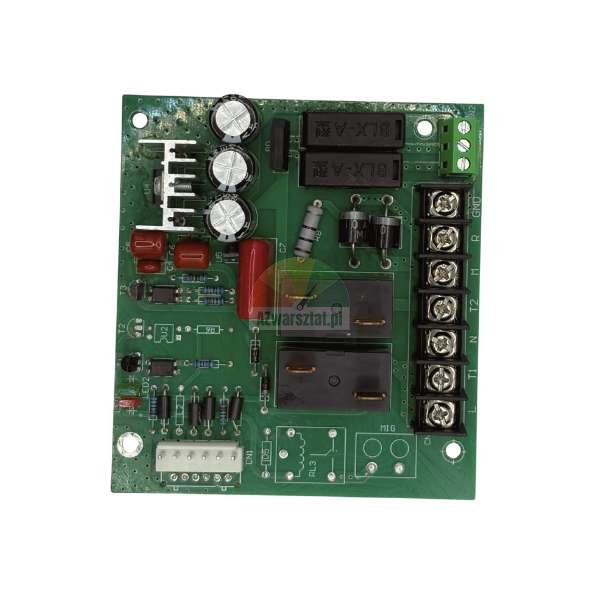

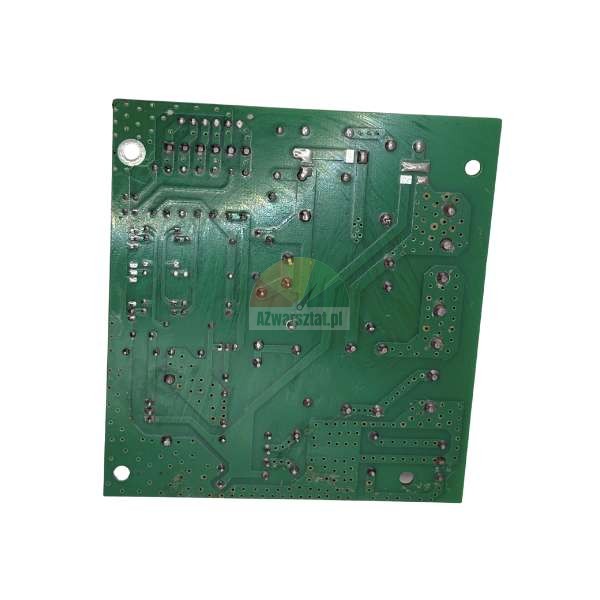

The module is characterised by precise track design and solid component soldering. The board has integrated BLX-A fuse sockets, which facilitates servicing and protects the system against overvoltage. The laminate has clear connector markings, which greatly simplifies the installation process.

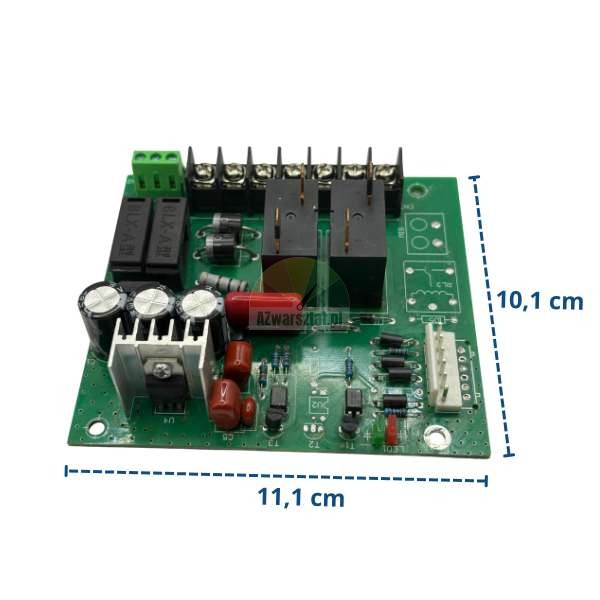

- Board dimensions: 11.1 cm (length) x 10.1 cm (width)
- Terminal connectors: Solid screw terminal strip (7-pin)

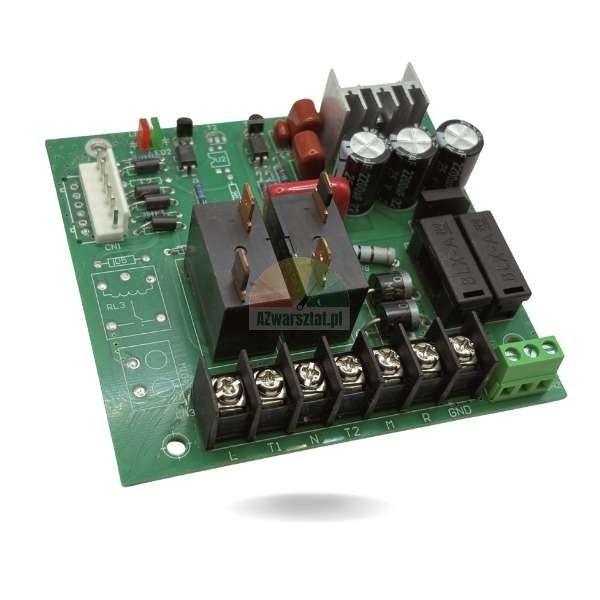

- Output markings: L, T1, N, T2, M, R, GND
- Additional connectors: 6-pin socket (white) and 3-pin socket (green)
- Equipment: Heat sink, electrolytic capacitors, control relay system
Application and compatibility
The power supply board is compatible with a wide range of wheel balancers available on the market, including many Chinese models and devices from brands commonly found in tyre repair shops. Thanks to its standard dimensions and typical connectors, it is an ideal replacement part.
Important tip: Before making a purchase, we recommend comparing the dimensions (11.1 cm x 10.1 cm) and the layout of the connectors shown in the photos with the old board in your device. This will help you avoid mistakes and ensure quick repair of the machine.
As specialists in the workshop equipment industry (azworkshop.eu), we guarantee that the components we offer are new and tested. Give your wheel balancer a second life with professional spare parts.
