Premium: Speed nut 40x3
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: W-NAKR-0008
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

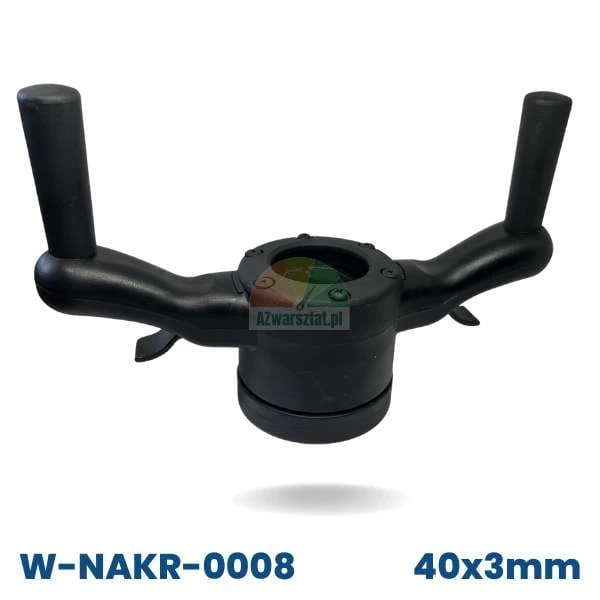

Premium: Quick-release nut 40x3
The 40x3 Premium quick-release nut is a robust and reliable spare part for wheel balancers. Thanks to its precision workmanship and robust construction, it is ideal for professional workshops, tyre service centres and diagnostic stations.
If you frequently replace quick-release nuts, invest in quality. The premium version guarantees longevity and working comfort, even under intensive use.
Application and compatibility

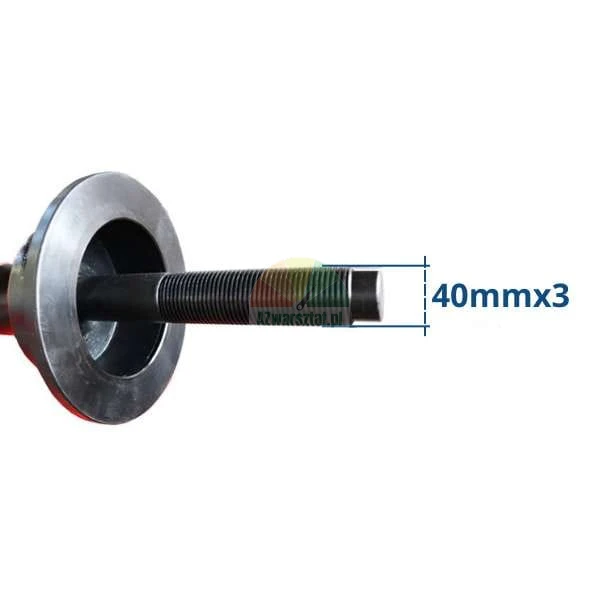

The product is suitable for wheel balancers with a shaft diameter of 40 mm and a thread pitch of 3 mm. Compatible with e.g. BALCO, BEISSBARTH, BOSCH, CORGHI, FAIP, HPA, M&B and many other models available on the market.
Technical specifications
- Thread: 40 mm x 3 mm
- Body height: 76 mm
- Overall length (with handles): 255 mm
- Handle length: 90 mm
- Arm length from body to handle: 40 mm
Key features:
- Ergonomic handles for comfortable and fast handling
- Robust construction to withstand intensive use
- Spacer sleeve option for improved fit and shaft protection

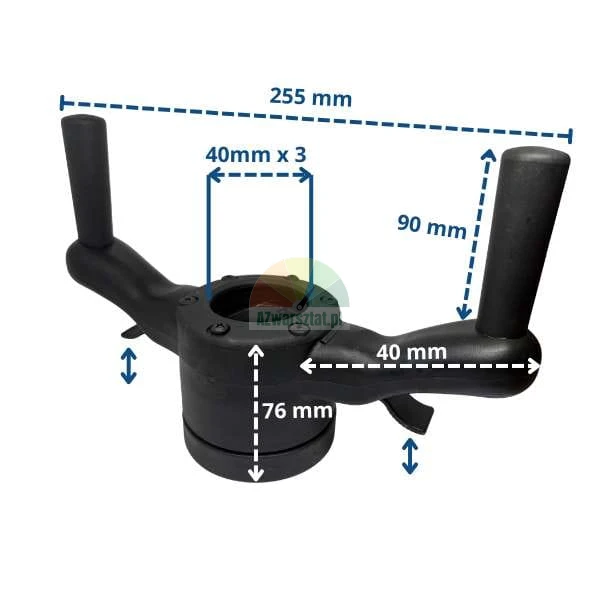

Product image
The picture shows a quick-release nut with the following dimensions:
- Body diameter: 76 mm
- Overall length with handles: 255 mm
- Height: 90 mm
Catalogue number: W-NAKR-0008
Product safety
Manufacturer
Jin Hoi International Trading Ltd
Office Tower 625 and 639 Nathan Rd
Rm1101-02.11 Hong Kong, China
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Importer
LIVRE RAPIDEMENT SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Osiedle Mieszka I-go 4/46
26-340 Drzewica, Poland
