Universal laser pointer for balancing machines TYPE A
Shipping costs are not included in the price.
Shipping costs are not included in the price.

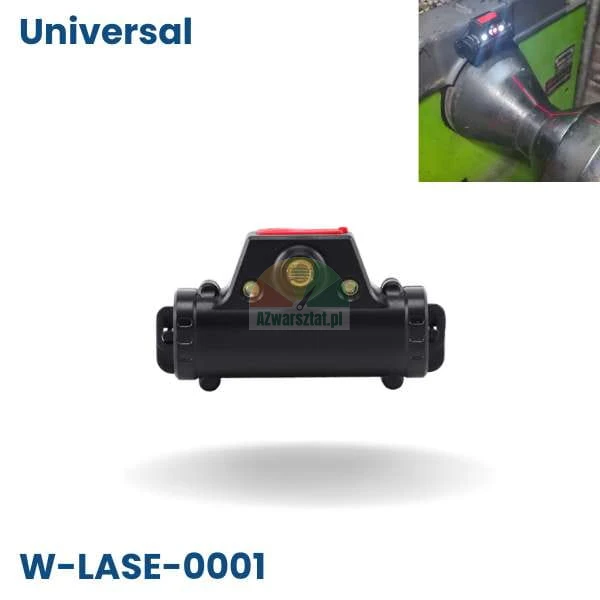

Product code: W-LASE-0001
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
Universal laser pointer for wheel balancers TYPE A

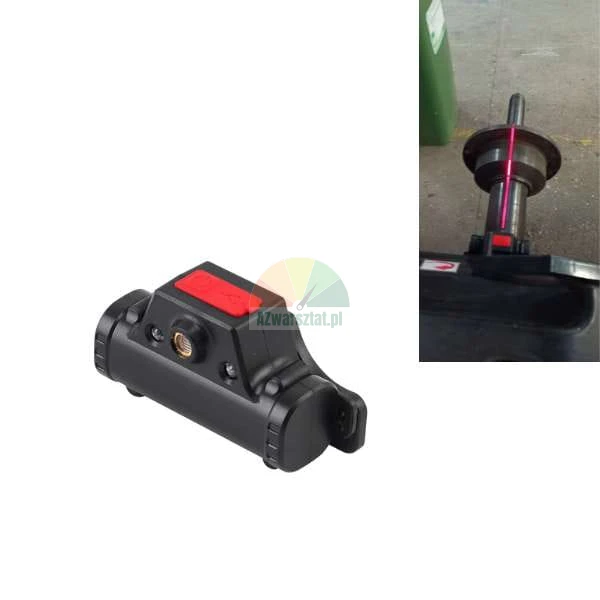

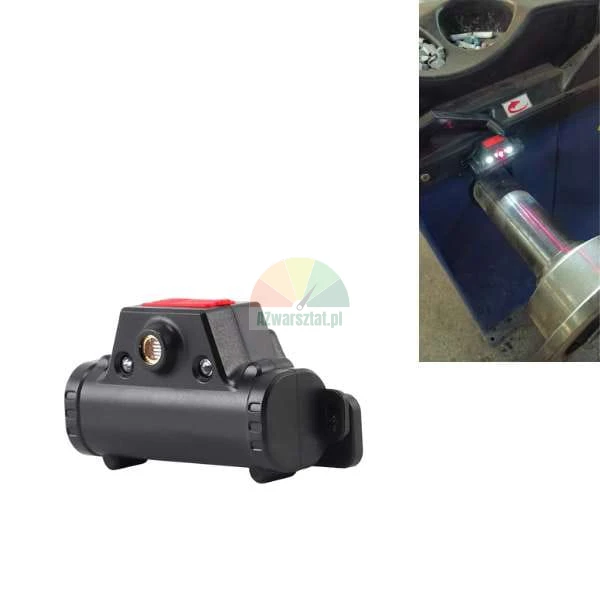

The TYPE A universal laser pointer for wheel balancers is a state-of-the-art solution that facilitates the precise positioning of weights during wheel balancing. Thanks to its 650 nm red laser, it provides a clear and accurate marking of the mounting location, which increases precision and saves time by eliminating measurement errors.
- The pointer has its own battery - no connection to the wheel balancer is required.
- Works with all types of wheel balancers, simply mount the bracket in the correct location

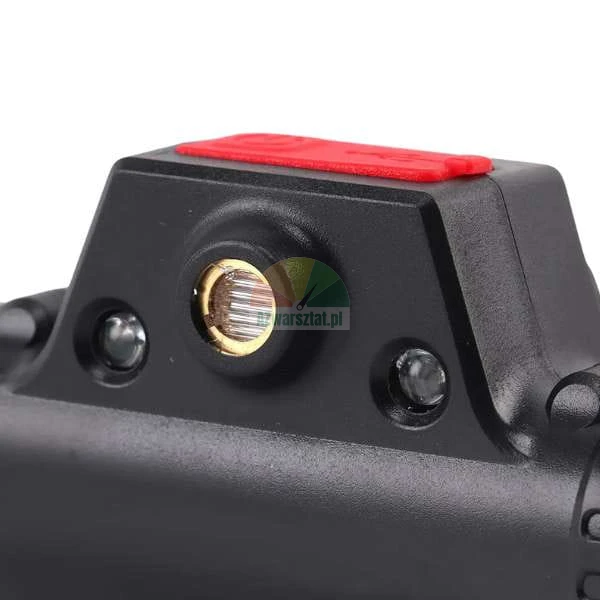

- Laser positioning function and LED illumination of the wheel interior

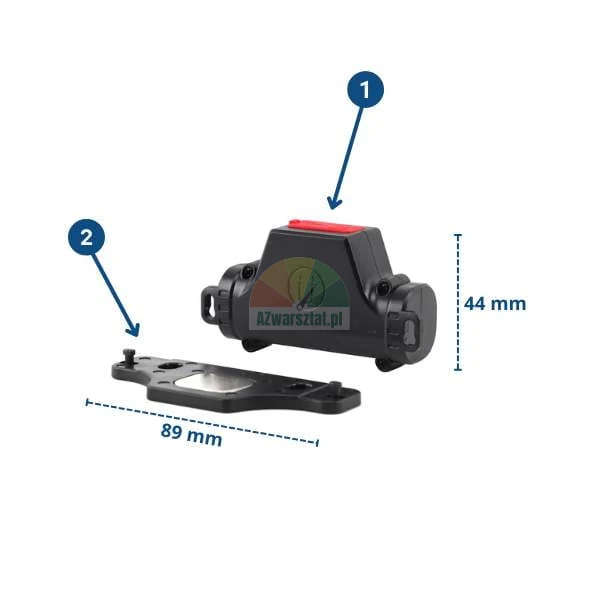

- Consists of two components shown in the drawings:
- number 2 - attached by means of double-sided tape (supplied) FIXED to the wheel balancer
- number 1 - a removable part for charging the battery.

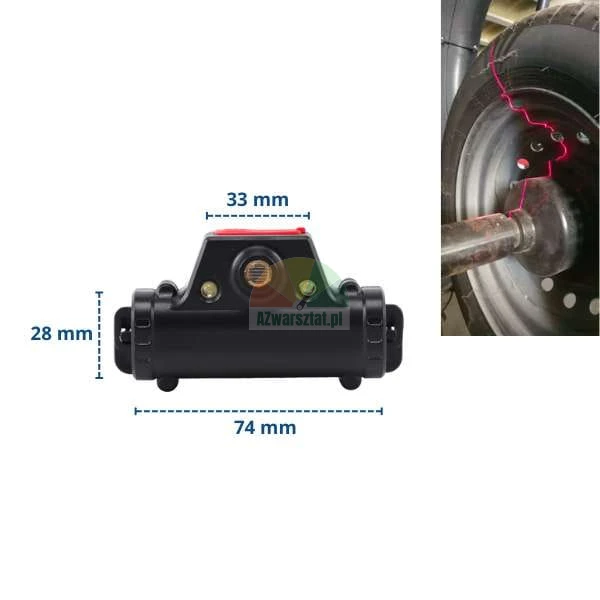

Thanks to its compact dimensions of 74 mm x 28 mm x 33 mm, the laser pointer is easy to install and does not take up much space. Installation is quick and requires no specialist knowledge.
Key features:
- Laser wavelength: 650 nm (red)
- Battery: Lithium 18650 1200 mAh 3.7 V
- Operating time: Up to 800 uses on a full charge
- Charging time: 2.5 hours

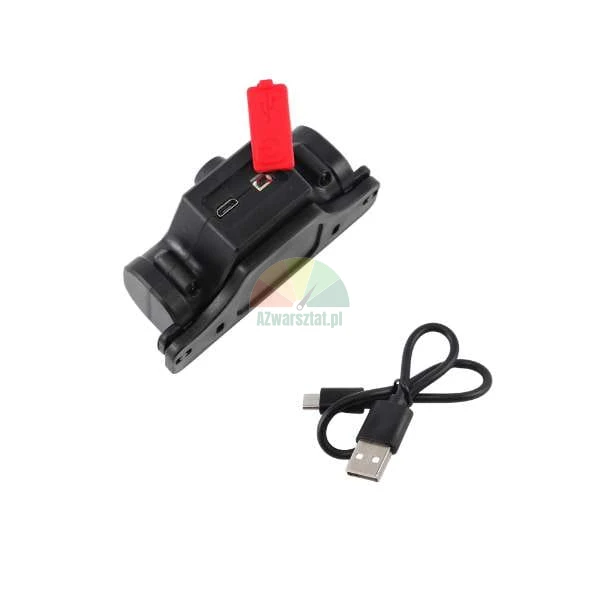

- Charging: USB
- Operating temperature: -35°C to 65°C
- Low energy consumption: Laser: 10 mA, Laser + LED: 50 mA
Main advantages:
- Precise indication of the weight placement
- Easy installation and operation
- Low price compared to other solutions
- Increased efficiency in the workshop
- Long service life due to low energy consumption
Application:
Ideal for wheel balancers where precise marking of the weight location is crucial. Thanks to its easy installation and intuitive operation, the laser pointer significantly improves the quality and efficiency of work in the workshop.
Product safety
Manufacturer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
