ATH-Heinl replacement: Comfort Lift 21 non-return valve
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: ath-119
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
ATH-Heinl replacement: Comfort Lift 21 check valve
The Comfort Lift 21 check valve is a high-quality replacement for the ATH-Heinl Comfort Lift 21 range of two-post hydraulic vehicle lifts. The product is designed for models manufactured after 2021 — identifiable by the letter at the beginning of the serial number.
An ideal choice for garages and workshops looking for a reliable alternative to original ATH parts. The valve ensures leak-free, durable and safe operation of the hydraulic system, even under heavy use.
Compatibility:
Fits ATH Comfort Lift 21 vehicle lift models, including:
- ATH Comfort Lift 2.35
- ATH Comfort Lift 2.40
- ATH Comfort Lift 2.50
- ATH Comfort Lift 2.50-3D
- ATH Comfort Lift 2.65
Features and benefits:
- High-quality replacement for the original ATH-Heinl valve
- Precision machined from durable materials
- Resistant to high pressure and intensive use
- Ensures correct functioning of the hydraulic system
- Easy to install without the need for special tools
- Fully compatible with original dimensions and threads
The valve has a standard external thread and two flow ports in the body. Its dimensions correspond to the original specifications used on ATH lifts, guaranteeing trouble-free replacement and full functionality.
Application:
This product is designed for two-post hydraulic vehicle lifts used in workshops for lifting passenger and commercial vehicles. It performs reliably both in everyday use and under intensive working conditions.
How to check compatibility?
Check the nameplate of the unit — if the serial number starts with a letter (e.g. A123456), your lift is compatible.
See example of nameplate
When you choose this valve, you get proven quality at a great price — without compromising on safety and durability.
Product photo:

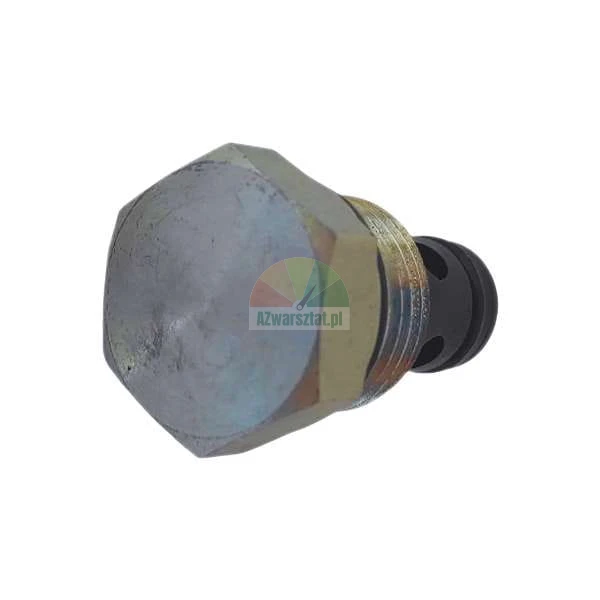

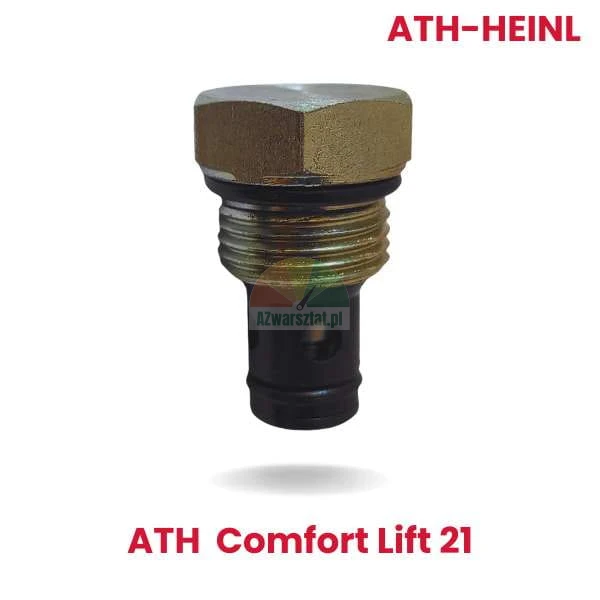

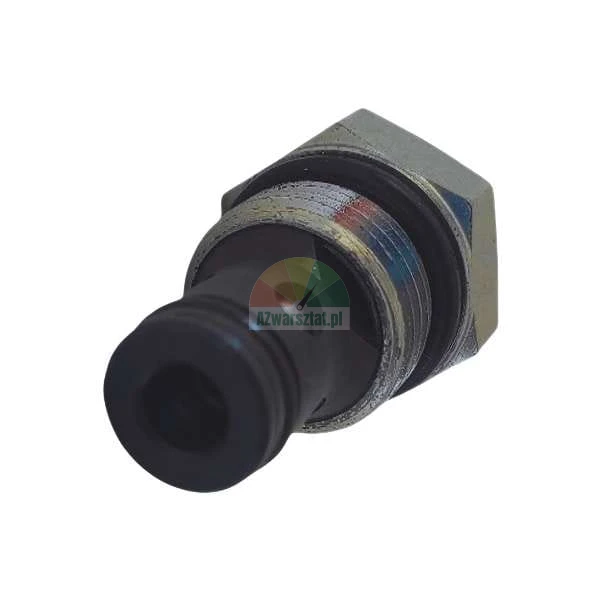

Pictured: the Comfort Lift 21 check valve — two flow ports and external thread visible. Dimensions correspond to the original specifications used on ATH lifts.
Product safety
Manufacturer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Importer
LIVRE RAPIDEMENT SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Osiedle Mieszka I-go 4/46
26-340 Drzewica, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
It pairs well
ATH-Heinl replacement: Flex Lift solenoid pneumatic valve (DC24), DSH3000, SH5000, SH5000HA
ATH-Heinl replacement: Electromagnetic pneumatic valve Four-Post Lifts, Flex Lift, SH5000, DSH3000
ATH-Heinl replacement: quick-release valve, relief valve + connector (Type A3 Aluminium) M32, M52, M72, M72Z
ATH-Heinl replacement: Heavy-duty quick-release, rebound relief valve, set (Type I) M32, M52, M72, M72Z
ATH-Heinl replacement: Heavy-duty quick-release, rebate relief valve + connector (Type J) M32, M52, M72, M72Z
ATH-Heinl replacement: Handle with valve for M32, M52, M72, M72Z assemblers
ATH-Heinl replacement: lowering valve with emergency lowering button H1, H3, Comfort Lift, Comfort Lift 21
ATH-Heinl replacement: lowering valve with emergency lowering screw H1, H3, Comfort Lift, Comfort Lift 21
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)
The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?
- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
Can I return or exchange the part if it doesn't fit?
If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.
For the return to be accepted, the part must:
- be unused and undamaged,
- show no signs of installation,
- be sent back in its original or appropriately secured packaging.
We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
