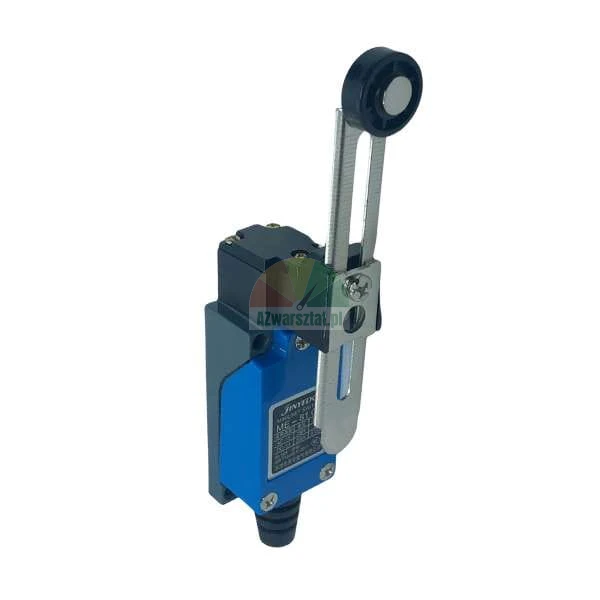

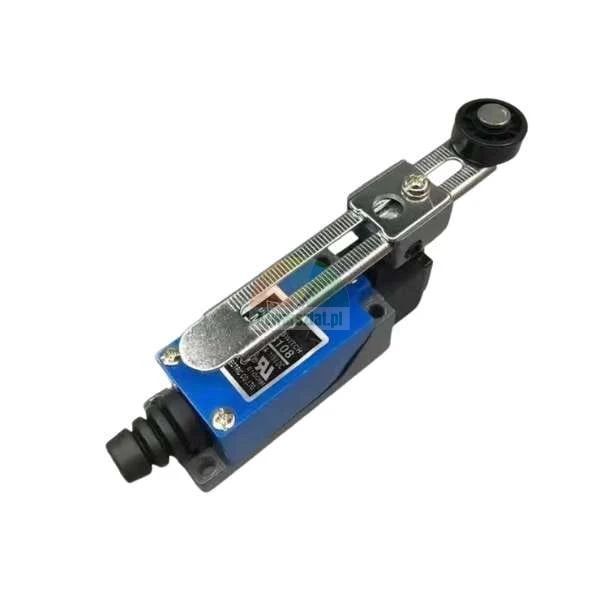

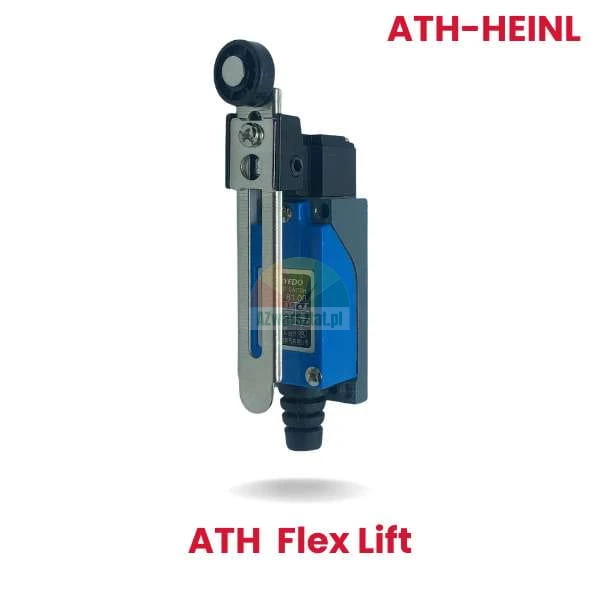

ATH-Heinl replacement: Flex Lift limit switch

The Flex Lift limit switch is a key safety component on ATH-Heinl brand car lifts such as the Flex Lift, Aristo or Pure Lift. It is responsible for automatically stopping or changing the direction of movement of the lift arms, protecting the mechanism from damage and ensuring precise operation.

The replacement fits ATH-Flex Lift models perfectly - no modifications are required. A reliable solution for workshops that value safety and continuity.

Key features:

Compatibility: ATH-Flex Lift, Aristo, Pure Lift
Function: Automatic stop or change of direction
Safety: Protection against overload and mechanical damage
High build quality: Robust metal and plastic construction
Precise mechanism: Equipped with a roller for smooth operation
Easy to install: Fits in place of the original switch

Dimensions (based on photo):

Overall length with lever: approx. 120 mm
Width of body: approx. 30 mm
Housing height: approx. 40 mm
Adjustment range of lever: approx. 30 mm

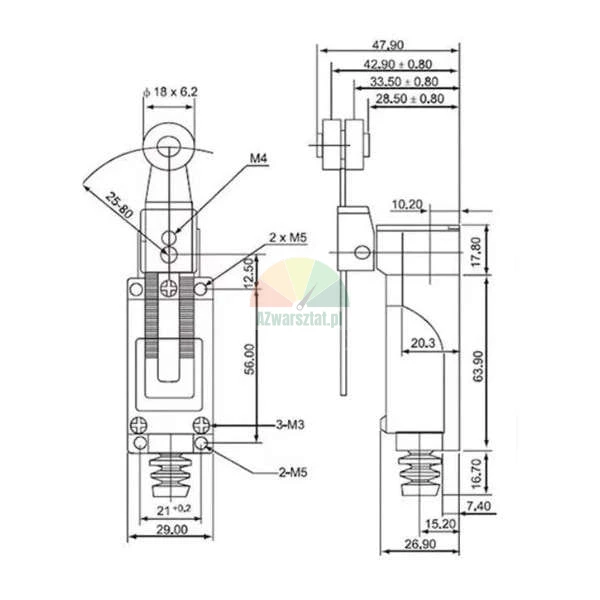

Wyłącznik krańcowy Flex Lift - wymiary
The photo shows a limit switch with lever length approx. 120 mm, body dimensions 30 x 40 mm.

The switch has mounting holes for quick and stable installation in place of a worn or damaged component. Ideal for use in professional automotive workshops.

Application:

The product is suitable for use on ATH-Heinl car lifts, particularly the Flex Lift series. It can also be used on other workshop equipment requiring a precision limit switch.

Opt for a proven replacement - ensure safety, reliability and a long service life for your device.
