ATH-Heinl replacement: Wheel balancer wheel guard limit switch

High-quality limit switch designed as a replacement for the original ATH-Heinl part. Compatible with popular wheel balancer models: ATH 530, 1530, 800, 1580, 1200, 1590. Ensures safe and precise operation of the wheel guard, protecting the machine from mechanical damage.

This replacement part meets all the technical requirements of the original — without compromising on durability, safety and reliability. Ideal for heavy-duty workshops.

Product features:

Type: micro limit switch
Model: Z-15GQ22-B
Actuation type: mechanical, with threaded pin and roller
Material: metal + high-quality plastic
Construction: robust, wear-resistant

Technical characteristics:

Operating voltage: up to 380 V AC / 250 V DC
Current carrying capacity: up to 15 A
Contact type: 1NO + 1NC (normally open and normally closed)
Utilisation category: AC-15, DC-13
Dimensions: body length 49 mm, overall height with roller approx. 65 mm

Application:

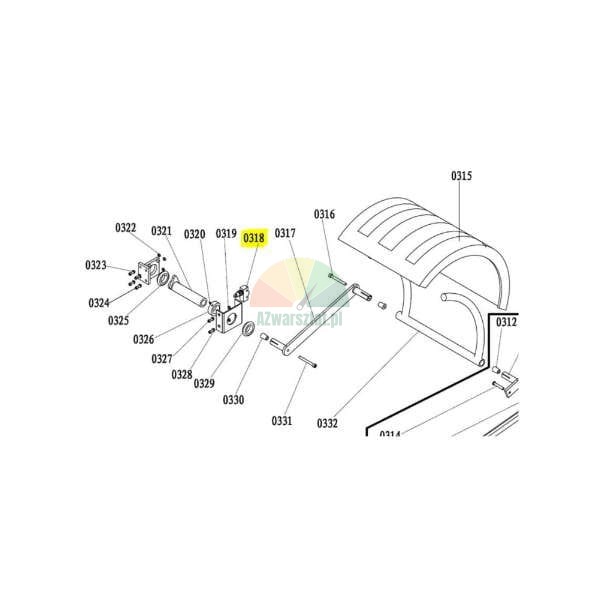

The switch is used in the wheel guards of wheel balancers. Its function is to automatically stop the machine when the guard is opened, which significantly increases operator safety.

Thanks to its precise manufacture and robust materials, the switch ensures long and trouble-free operation, even under harsh workshop conditions.

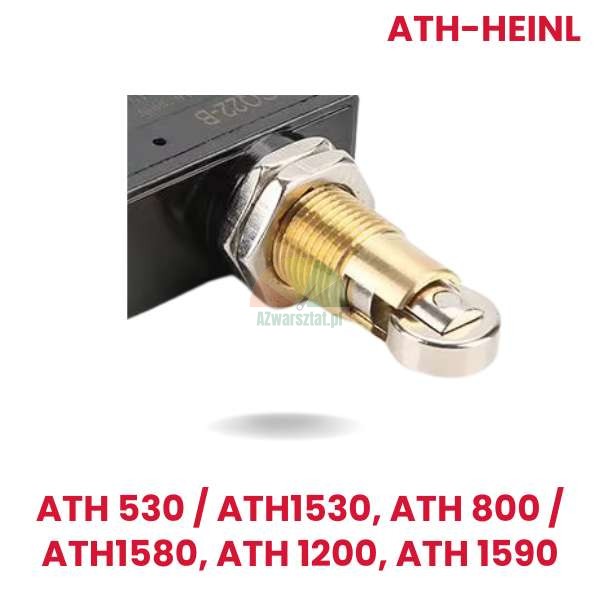

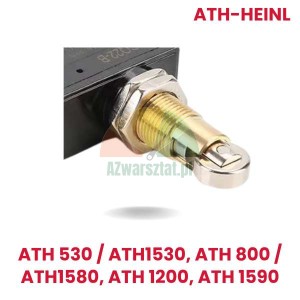

Compatible ATH-Heinl wheel balancer models:

ATH 530
ATH 1530
ATH 800
ATH 1580
ATH 1200
ATH 1590

By choosing this replacement part, you ensure your wheel balancer's continuity of operation, operational safety and savings thanks to the attractive price and high-quality workmanship.

Product photo:

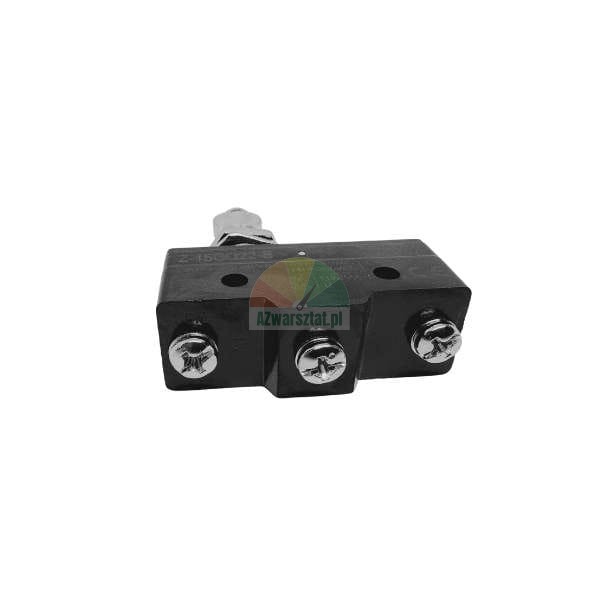

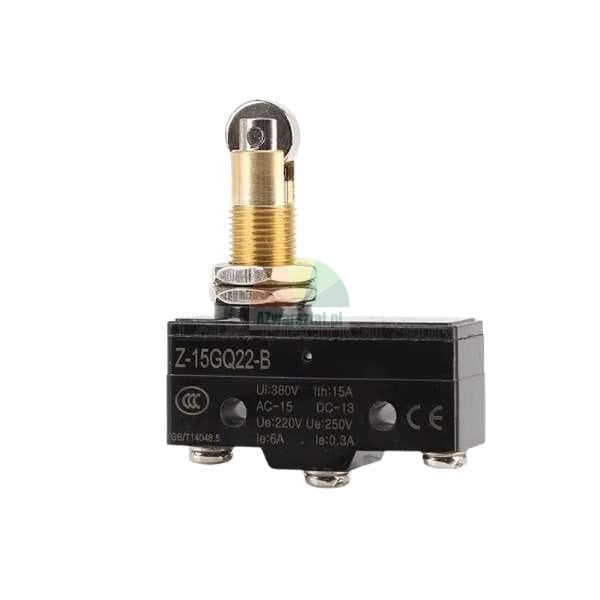

Pictured is the Z-15GQ22-B micro limit switch with threaded pin and roller. Dimensions: body length 49 mm, overall height with roller approx. 65 mm.

Z-15GQ22-B limit switch for ATH-Heinl wheel balancer
