Replacement ATH-Heinl: 13.155 mm steel cable for ATH 4.55A / ATH-Four Lift 50HA four-column linkage
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-LINA-0001
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

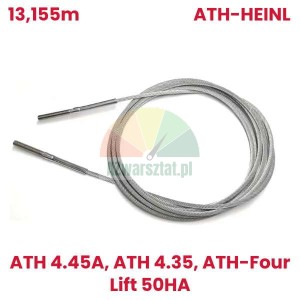

13,155 mm steel cable for ATH 4.55A, ATH 4.35 and ATH-Four Lift 50HA car lifts

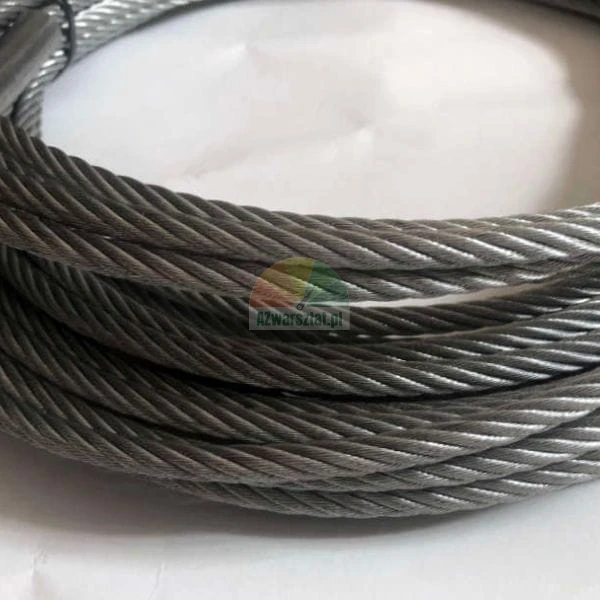

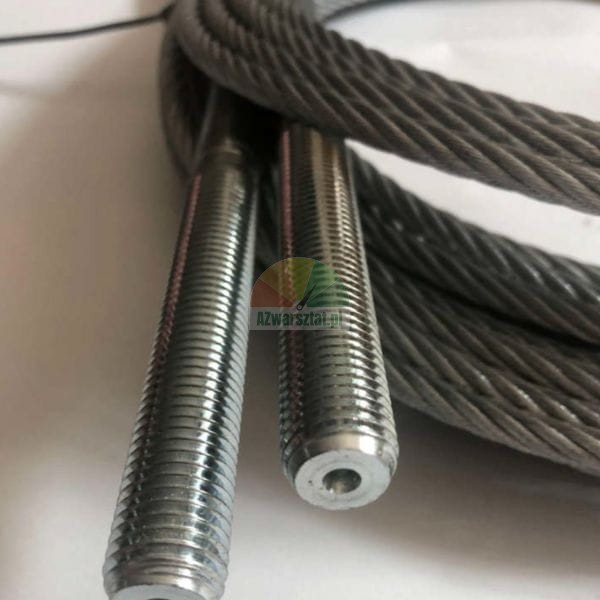

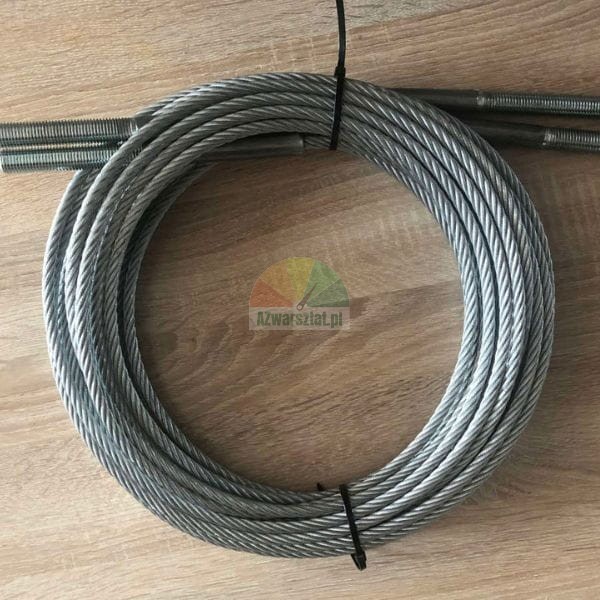

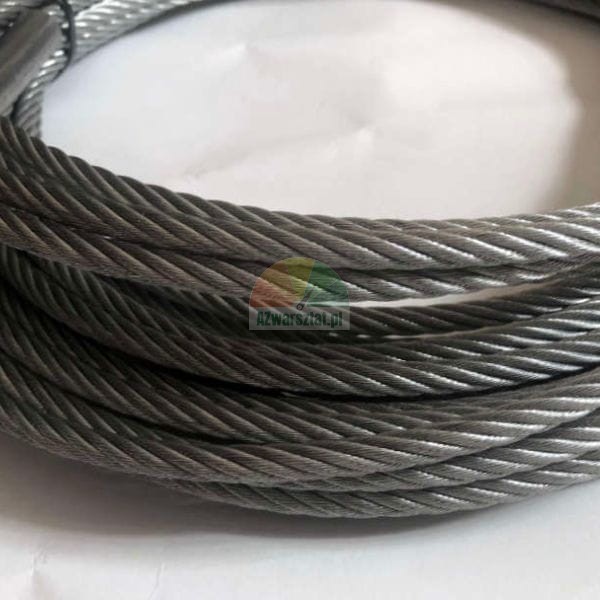

A 13,155 mm steel cable for the ATH 4.55A car lift. Made from high-quality materials, it provides durability, reliability and safety during use.
Key features:
- Length: 13,155 mm
- Diameter: 10 mm
- Compatibility: ATH 4.55A car lift, ATH 4.35, ATH-Four Lift 50HA
- Material: High-strength steel
- High durability and damage resistance
Important information: The product is supplied with an EU Declaration of Conformity and meets the requirements of the Machinery Directive 2006/42/EC and the harmonised standard EN ISO 12100.

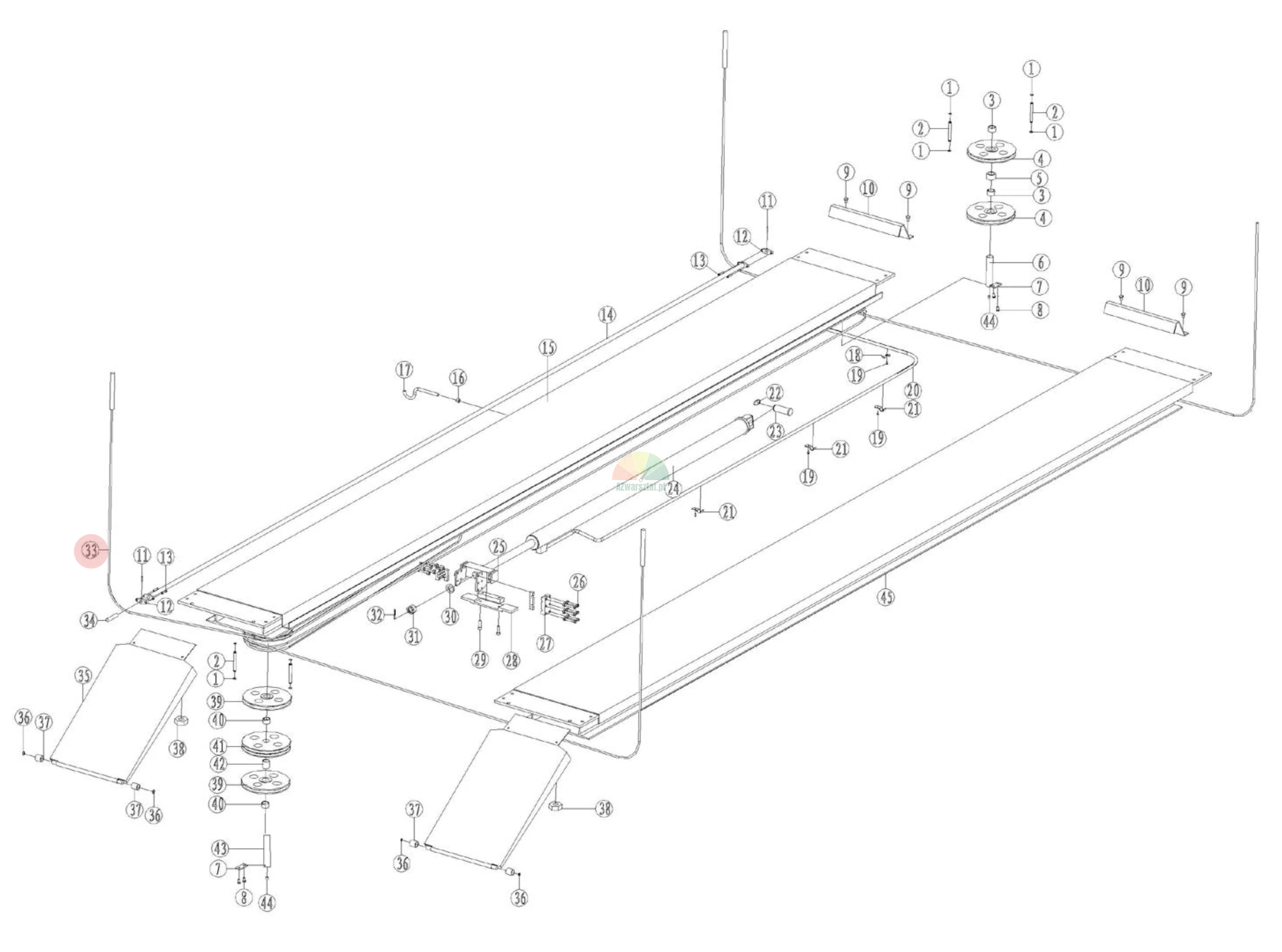

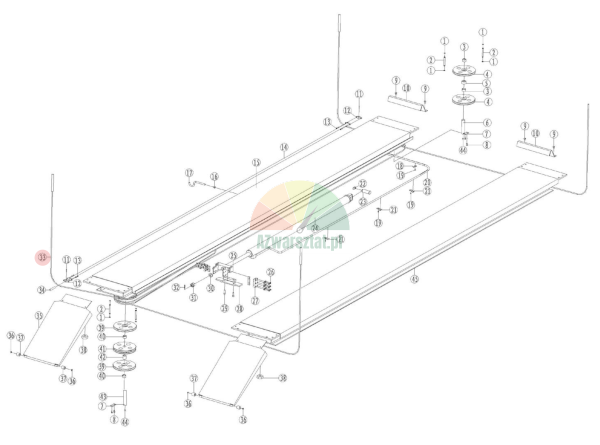

- Product marked on the diagram as item 33
- Availability: Check availability in shop
Application:
The steel cable is a key element of the lifting mechanism, ensuring that vehicles are raised evenly and safely. Ideal for replacing worn or damaged cables on ATH 4.55A two-post lifts, ensuring their full functionality. Replacing the cable with a new one is recommended if there are visible signs of wear, such as abrasion or deformation. We recommend regular inspection of the lifting equipment by a competent person, in accordance with applicable regulations and EN ISO 9927-1.
Why choose this product?
- Original spare part, ideally suited to the ATH 4.55A.
- High-quality workmanship for a long service life.
- Easy installation in accordance with the manufacturer's instructions.
Product safety
Certificates and safety warnings
- Certificate of Steel Cables for Car Lift, Community Directives 2006/42/WE, Harmonized standards and other technical specifications: PN-EN-ISO 12100-1-2012
Manufacturer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
It pairs well
ATH-Heinl replacement: H1, H3, H3(2.50), Comfort Lift, Flex Lift, 4.35(A), 4.55(A), Four-Post Lifts lowering valve
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)
The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?
- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
Can I return or exchange the part if it doesn't fit?
If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.
For the return to be accepted, the part must:
- be unused and undamaged,
- show no signs of installation,
- be sent back in its original or appropriately secured packaging.
We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
