Lowering valve for two-column linkage - replacement for ATH-Heinl (H1, H3, Comfort, Flex, Four-Post)

High-quality replacement lowering valve for ATH-Heinl brand twin-column lifts. The product is designed for safe, smooth and controlled operation and is made from durable, corrosion-resistant materials to ensure long life and reliability in everyday use.

A full-quality replacement for the original ATH-Heinl part - fits models: H1, H3, H3(2.50), Comfort Lift (up to 2021), Flex Lift, ATH 4.35(A), ATH 4.55(A), Four-Post Lifts.

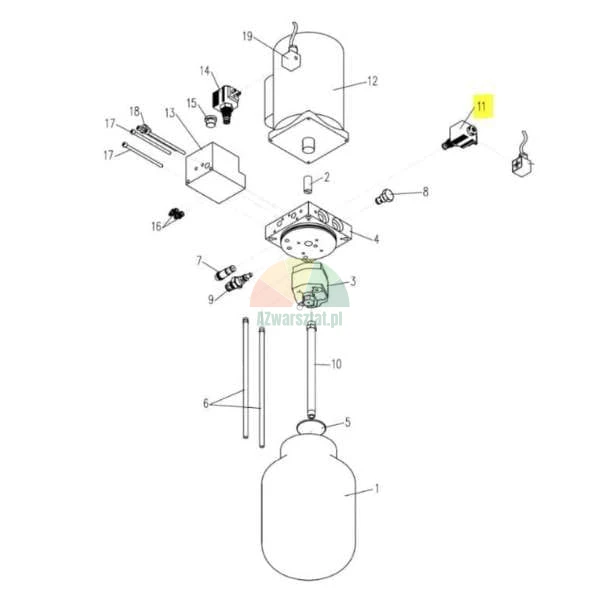

Ideal for garages that want fast service and reliable spare parts without the costly purchase of an original. The valve corresponds to position No. 11 on the technical diagram for the hydraulic system of ATH-Heinl lifts.

The valve is easy to install and does not require modifications to existing components. Thanks to its precise design, it ensures a stable and safe lowering of the vehicle, which significantly increases comfort and safety in the workshop.

Compatible with ATH-Heinl models:

H1 models (approx. 2007-2010, plastic control box):

Serial numbers starting with: 219XXX, 218XXX, 212XXX etc.

ATH 2.28H, 2.32H, 2.38H, 2.40H
ATH 2.32/380 HL, 2.42/380 HL
ATH 2.32/450 HL, 2.42/450 HL

Photo of the H1 control box:
Skrzynka sterująca H1

Example of nameplate H1:
Tabliczka H1

H3 models:

ATH 2.28H3 - 2.40H3
ATH 2.28HL3 - 2.40HL3
ATH 2.28HX3 - 2.40HX3

Example of H3 nameplate:
Tabliczka H3

Comfort Lift models (up to 2021):

No letter in the serial number at the beginning.

ATH Comfort Lift 2.30 - 2.40 (L and X versions)
MPPLA 2.35 (Orange)

Example of Comfort nameplate:
Tabliczka Comfort

Flex Lift models:

ATH-Flex Lift 30, 30Z

Four Post Lifts models:

ATH-Four Lift 55

Replacing the lowering valve is one of the most common maintenance tasks on two-column lifts. With this replacement, you can quickly and effectively restore the efficiency of your unit without incurring high costs.

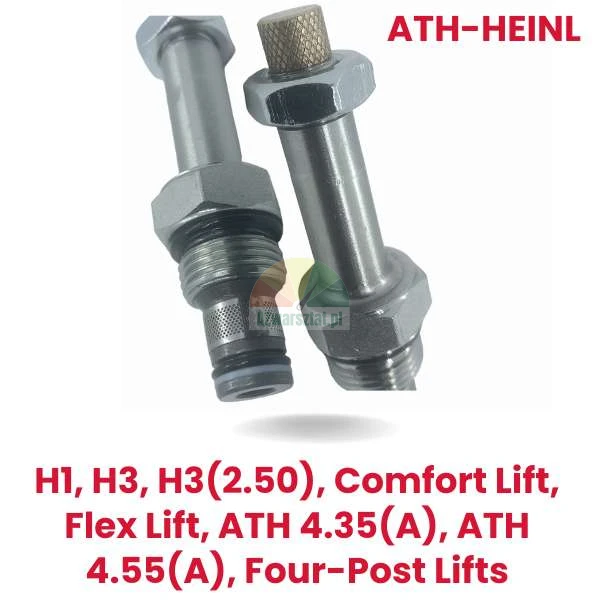

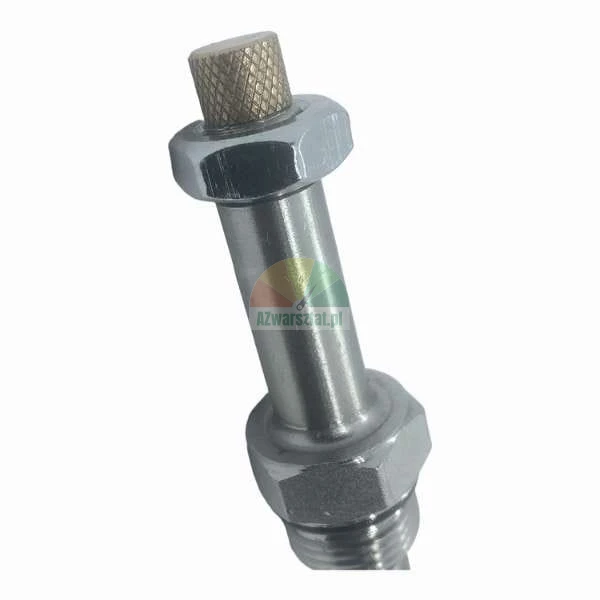

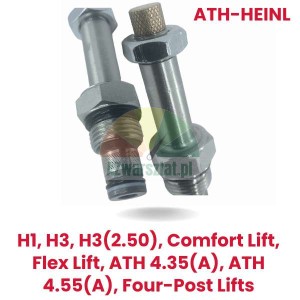

Product picture:

Zawór opuszczania ATH-Heinl – zamiennik
Dimensions: overall length approx. 90 mm, thread M18x1.5, stem diameter approx. 12 mm

Product ready for installation. If you have any doubts about compatibility - please contact us and our technical advisors will help you find the right valve for your lift model.

Manufacturer

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

+48534920100 slawek@graf-art.pl

Importer

LIVRE RAPIDEMENT SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ

Osiedle Mieszka I-go 4/46

26-340 Drzewica, Poland

+48 781 455 169 info@1688poland.com

Number of ratings: 0

Rate and review

Security

You can feel completely safe when shopping in our online store.

Check

Delivery

Fast delivery via DPD. Your package will arrive within 3 days.

Check

Payment

Among the various payment methods, choose the best option for yourself.

Check

Technical consulting

Ask our specialist. We'll help.

shop@azworkshop.eu

Free shipping

Free shipping for purchases of 50€ or more.

Do you need help?

We are here to make your choice easier and speed up the repair.

Module informational graphic — Want to know more? Check out our knowledge base.
**Go to the blog.**

Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.

📞 Call or send a message—we'll recommend the best solution:

+48 534 920 100

Call charges according to your operator's rates.

Frequently Asked Questions

What cables do I need for my two-post lift?

Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.

Additionally, to correctly select the rope, you need to provide the following technical parameters:

Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
Thread – diameter (e.g., M16)
Thread – length – length of the threaded section (e.g., 14 cm)

The drawing below shows the parameters that must be provided when ordering the rope:
Ropes parameter

What is my machine's model?

Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.

Can I return or exchange the part if it doesn't fit?

Yes, of course.

If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.

For the return to be accepted, the part must:

be unused and undamaged,
show no signs of installation,
be sent back in its original or appropriately secured packaging.

We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
