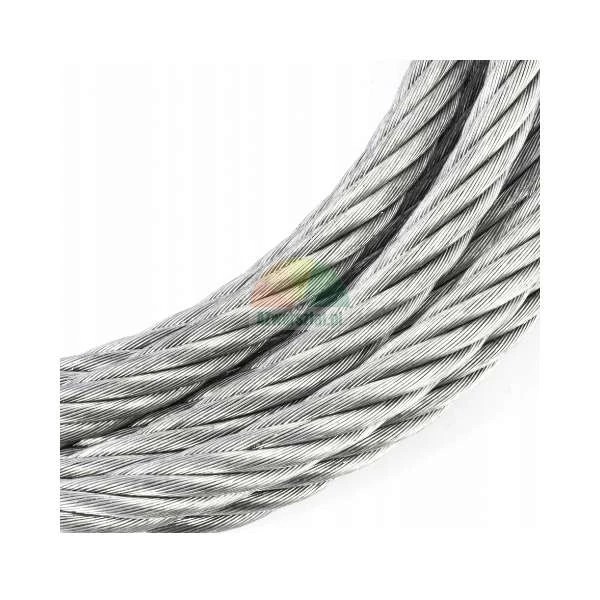

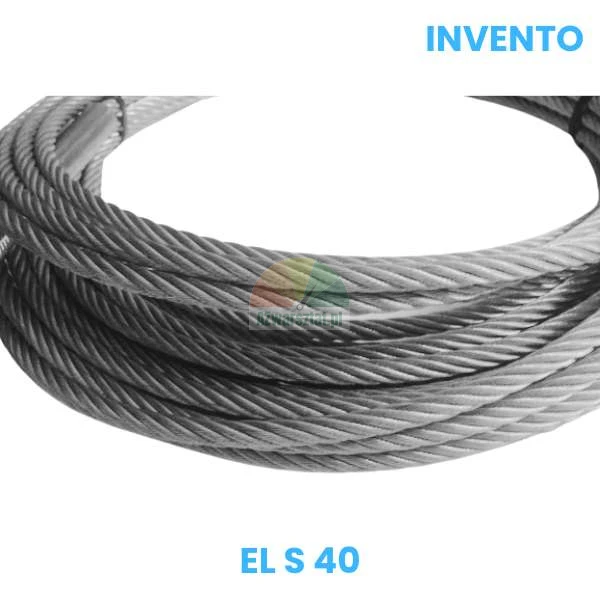

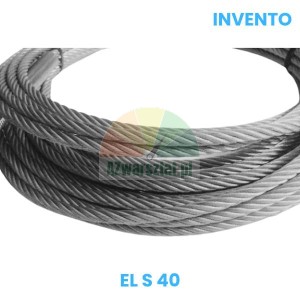

Invento replacement: steel lifting cable EL S 40
High-quality replacement steel levelling (synchronisation) cable for the Invento EL S 40 two-post lift, the ideal solution for professional workshops to ensure reliable arm synchronisation and work safety.
Fully compatible with Invento original product ZQI000007 (EAN: 5906288306108). Overall length: 887 cm. Replacement with identical parameters, ready to install.
Why is this cable a must-have in your workshop?

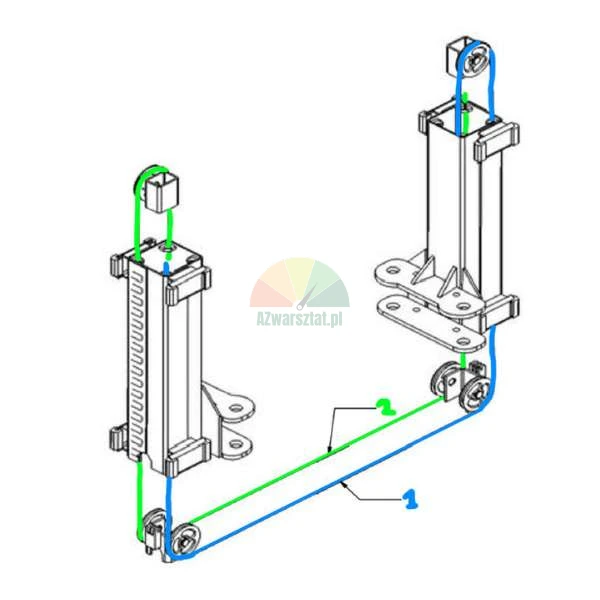

- Guarantees even operation of the arms: It is responsible for synchronising the lift, preventing the vehicle from tilting and ensuring stability even with a load capacity of 4,000 kg.
- Safety first: Protects against uneven lifting, extends the service life of the lift and minimises the risk of hydraulic failure.
- Fits perfectly on the Invento EL S 40 and EL S40M: Automatic (400V) or semi-automatic (230V) - a universal replacement for models with a low threshold to protect the cable.
Certified quality! The cable is manufactured in accordance with applicable European standards. It complies with the Machinery Directive 2006/42/EC and EN ISO 12100 - it will pass inspection by a competent person, in accordance with applicable regulations and EN ISO 9927-1, without any problems!
Technical specifications of the cable and lift
| Parameter | Value |
|---|---|
| Cable length | 887 cm |
| Material | High-strength steel |
| Lifting capacity | 4,000 kg |
| Compatibility | Invento EL S 40 / EL S40M |
Important purchase information
The price is for ONE cable! There are TWO units in the lift. It is best to replace them in pairs - buy two to maintain perfect synchronisation and safety. EU Declaration of Conformity included!
Ready for fast shipping! A replacement with the highest durability, tested under workshop conditions. Give your Invento EL S 40 lift a second life - stability, safety and zero downtime.
Product safety
Manufacturer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Importer
LIVRE RAPIDEMENT SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Osiedle Mieszka I-go 4/46
26-340 Drzewica, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
It pairs well
Invento replacement: plastic covers for clamping jaws (4 pieces) TCS 524, TC 720, TC 720 2V, TC 722
Invento replacement: TC 720, TC 720 2V, TC 724 2V, TC 724 MI footplate cover
Replacement Invento: covers for assembly table clamps (4 pieces) TC 720, TC 720 2V
Invento replacement: cone - rim hole 5.2cm - 8cm VB350, VB300, VB470, VB510
Replacement Invento: centering cone - rim hole 4.4cm - 6.2cm VB300, VB350, VB470, VB510
Invento replacement: cone set for balancing machines VB300, VB350, VB470, VB510
Replacement Invento: centering cone - rim hole range 7cm -10.5cm VB300, VB350, VB470, VB510
Replacement Invento: centering cone - rim hole range 9.3cm - 13.7cm VB300, VB350, VB470, VB510
Invento replacement: complete valve block - air distributor at pedal TC 724MI
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)
The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?
- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
Can I return or exchange the part if it doesn't fit?
If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.
For the return to be accepted, the part must:
- be unused and undamaged,
- show no signs of installation,
- be sent back in its original or appropriately secured packaging.
We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
