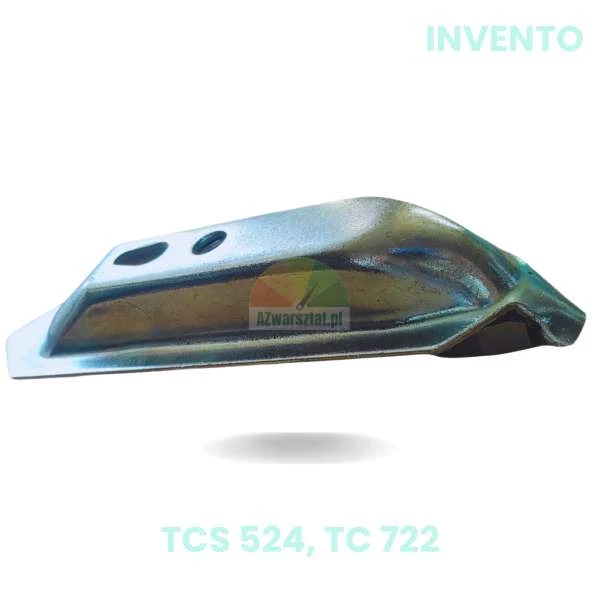

Replacement Invento: Guide bar for assembly jaws TCS 524, TC 722

Secure payment

30 days to return

Fast shipping

€18.57

Shipping costs are not included in the price.

Quantity

pc.

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

``html

Invento replacement: Guide bar for TCS 524, TC 722 assembly jaws - precision and reliability!

High-quality replacement for the mounting jaw guide compatible with INVENTO TCS 524 and TC 722 models. Ideal for professional garages, it ensures stable jaw guidance during tyre fitting and removal, minimising the risk of damage to rims.[1][2]

What makes our replacement guide stand out?

Robust construction: Made from durable galvanised steel, resistant to deformation, corrosion and intensive use in the workshop.[1]
Stable guidance: The specially designed shape guarantees secure jaw guidance, protecting rims and tyres from scratches.[1][6]

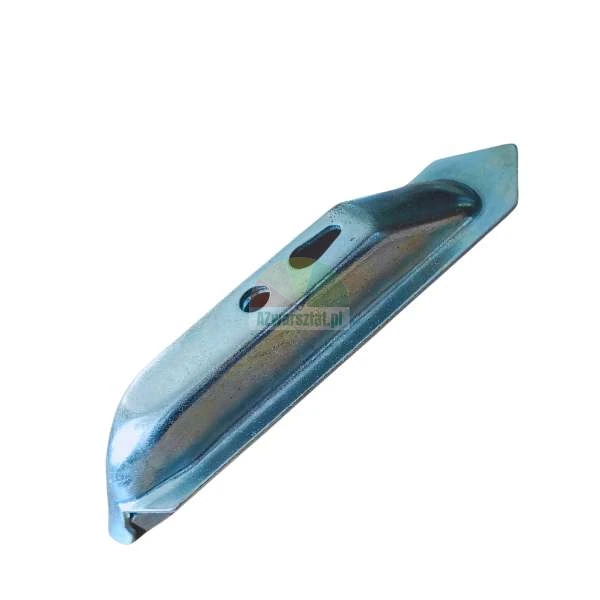

Precise fit: Fits into a table channel with a width of min. 24.5 mm, mounting with two screws with 51 mm spacing. Mounting holes: 12 mm and 23 mm. Dedicated to TCS 524 and TC 722 - check dimensions before purchase![1][2].
Simple installation: Quick and easy, without special tools. Threaded hole for external screw[2].

Exact dimensions:

Overall length: 23 cm
Length to bend: 19 cm
Mounting holes: 12 mm and 23 mm
Screw spacing: 51 mm
Min. channel width: 24.5 mm

Confirmed compatibility: ideal replacement for INVENTO TCS 524 (12″-24″ mounting bracket) and TC 722 assembly machines. Ensures smooth operation with steel and aluminium rims, including RUNFLAT.[1][7][8].

Bet on quality at an attractive price! This guide is a reliable replacement that will prolong the life of your fitter and improve your daily work in the vulcanisation workshop.

```

Manufacturer

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

+48534920100 slawek@graf-art.pl

Importer

LIVRE RAPIDEMENT SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ

Osiedle Mieszka I-go 4/46

26-340 Drzewica, Poland

+48 781 455 169 info@1688poland.com
