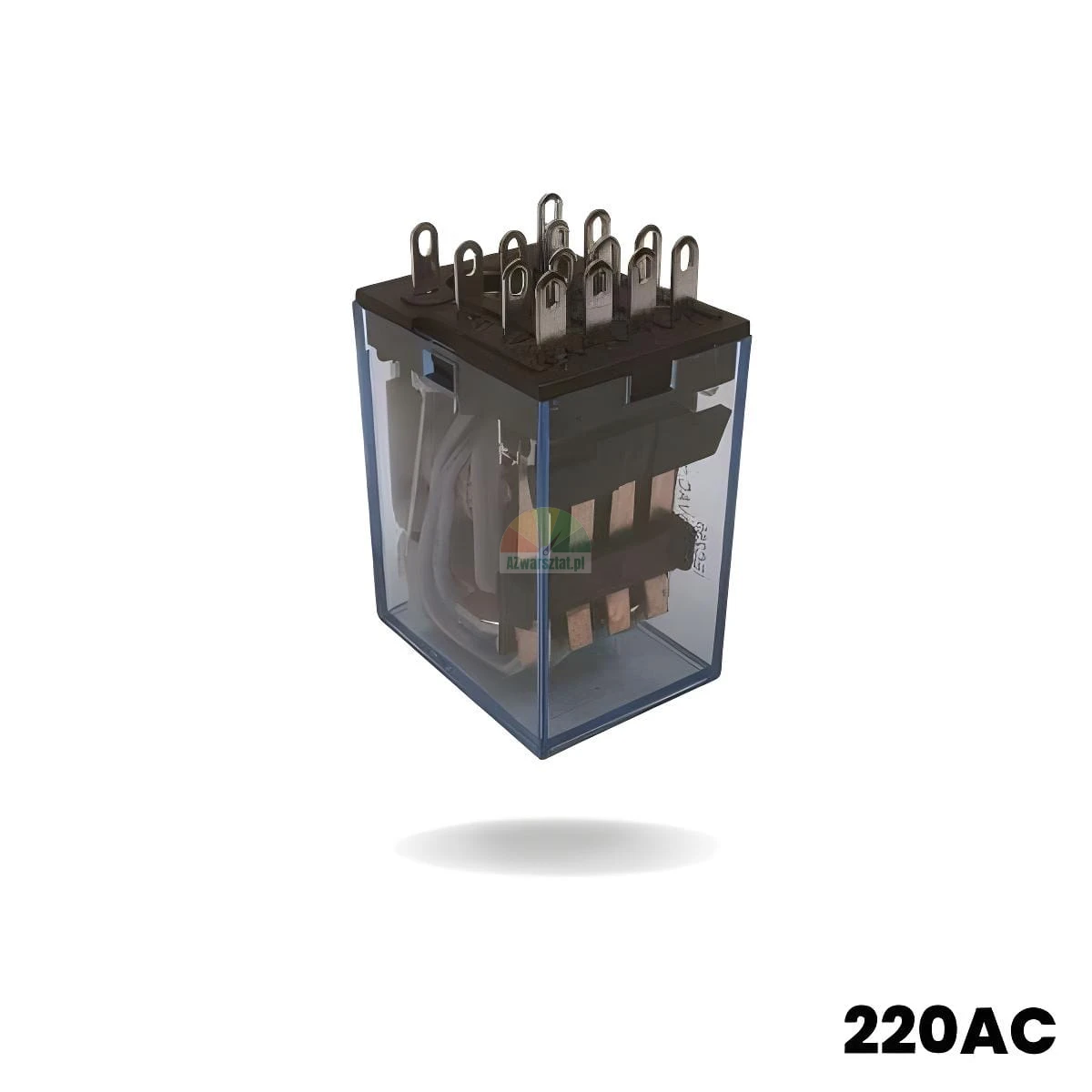

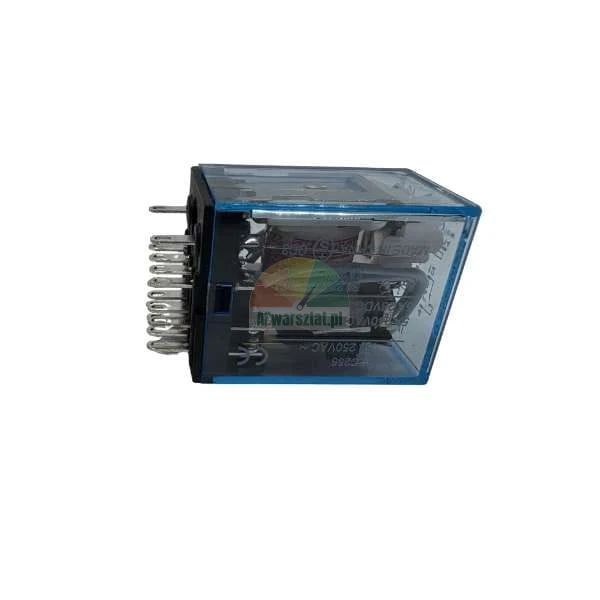

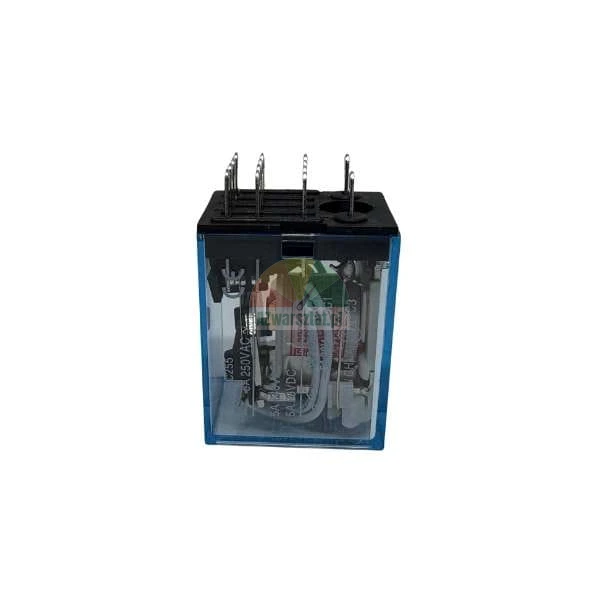

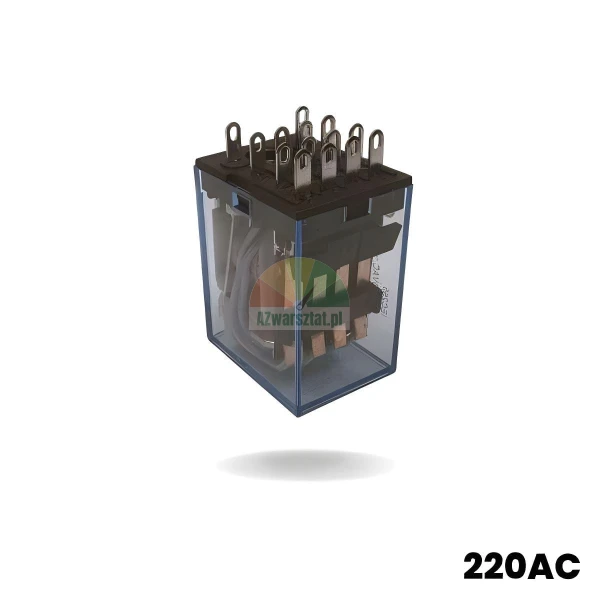

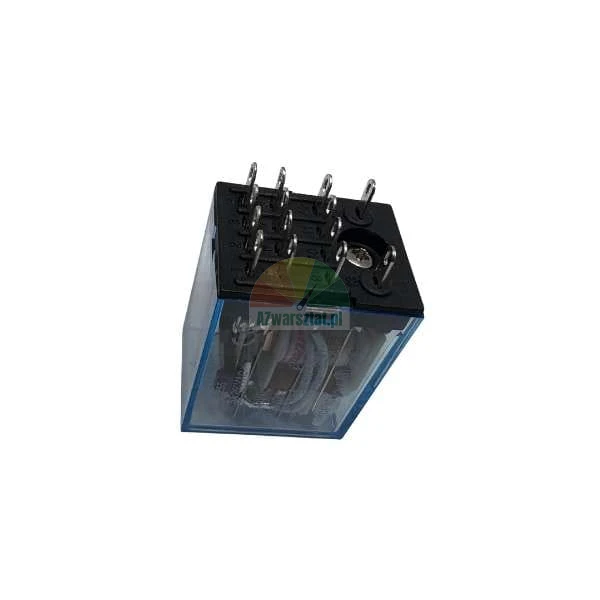

Auxiliary / power relay 220V AC

The 220V AC auxiliary / power relay is a reliable automation component designed for the control and protection of electrical circuits in workshop machines such as car jacks. Thanks to its robust design and high quality workmanship, it ensures safe and stable circuit switching even under intensive use.

The use of the auxiliary relay extends the service life of the main controls, increases the reliability of the automation system and facilitates the upgrade and repair of workshop machines.

Key product features:

Supply/coil voltage: 220-230V AC / 50-60 Hz
Contact load capacity: up to 16A (AC1)
Number of pins: 14
Robust, transparent housing - quick status check
LED indication: indicates the switching status of the relay (on selected models)
Mounting: on a 35 mm DIN rail (EN 60715) or standard connectors - quick and convenient installation
Mechanical endurance: up to 5 million operating cycles
Operating temperature range: -25°C to +50°C
Degree of protection: IP20 - for indoor applications
Compact dimensions: ideal for installation in confined spaces

Relay dimensions:

Height: 33 mm
Width: 26 mm
Depth: 20 mm

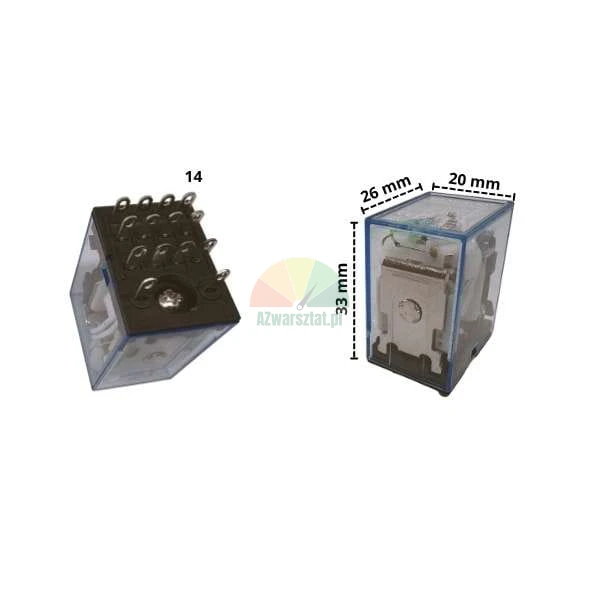

Przekaźnik pomocniczy 220V AC - zdjęcie produktu

The photo shows a 220V AC auxiliary relay with dimensions: height: 33 mm, width: 26 mm, depth: 20 mm, 14 pins.

The compact design allows the relay to be used even in limited space inside the machine, while ensuring ease of installation and replacement.

By choosing a 220V AC auxiliary/power relay from our range, you are investing in a proven solution that will ensure long-lasting and trouble-free operation of your workshop equipment. It is the ideal choice for professionals and those looking for reliable spare parts for their machines.
