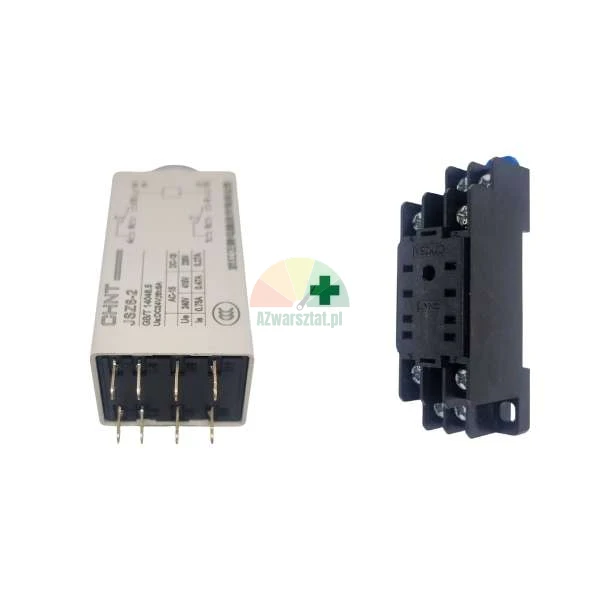

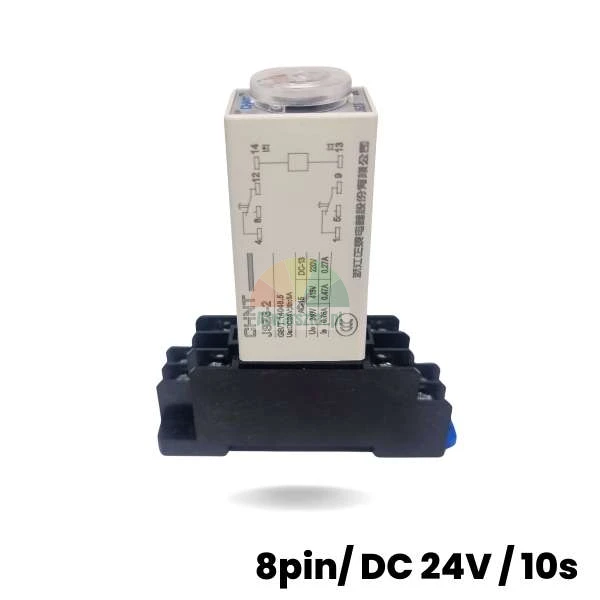

Time relay with DIN rail connection (8pin/24DC/10s)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-CZAS-0005
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
Electronic time relay designed for DIN rail or 8-pin socket mounting. Ideal for industrial automation and workshop applications where precise timing control of equipment is required.
Key features:
-Power supply: 24V AC/DC
-Mounting: DIN rail or 8-pin base
-Time range: up to 10 seconds
-Output: changeover relay contacts
-Function types: on/off delay, cyclic, pulse
-Control: time-setting potentiometer on the housing
Application
- Electrical switchgear
- Industrial automation control cabinets
- Production machinery requiring time control (fans, pumps, actuators, lighting)
- HVAC systems
- Process lines – delayed start-up/shutdown of loads
- Equipment requiring cyclic time control
Why is it worth it?
A time relay enables automatic control of electrical equipment within a set time interval. It allows you to delay the switching on/off of a load, perform cyclic control and generate time pulses. It ensures repeatability and reliable operation in industrial automation systems.
Technical specifications
- Type: Electronic time relay
- Power supply: 24V AC/DC

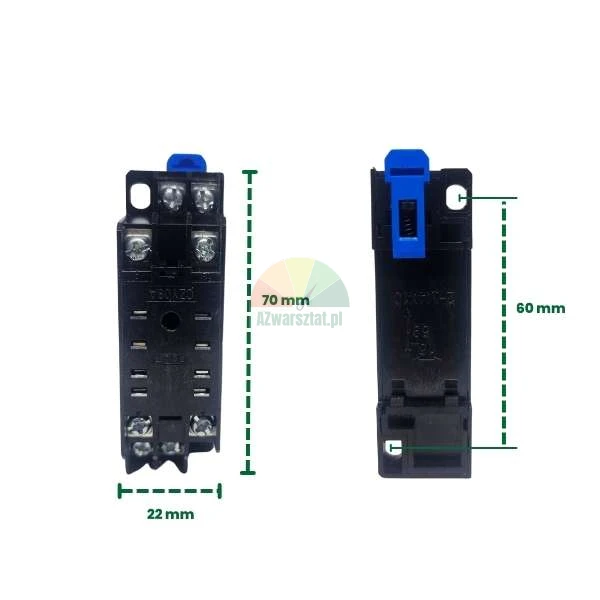

- Mounting: DIN rail or 8-pin base
- Time range: 0.25 seconds to 10 seconds
- Number of functions: 4 (on delay, off delay, cyclic operation, pulse operation)
- Output: changeover contacts

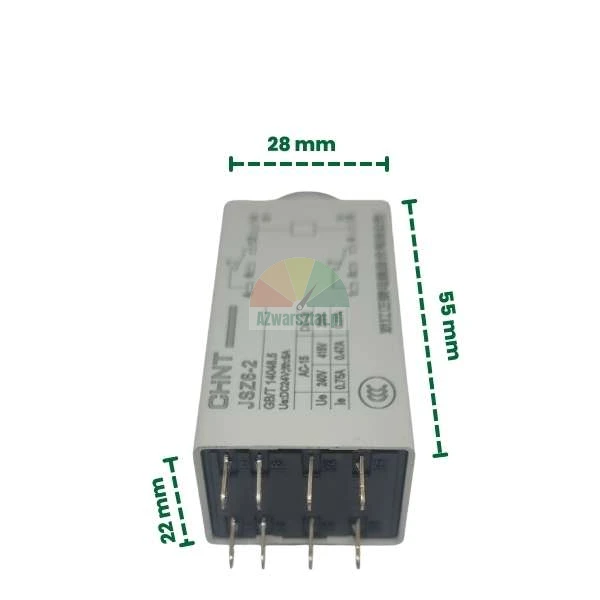

- Number of pins: 8
- Housing type: for installation in switchboards and automation panels

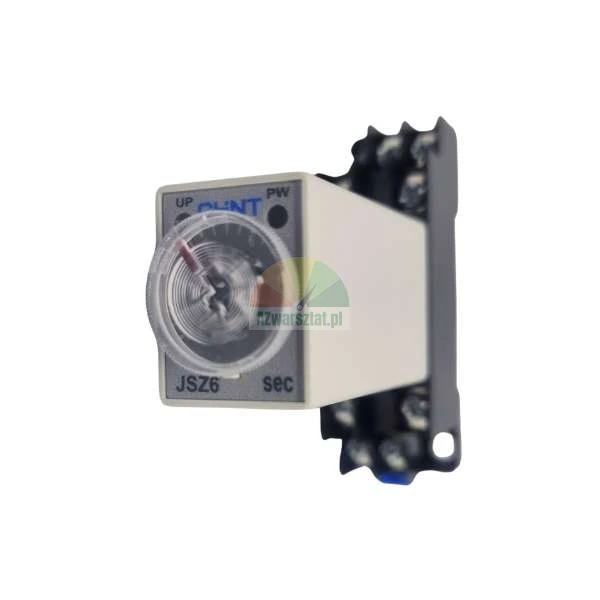

- Control: potentiometer on the housing
- Purpose: industrial automation, time control of equipment
Examples of applications in automotive workshops
- Ventilation control in paint shops
- Automatic switch-off of lighting in service areas
- Control of pumps and actuators in diagnostic equipment
- Precise time control on assembly lines
Opt for reliability and precision in time control – choose a time relay with DIN rail mounting!
