Hydraulic oil reservoir
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-ZBIO-0003
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
Hydraulic oil reservoir for lift pumps
A high-quality hydraulic oil reservoir designed for hydraulic power units, car lift pumps and other workshop equipment. Made from thick, durable and semi-transparent plastic, allowing for very quick and convenient checking of the oil level without having to unscrew the cap.
The reservoir comes complete with a dedicated, leak-proof red-and-black filler cap. It also acts as a breather, which protects the system from fine contaminants and equalises pressure, preventing air from entering the pump.

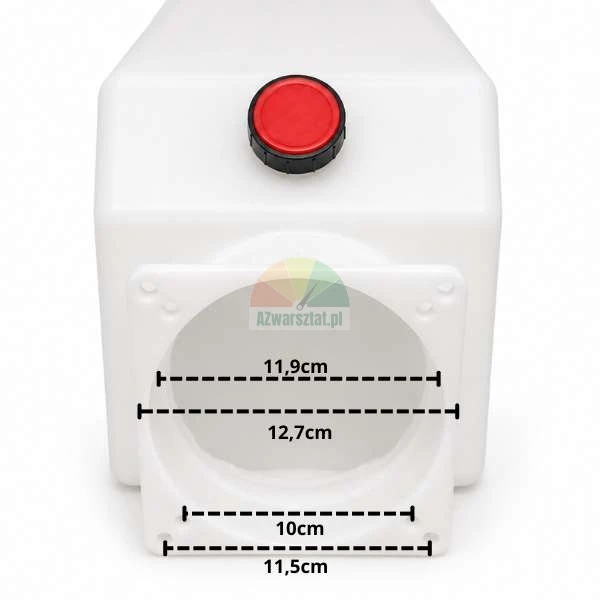

Technical specifications and dimensions:
To ensure a perfect fit and the safety of the system, we recommend carefully checking the dimensions of the flange and the body itself against your existing reservoir before purchasing:
- Overall height: 47 cm
- Height of the body itself (excluding the filler neck): 41.5 cm
- Reservoir width / depth: 18 cm
- Internal diameter of the mounting flange: 11.9 cm
- Outer diameter of the inner flange profile: 12.7 cm
- Spacing between mounting holes: 10 cm x 11.5 cm
The integrated square flange with 4 fixing bolts ensures trouble-free, secure installation and a perfect seal against the valve block, preventing any hydraulic fluid leaks from the system.
We guarantee the highest reliability of the parts available in our shop. The azworkshop.eu team ensures that we supply only tried-and-tested spare parts for vehicle lifts, tyre changers and wheel balancers. We invite you to shop with us!
Product safety
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)
The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?
- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
Can I return or exchange the part if it doesn't fit?
If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.
For the return to be accepted, the part must:
- be unused and undamaged,
- show no signs of installation,
- be sent back in its original or appropriately secured packaging.
We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
