DC24 lift coil
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-CEWK-0010
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

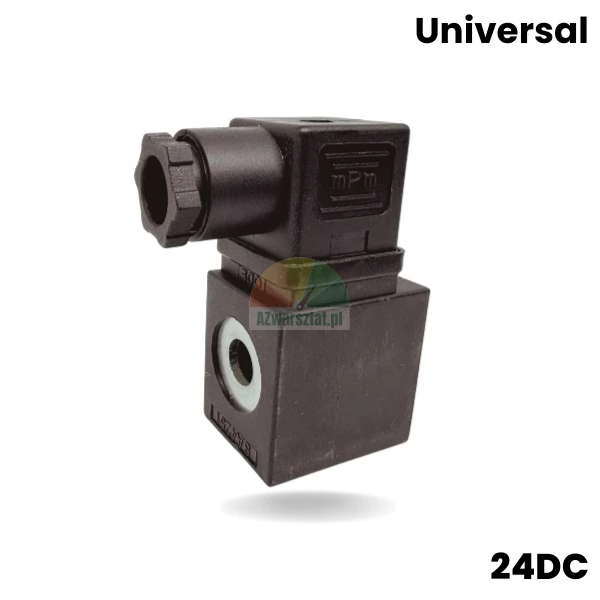

DC24 Lift Coil – A Reliable Component of the Hydraulic System
Ensure trouble-free operation of your workshop machinery with top-quality components from azwarsztat.pl. We offer a professional DC24 lift solenoid, designed for solenoid valves. This is a crucial component of the control system, commonly used in car lifts, tyre changers and wheel balancers.
By choosing a genuine solenoid valve coil, you are investing in the safety and operational continuity of your workshop. Excellent heat dissipation properties and the high quality of the materials used guarantee stable operation even under very heavy machine loads.
Technical Specifications and Dimensions

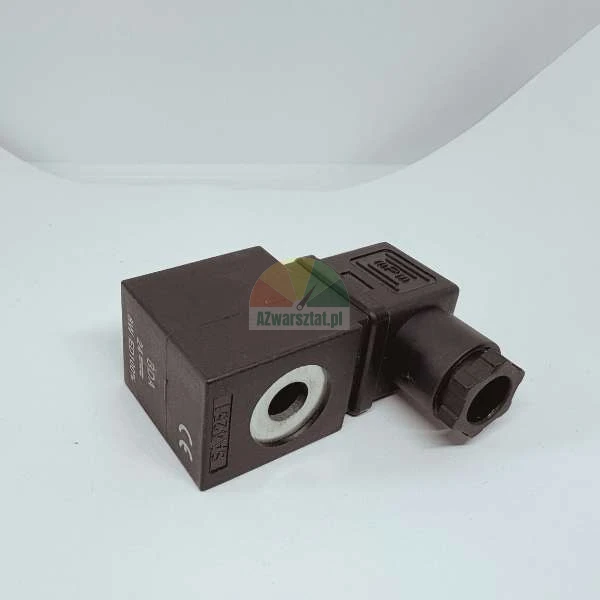

The coil presented here is a model from the renowned ODE BDA series (SA4251), characterised by its high-precision manufacture. Below are the key technical parameters in accordance with the documentation and markings:
- Operating voltage: 24V DC (part of a range including 12V, 24V, 110V, 220V/230V versions)

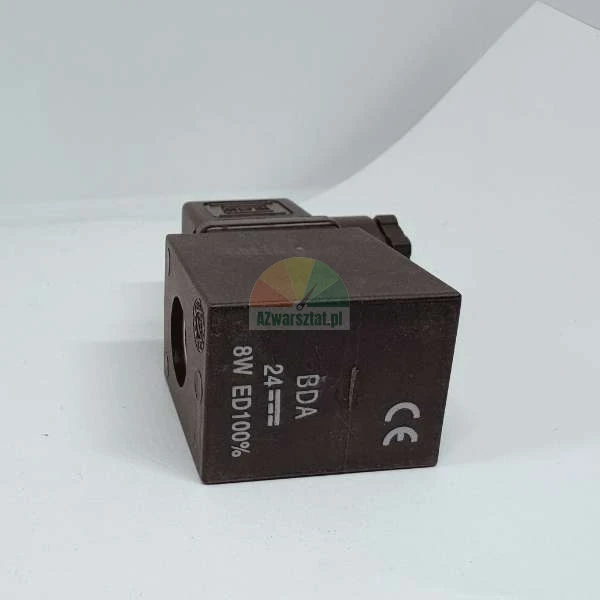

- Electrical parameters of the coil: 14.5VA / 8W

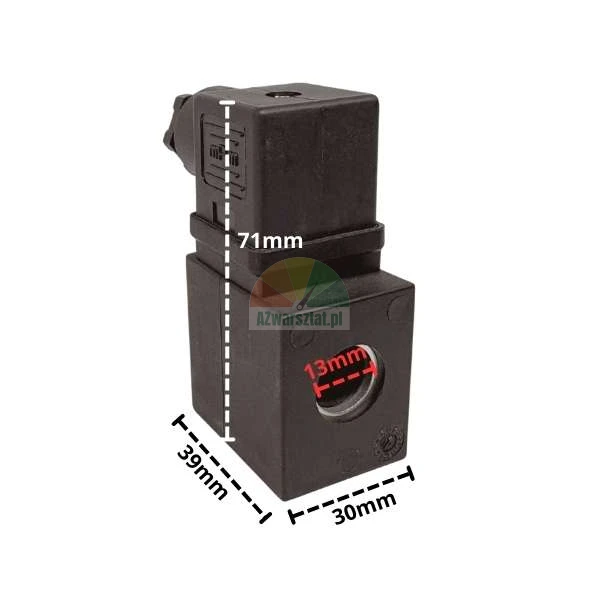

- Internal diameter (large opening): 13 mm

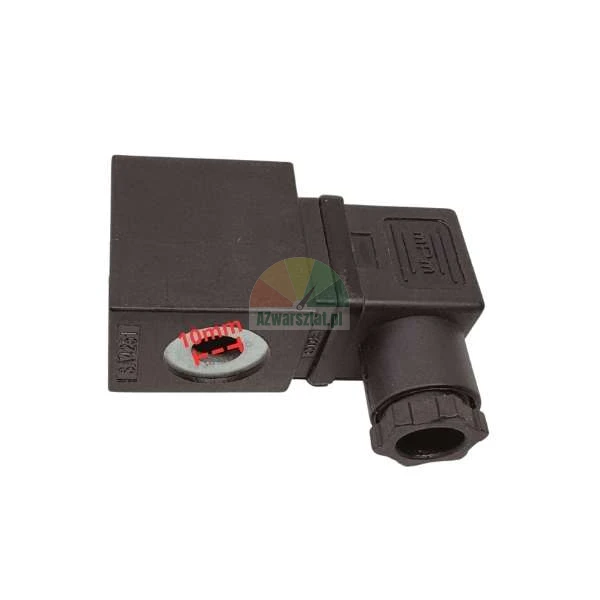

- Internal diameter (small bore): 10 mm
- Coil height: 39 mm
- Overall height (including plug): 71 mm
- Base width: 30 mm
Ready for Use in a Professional Workshop
At the AZ Warsztat online shop, we know how important the details are. The solenoid coil we offer ensures a perfect fit and is immediately ready for use in hydraulic and pneumatic systems. Replacing a worn component with our product is a sure-fire way to quickly restore your jack to full working order and eliminate the risk of costly repair-related downtime.
