13mm / G19mm solenoid valve
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-ZAWO-0018
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

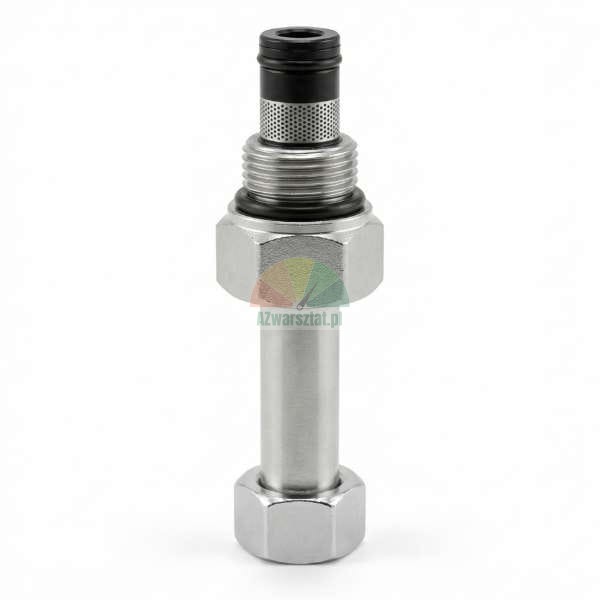

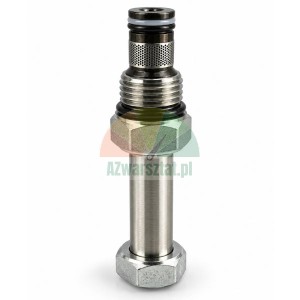

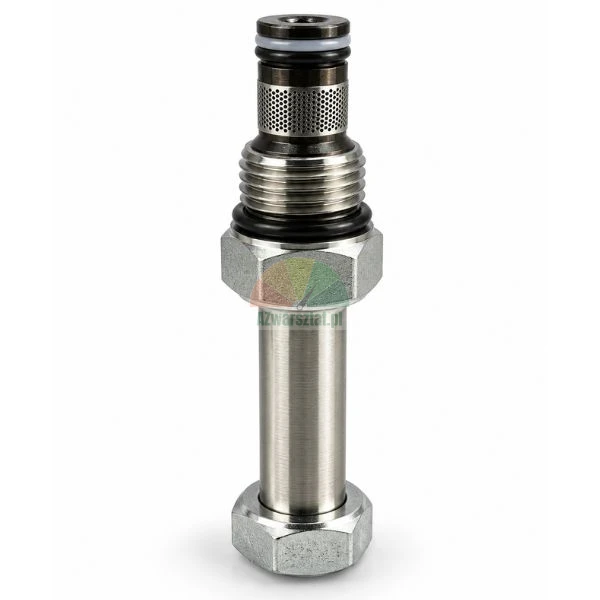

Lowering valve for 13 mm / G19 mm solenoid coil
A metal lowering valve designed to work with the solenoid used in the hydraulic system of a car lift. The component controls the flow of oil whilst the lift is being lowered. Once the solenoid coil is fitted, the valve opens the oil return path and allows the lift’s arms or platform to be lowered in a controlled manner.
The valve is fitted in the hydraulic block or the car lift pump assembly. The upper part is designed to house an electromagnetic coil with a mounting diameter of 13 mm, whilst the threaded part is screwed into the appropriate socket in the hydraulic system.
The suitability of the valve depends on the dimensions of the socket in the lift. Before purchasing, you must check the mounting diameter of the coil, as well as the type and dimensions of the thread.
Key features
- lowering valve for an electromagnetic coil,
- mounting diameter for the solenoid: 13 mm,
- mounting thread: G19 mm,
- metal construction,

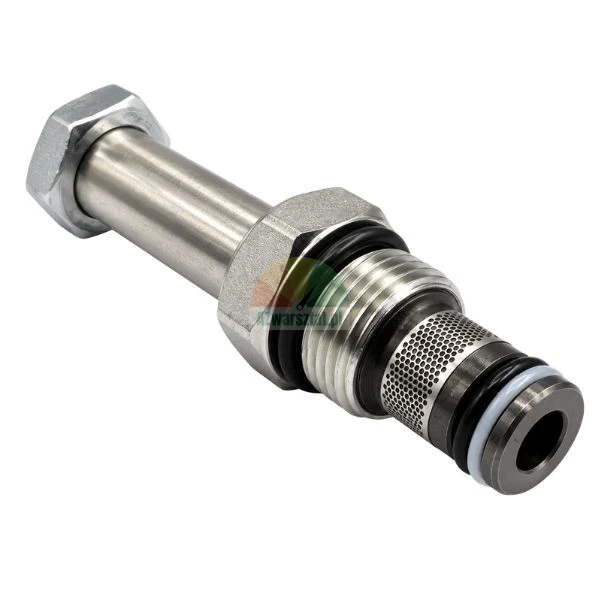

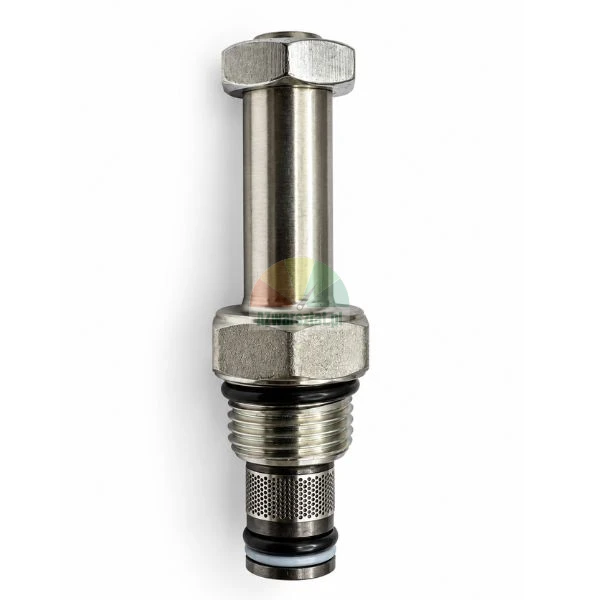

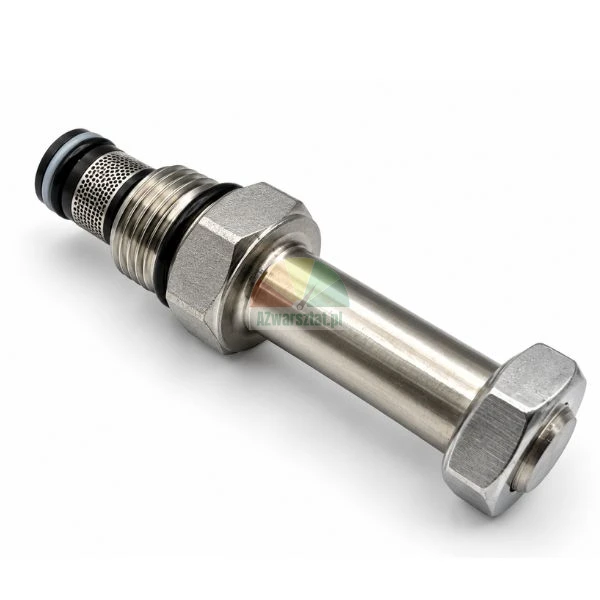

- integrated mesh filter to protect the component from contamination,
- fitted with seals to ensure correct installation in a hydraulic system.

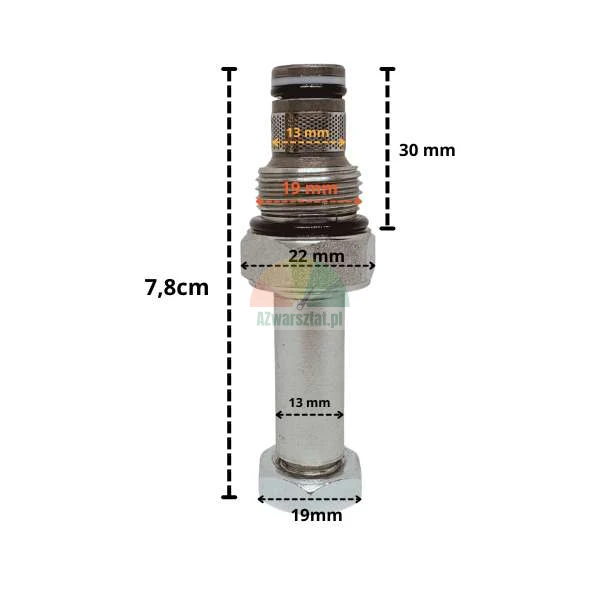

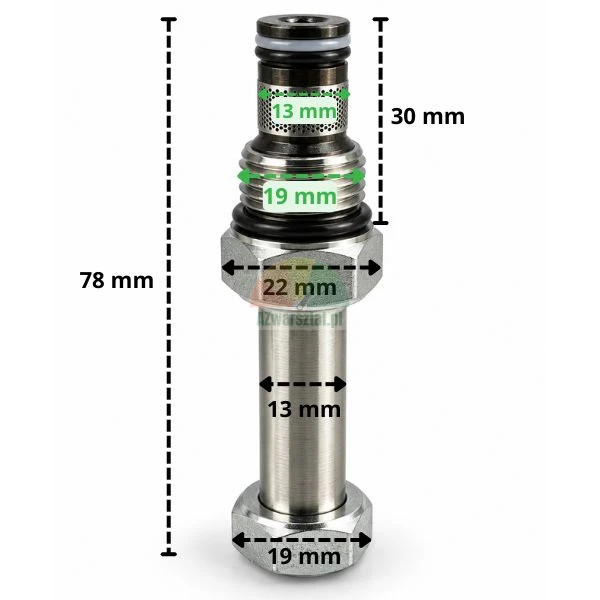

Technical data
| Part type | Solenoid valve |
| Coil mounting diameter | 13 mm |
| Valve thread | G19 mm |
| Outer diameter of nut | 22 mm |
| Base diameter | 19 mm |
| Overall height | 78 mm |
| Height of threaded section | 30 mm |
This product is designed for the repair or replacement of a worn lowering valve in car lifts fitted with a suitable solenoid coil. Before ordering, please check the dimensions of the part against the valve fitted to your lift.
Product safety
Manufacturer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product

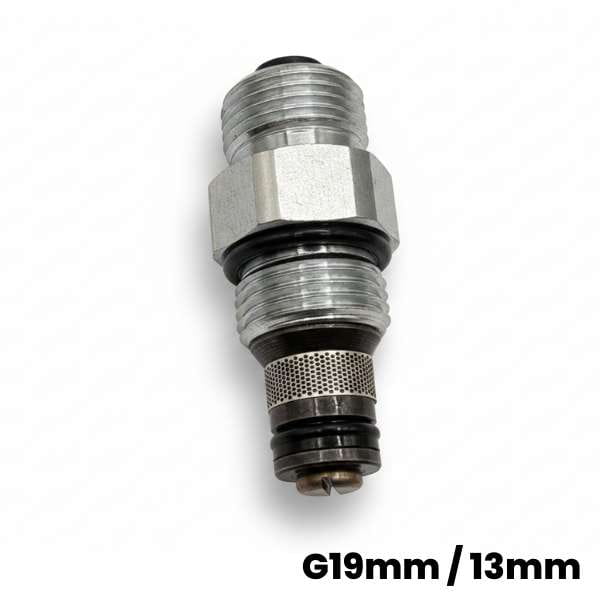

It pairs well
