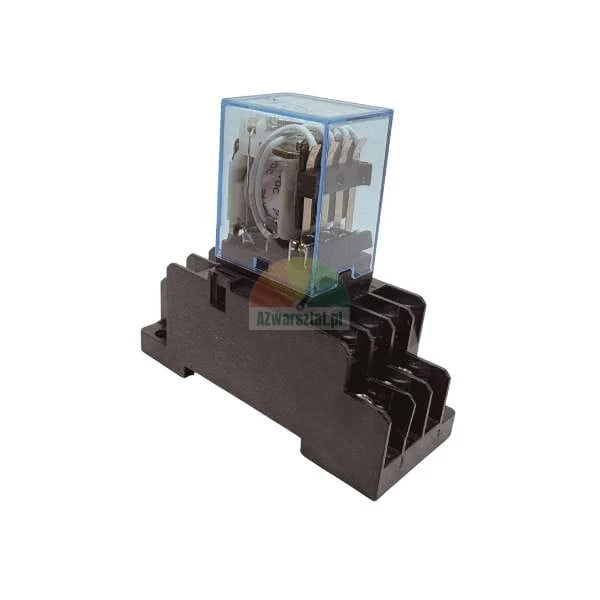

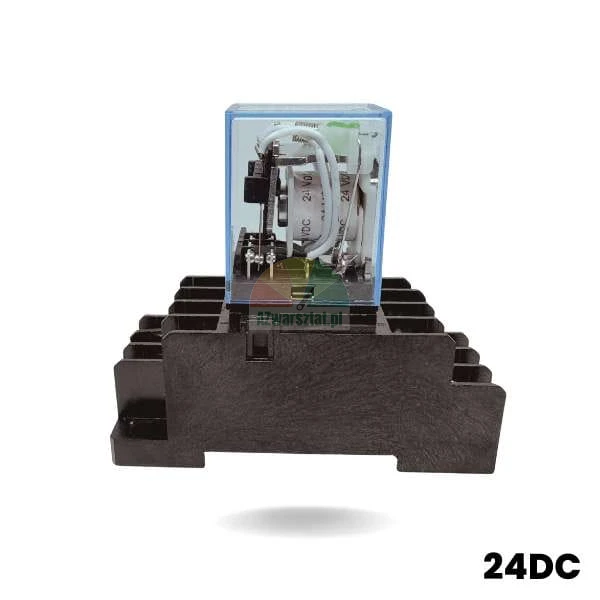

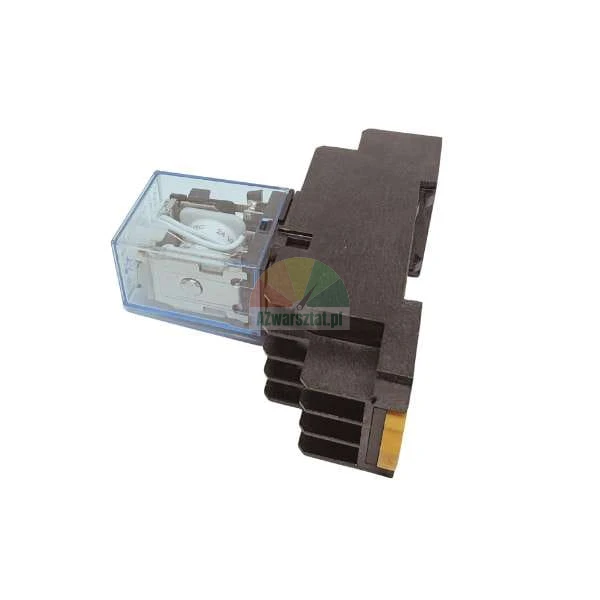

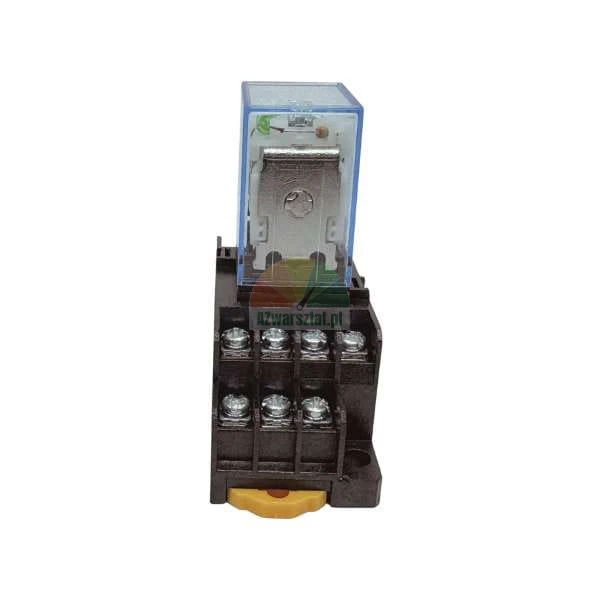

Relay socket with 24V DC power relay - complete set for workshop machines
We offer a complete set: relay socket with 24V DC power relay - a reliable and universal solution for vehicle lifts. The set consists of a 24V DC power relay (P-PRZE-0002) and a dedicated socket (P-PRZE-0003), which guarantees fast assembly and full compatibility with the majority of workshop machines available on the market.
Compatibility with 24V DC control voltage and DIN rail mounting (NS 35/7.5) ensure easy integration into modern industrial automation systems.
Key product features and benefits:
- Coil voltage: 24V DC
- Mounting type: on DIN rail (NS 35/7.5) - quick and convenient installation in control cabinets
- Number of changeover contacts: 1 (SPDT)
- Current-carrying capacity: up to 6A
- Number of relay pins: 14
- High reliability - ideal for use in harsh workshop environments
- Stable and secure electrical connection
- Easy assembly and disassembly - quick replacement in case of failure
- Versatile - fits most workshop machines
- Space-saving - socket width only 6.2 mm
Component dimensions:
- Socket: 72 mm x 30 mm
- Relay: 33 mm (height) x 26 mm (width) x 20 mm (depth)

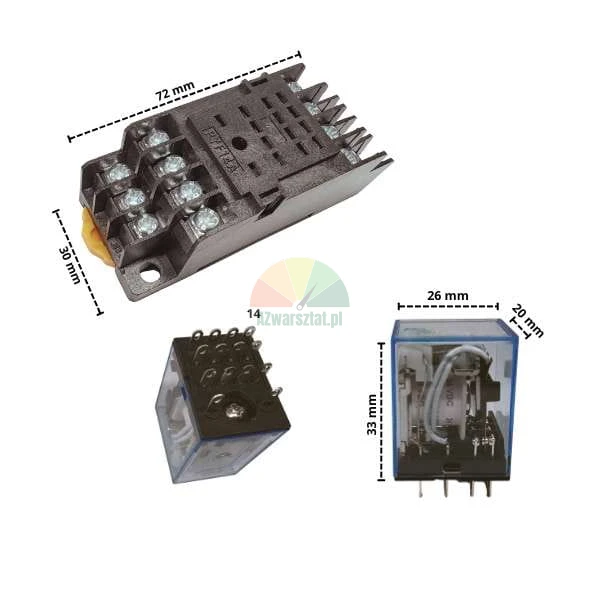

Pictured: relay socket with 24V DC power relay. Dimensions of socket: 72 mm x 30 mm, relay: 33 mm x 26 mm x 20 mm.The kit is compatible with popular interface relays, including Phoenix Contact PLC-BPT-24DC/21 and Relpol PI6W-1P-24VDC, providing a wide range of applications in industrial automation.
Relay catalogue number: P-PRZE-0002
Socket part number: P-PRZE-0003
Choose the tried and tested 24V DC power relay socket kit and ensure uninterrupted, safe and stable operation of your machine. The kit contains everything you need for quick replacement or installation - no need to search for compatible parts separately!
