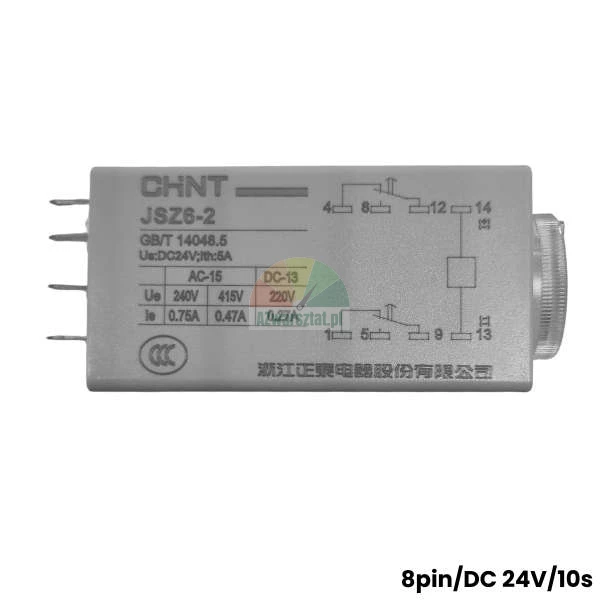

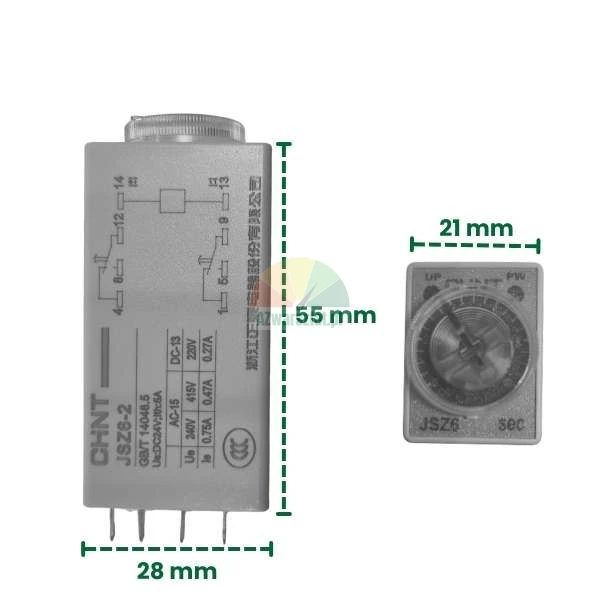

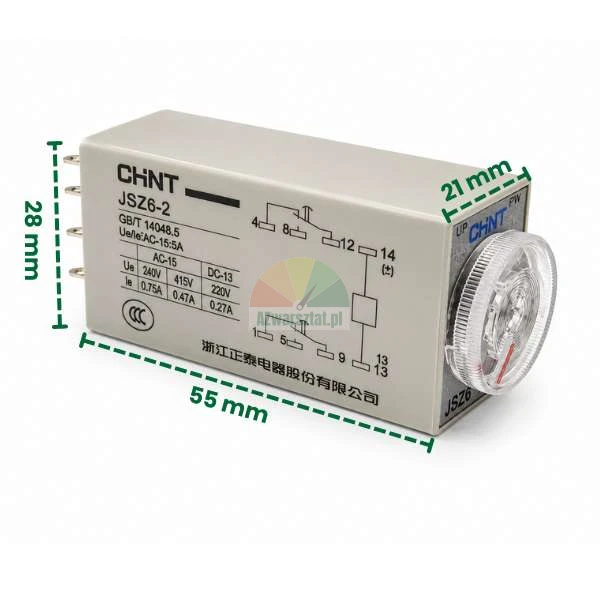

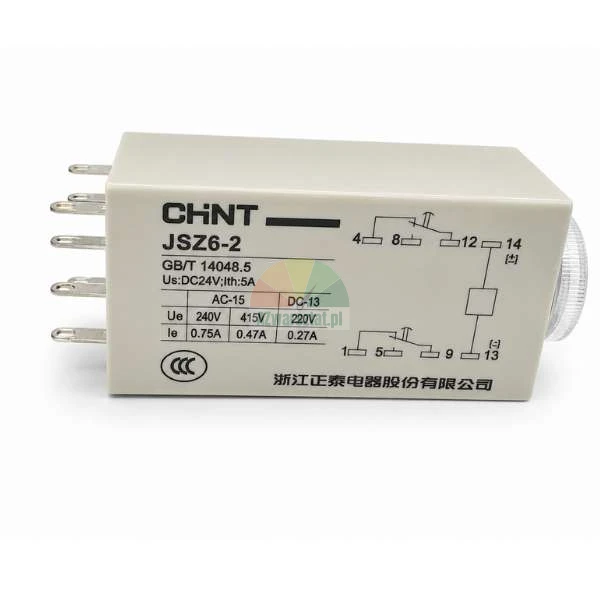

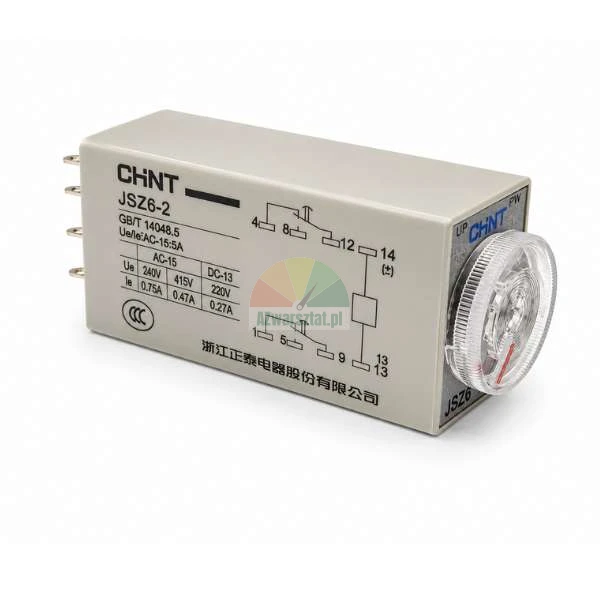

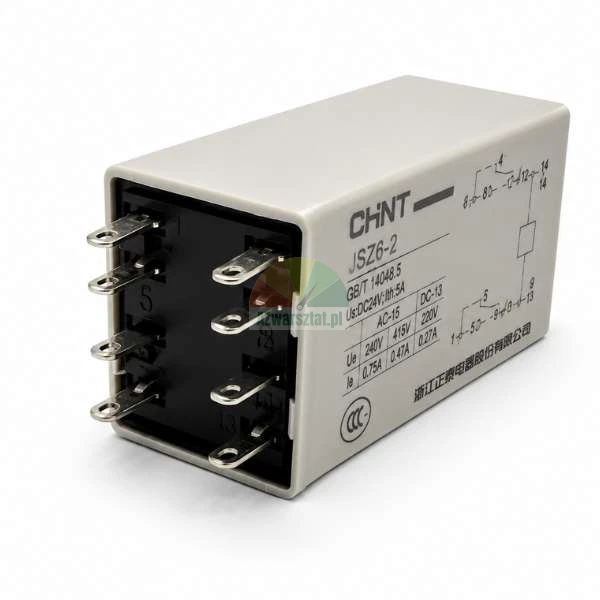

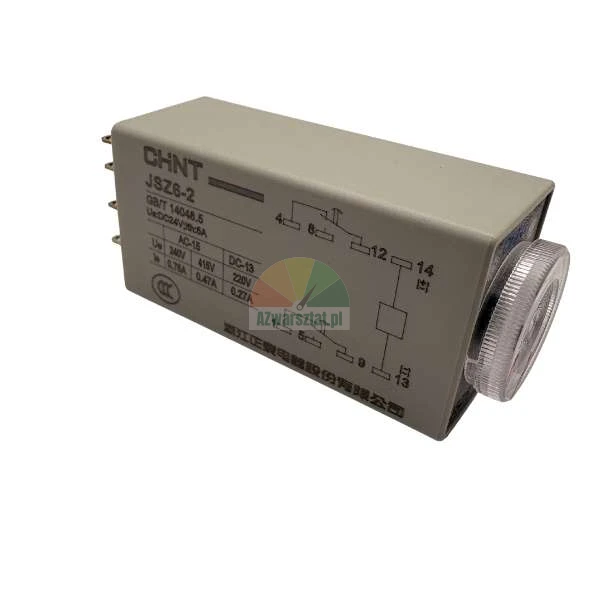

DC 24V / 10s / 8 PIN time relay

Secure payment

30 days to return

Fast shipping

€32.67

Shipping costs are not included in the price.

Quantity

pc.

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

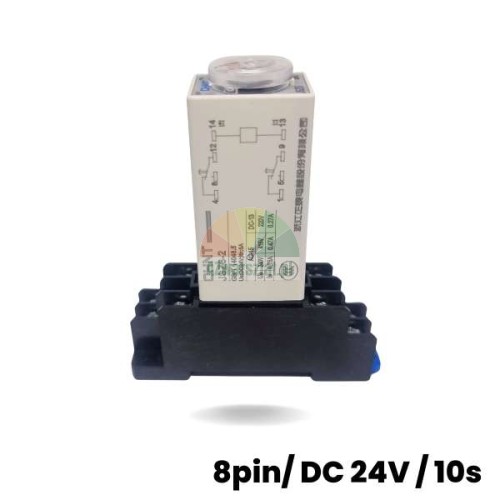

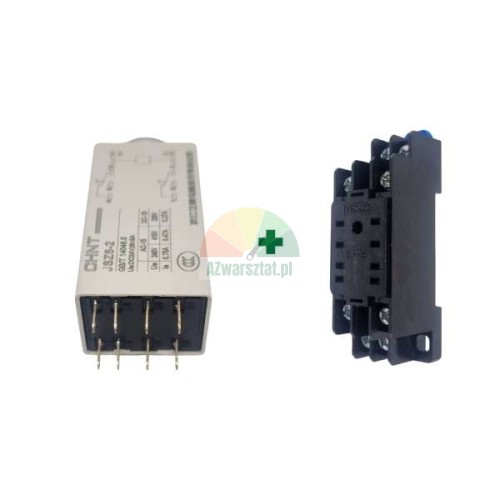

DC 24V (10s) time relay - precise time control for workshop machinery

The DC 24V (10s) time relay is a reliable automation component that allows the delayed activation of electrical equipment between 0.5 and 10 seconds. Ideal for applications in workshop machinery such as lifts and other time-controlled equipment.

Looking for a simple way to automate your work cycles or protect your machines from overload? This relay allows you to set the switch-on delay time precisely - just set the dial and you're done!

Key product features

Power supply: 24V DC
Delay time range: infinitely adjustable from 0.5 to 10 seconds
Maximum contact current: 3A (typical for this type of relay)
Mounting: on DIN rail (industry standard, quick installation in control cabinet)

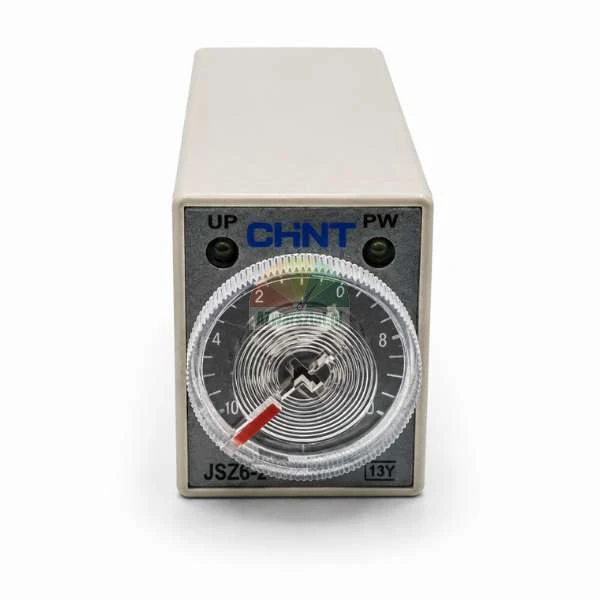

Housing: compact, with knob for time setting and LED indication
Degree of protection: IP20

Why is it worth it? The 24V DC time relay (10s) is a universal solution for time control - it will prove its worth wherever reliability, simplicity of operation and precision are important.

Technical data

Supply voltage 24V DC
Time setting range: 0.5-10 s
Mounting: DIN rail
Signalling: LED (power and operation status)
Protection class: IP20
Housing: single-module, compact

Simple installation, intuitive operation, wide range of applications - choose a DC 24V time relay (10s) and rely on reliability in your workshop!
