Socket for control / power relay
The relay socket is a robust and versatile electrical component for control and power relays. It is ideal for use in workshop machinery such as vehicle lifts. It allows quick, safe installation and replacement of relays, ensuring a stable electrical connection and service convenience.
The base fits the P-PRZE-0001 and P-PRZE-0002 control relays, as well as the popular RM84, RM85, 40 series and other industrial relays with standard pin spacing - full compatibility guaranteed!
Product dimensions:
- Length: 72 mm
- Width: 30 mm

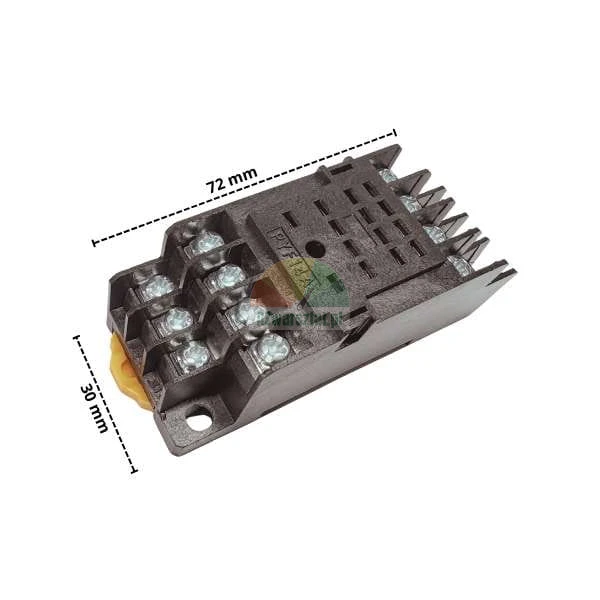

The picture shows a relay socket with dimensions 72 mm (length) x 30 mm (width).Thanks to its compact dimensions, the socket is ideal for locations with limited installation space. It allows easy expansion and upgrade of control systems without the need to solder or remove wires.
Key product features

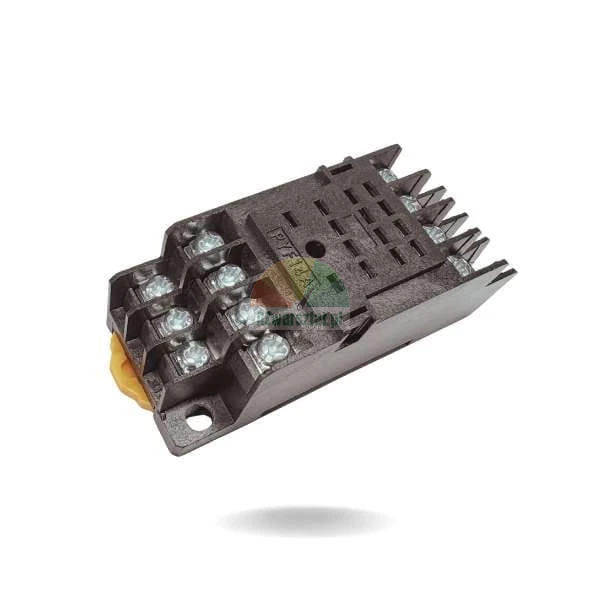

- Mounting type: 35 mm DIN rail or panel mounting - quick and versatile installation in control cabinets and switchgear.

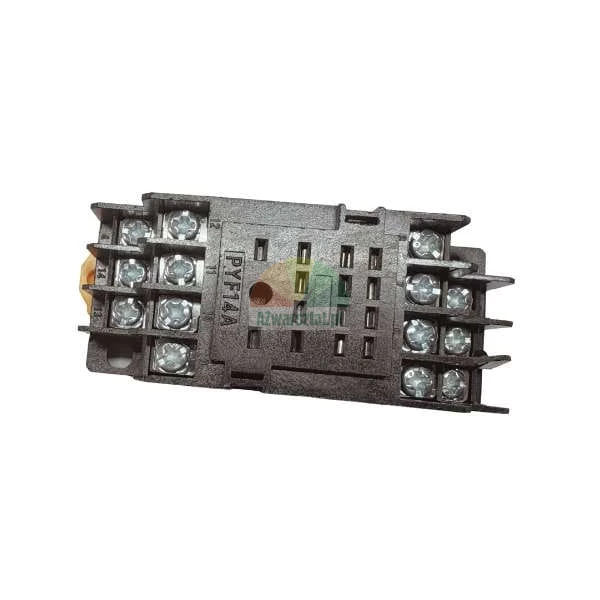

- Screw terminals: ensure secure and durable connection of wires, minimising the risk of contact loosening.
- Material: high-quality plastic resistant to mechanical damage and high temperatures.
- Safety: complies with CE standards, allows the use of additional surge suppression and signalling modules.
- Versatility: fits many types of relays, including RM84, RM85, 40 series and P-PRZE-0001 and P-PRZE-0002.
- Easy and quick assembly and disassembly - ideal for service and machine upgrades.
- High durability and resistance to industrial conditions - reliable operation even in harsh workshop conditions.
- Possibility to use additional accessories (e.g. signalling, surge suppression modules).
Choose a proven solution for your workshop! The relay socket is a practical and reliable solution that increases safety and simplifies the servicing of machines. It allows the relay to be replaced in a flash, without interrupting operation - rely on a safe and secure relay connection!
