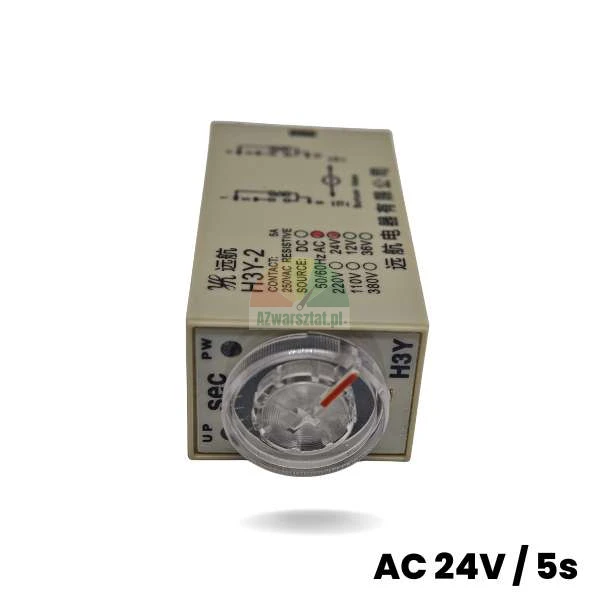

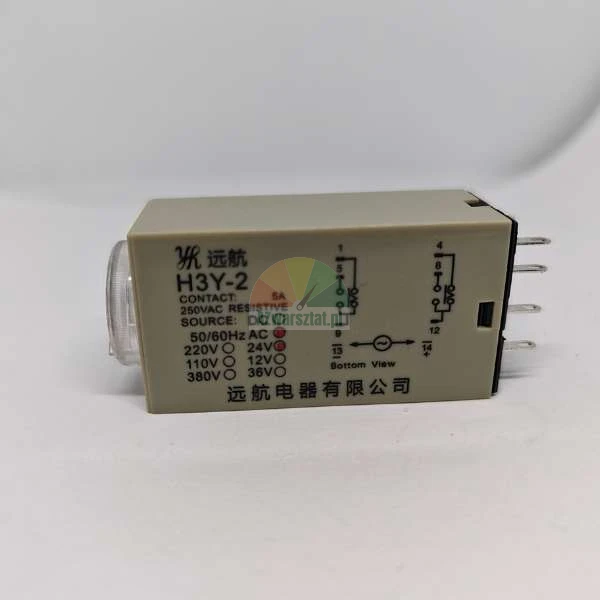

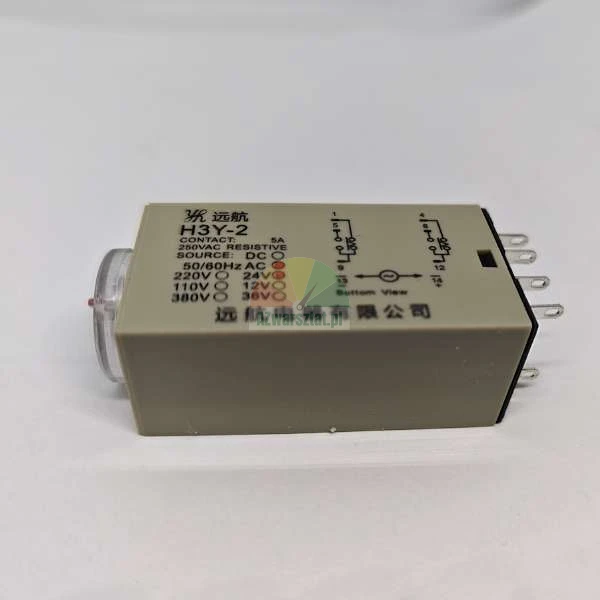

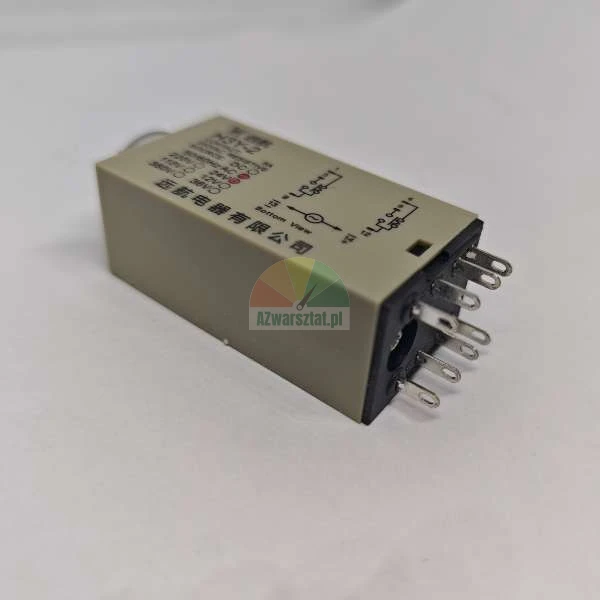

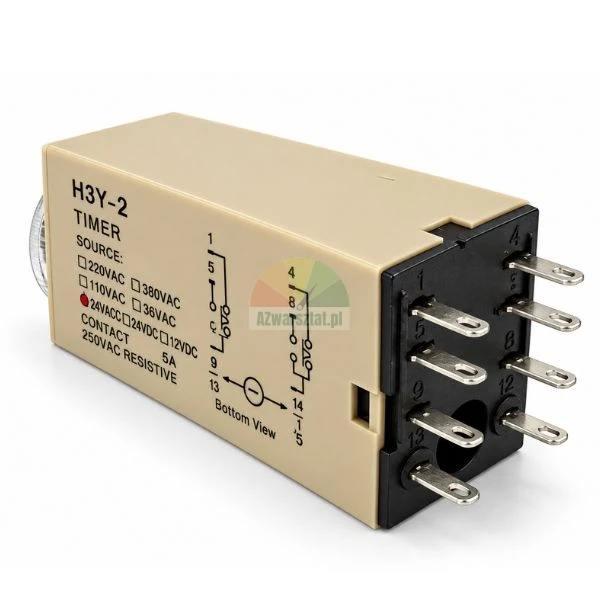

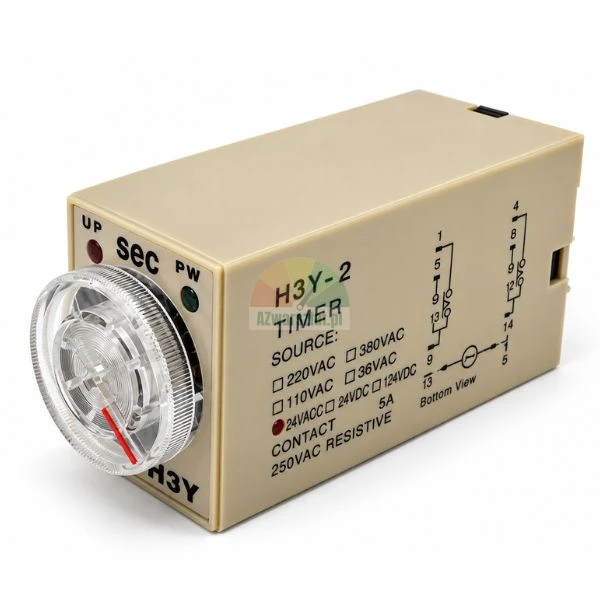

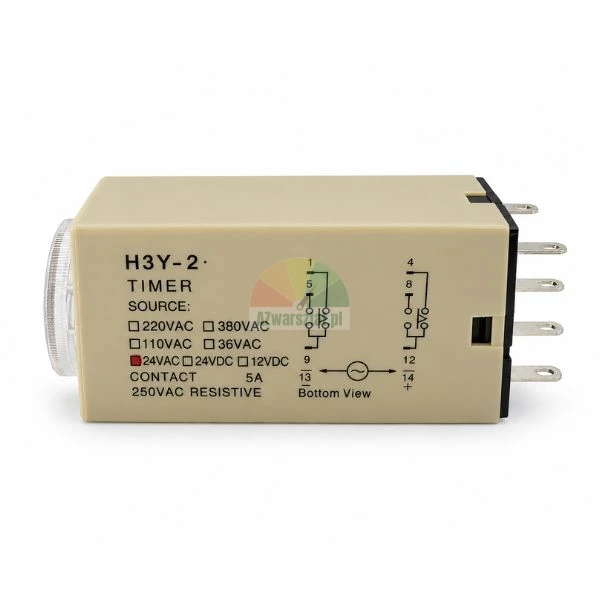

Timing relay AC24V / 5s - precision automation for workshop machines

The AC24V / 5s time relay is a reliable automation component designed for precise time control in vehicle lifts. It allows delayed switching on or off of electrical circuits, which significantly increases the safety and efficiency of the equipment. Its versatility and easy installation makes it an ideal replacement for most workshop machines.

The ideal choice for service and industrial applications - simple installation, repeatable operation and high reliability even in harsh workshop environments!

Key product features

Supply voltage: 24V AC
Delay time: 5 seconds
Relay type: H3Y-2
Maximum load: 3A / 220V AC (resistive load)
Contact type: 1 × NO/NC (normally open/closed)

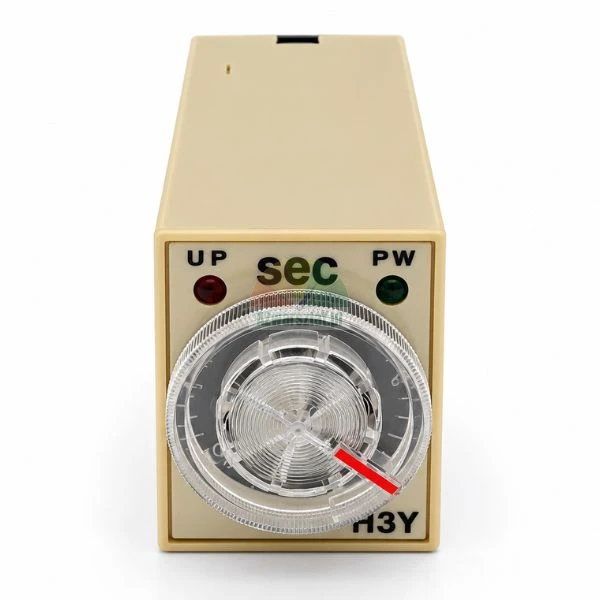

Easy time adjustment with a knob on the front
Mounting: on 35 mm DIN rail
Status indication: LED
Operating temperature range: -25°C to +50°C
High durability and resistance to workshop conditions
Compact dimensions: 1 module (18 mm wide)

Relay dimensions

Length: 5.3 cm
Width: 2.8 cm
Height: 2.1 cm

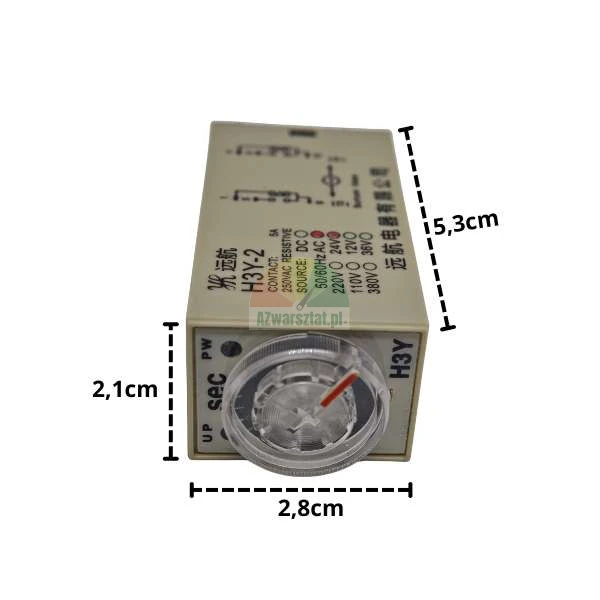

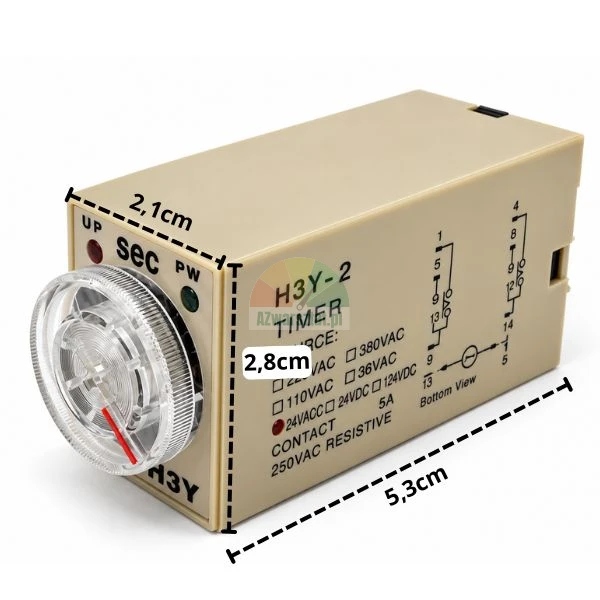

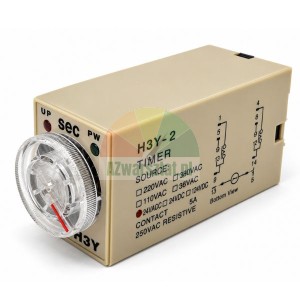

Przekaźnik czasowy AC24V / 5s – zdjęcie produktu

Pictured: time relay AC24V / 5s - length 5.3 cm, width 2.8 cm, height 2.1 cm.

The compact dimensions and easy DIN rail mounting allow installation even in the limited space of the device. The clear LED indication facilitates diagnostics and servicing.

Why choose this relay?

High reliability - proven design for harsh workshop environments
Versatile - compatible with most workshop machines
Safety - precise timing control minimises the risk of failures and damage
Simple replacement - quick installation and intuitive operation

If you are looking for a proven and versatile timing control solution for your workshop or service, the AC24V / 5s timing relay is the choice for reliability, safety and convenience every day.
