Wire rope assembly for SDW50 four-column lift
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-ZEST-0001
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

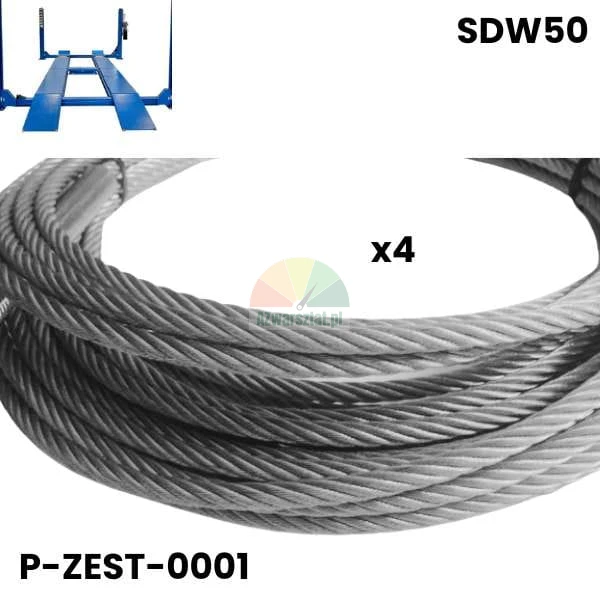

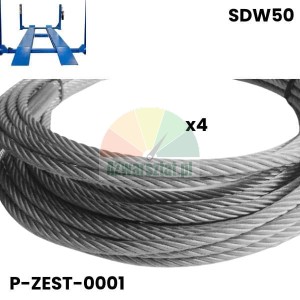

Steel cable set for SDW50 four-post lift

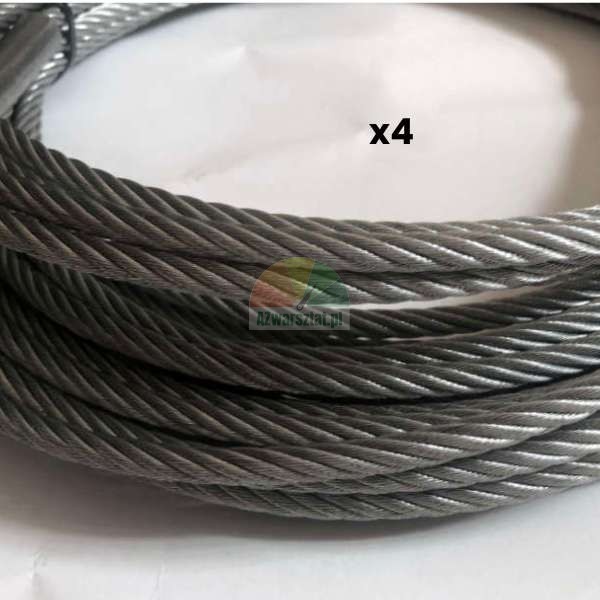

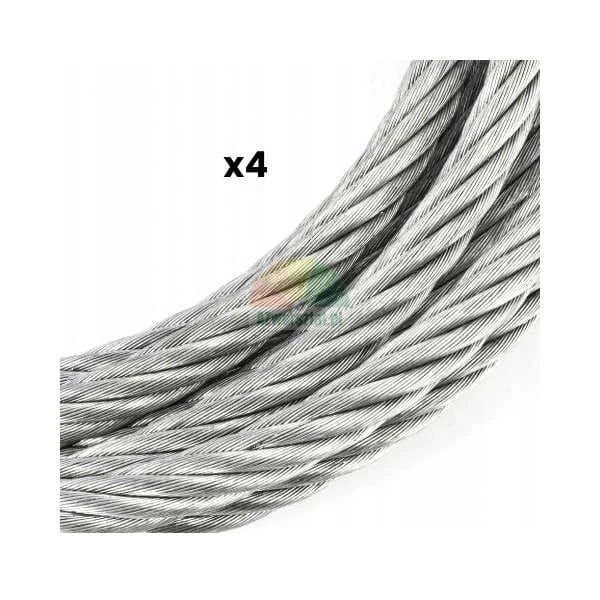

Complete set of 4 steel cables designed for SDW50 four-post lifts, ensuring synchronisation and safety during operation. The steel cables are responsible for maintaining the parallelism of the vertical movement of the lift, which is crucial for stability and precision in lifting.

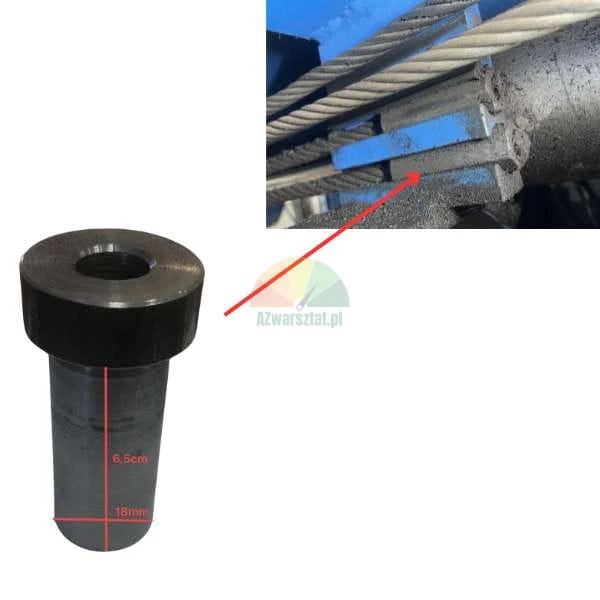

Each cable in the set has a threaded end on one side and a stopper on the other. The cables are torsion-resistant, which prevents mechanical damage and guarantees a long service life.

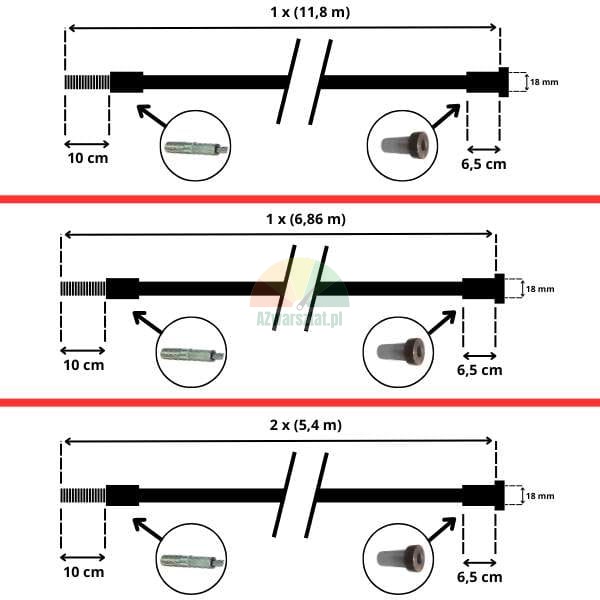

Dimensions of cables included:
- 1x cable with a length of 11.8 m
- 1x 6.86 m long cable
- 2x cables with a length of 5.4 m
Main features:

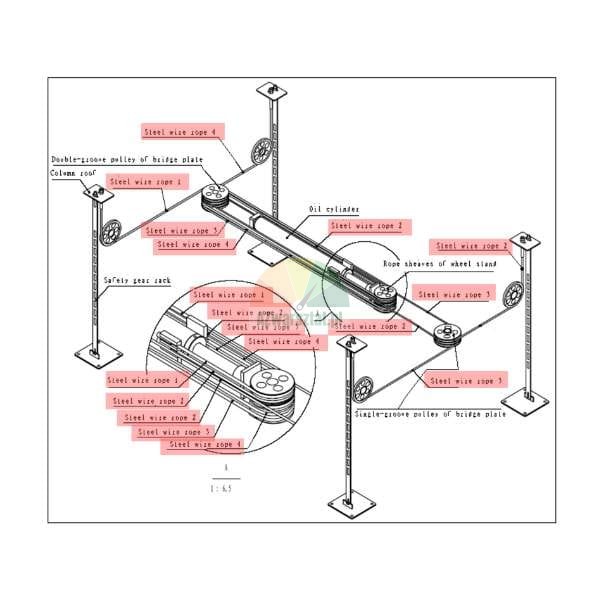

- Synchronisation with steel cables to ensure parallel movement of the columns.
- Torsion-resistant for increased durability.
- Easy installation and adjustment.
- Compatible with the SDW50 lift, with a lifting capacity of up to 5000 kg.
Check the length of the cables on your lift before purchasing! The length should be stamped on the cable end fittings - compare it with the dimensions in this set.
If you have questions about compatibility, please contact us - we will be happy to help!
The cables are certified and meet all the requirements of the Machinery Directive 2006/42/EC and the harmonised standard EN ISO 12100.
Product safety
Manufacturer
Metalmex-Instal Sp. z o.o.
ul. Łęgska 3
87-800 Włocławek, Poland
Responsible person in the EU
Metalmex-Instal Sp. z o.o.
ul. Łęgska 3
87-800 Włocławek, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
It pairs well
Replacements Werther: Rope set for Werther 450 ATLT, 450 ATLV, 40 N/5 four-column boom lift
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)
The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?
- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
Can I return or exchange the part if it doesn't fit?
If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.
For the return to be accepted, the part must:
- be unused and undamaged,
- show no signs of installation,
- be sent back in its original or appropriately secured packaging.
We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
