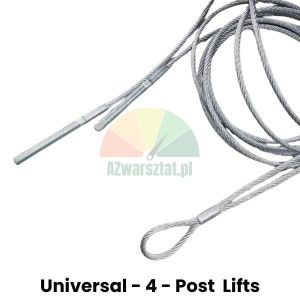

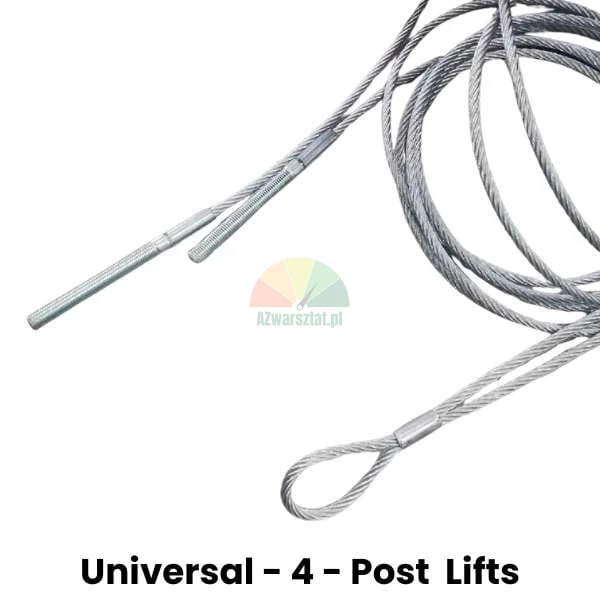

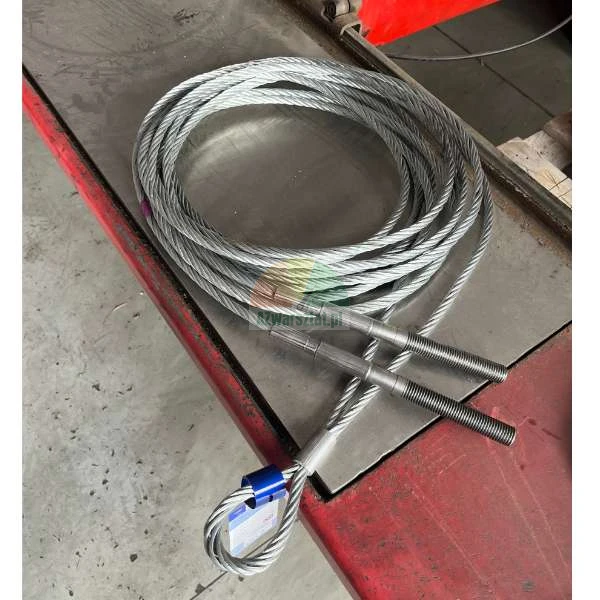

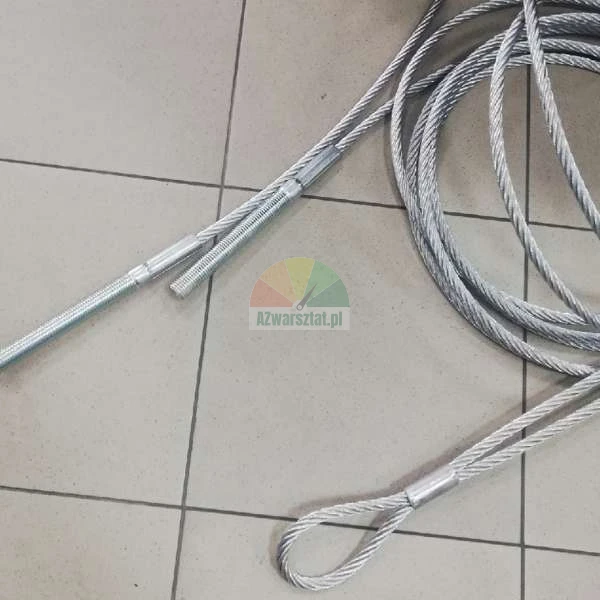

Universal steel cable with eyelet for four-post vehicle lifts

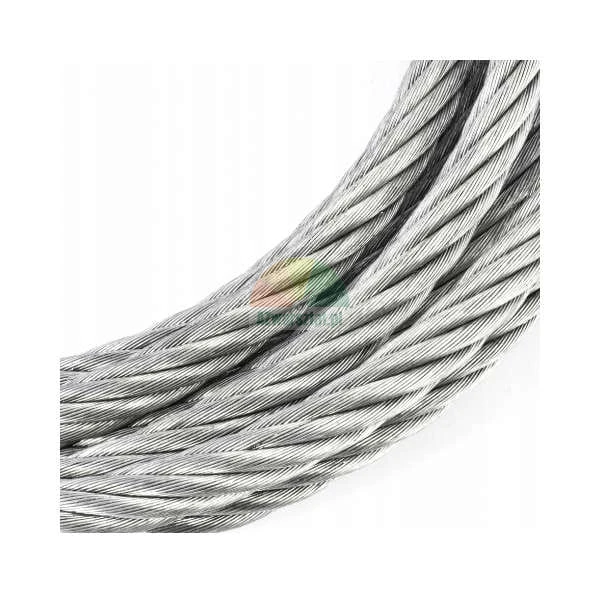

The universal steel cable with eyelet is a reliable spare part for four-post vehicle lifts. Made from high quality steel, it provides durability as well as tensile, abrasion and corrosion resistance, which translates into safety and a long service life for the equipment.
The cable fits most four-post lift models on the market. Thanks to the mounting eyelet and the ability to adjust the dimensions, installation is quick and hassle-free.
Product advantages:
- Versatile - compatible with many lift models
- High resistance to loads and workshop conditions
- Precision-made threaded ends and eyelets
- Option to order the cable with exact parameters
- Safe and smooth lift operation thanks to high quality workmanship
Technical parameters:
- Material: high quality steel
- Finish: corrosion-resistant
- Mounting eyelet: yes
- Length and diameter: individually adaptable to the lift model

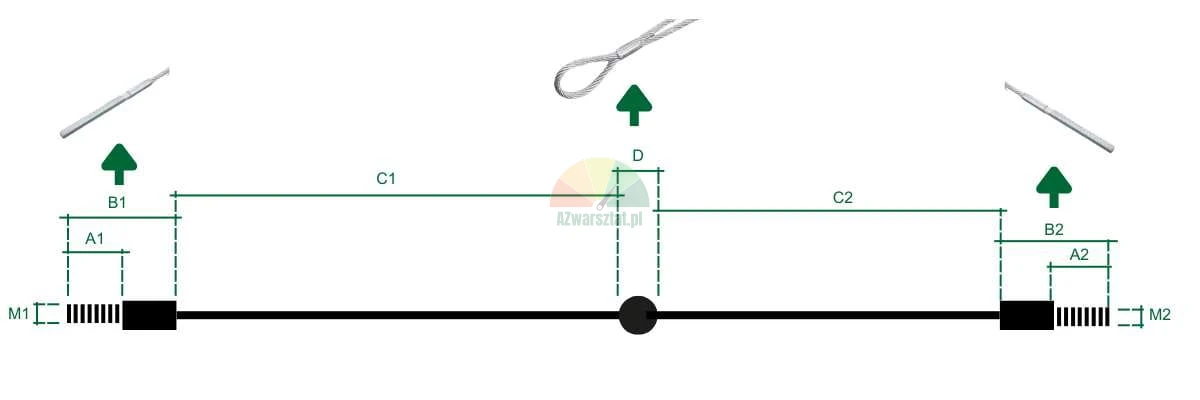

Important! Please specify the following parameters when purchasing:
- M1 - diameter of threaded end 1 (thread diameter)
- A1 - length of threaded end 1
- B1 - overall length of fitting 1
- C1 - length of cable 1 to the pulley
- D - length of the centre circle (circumference of the circle to the fitting)
- C2 - length of cable 2 to the pulley
- B2 - overall length of fitting 2
- A2 - length of threaded end 2
- M2 - diameter of threaded end 2 (thread diameter)

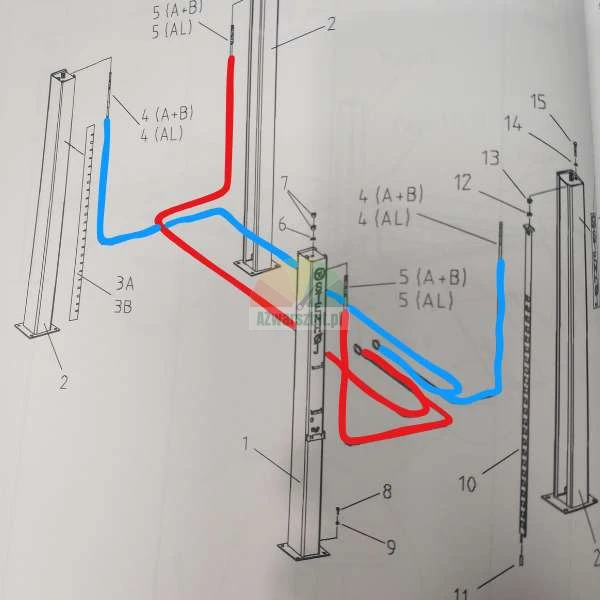

Thanks to the precise adjustment of parameters, the cable ensures safe and trouble-free lift operation. It is a key component of the lifting system that passes through the bearing-mounted pulleys, guaranteeing smooth raising and lowering of the vehicle.
Application:
Ideal for four-post lifts used in garages, diagnostic stations and service workshops. Indispensable as a spare part when the original cables are worn out.
Order now!
Contact us or specify the required parameters in the order form and we will prepare a cable perfectly matched to your lift. Choose a proven solution and ensure your comfort and safety.
Product safety
Manufacturer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
It pairs well
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)
The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?
- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
