T-joint
Shipping costs are not included in the price.
Shipping costs are not included in the price.

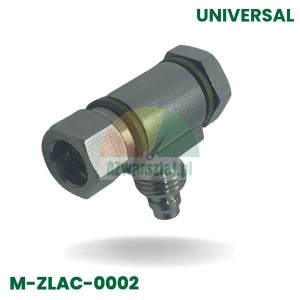

Product code: M-ZLAC-0002
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

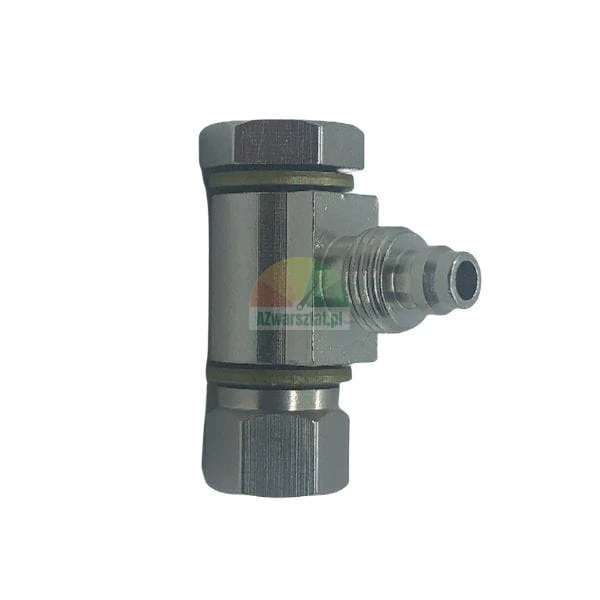

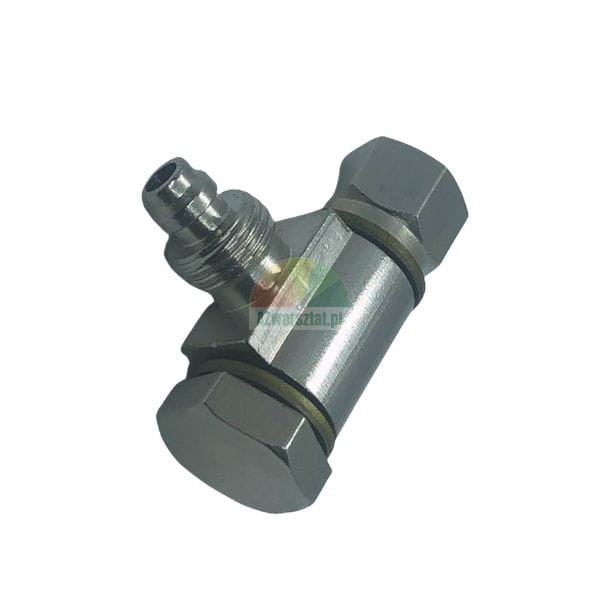

T-type pneumatic fitting for a tyre changer cylinder
We offer a high-quality T-type connector (pneumatic T-piece) designed for pneumatic systems in professional tyre repair workshops. The product is ideal as the main connection point for the tyre changer table’s cylinder, ensuring a reliable and completely leak-proof connection of the air hoses. Its robust metal construction provides exceptional resistance to high operating pressures and mechanical damage in demanding workshop conditions.

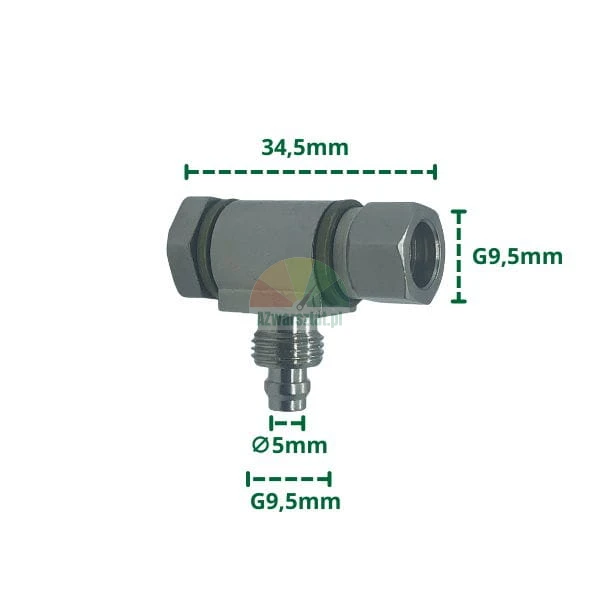

Key technical specifications:
- Total width of the connector: 34.5 mm
- Outer diameter of the upper connection (plug): Ø5 mm
- Thread of the upper connection: G9.5 mm
- Side threads: G9.5 mm

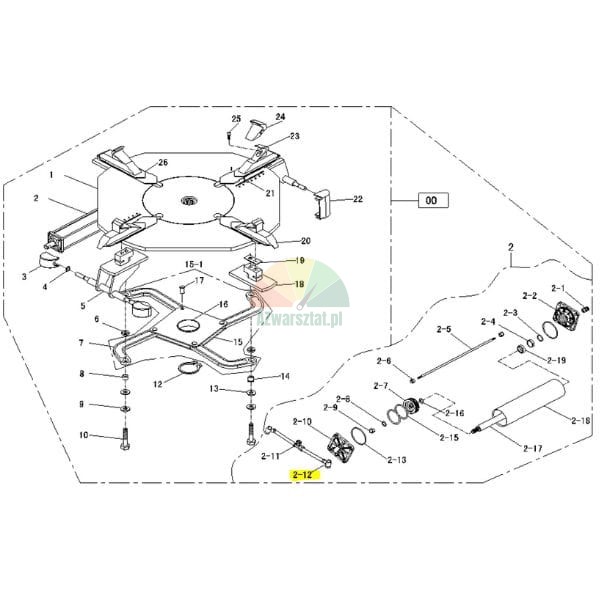

The connector shown here is a dedicated spare part, specifically marked as number 2-12 on the attached diagram of the under-table cylinder assembly. It is directly responsible for the correct distribution of air required for the trouble-free operation of the clamping jaws.
Application and installation

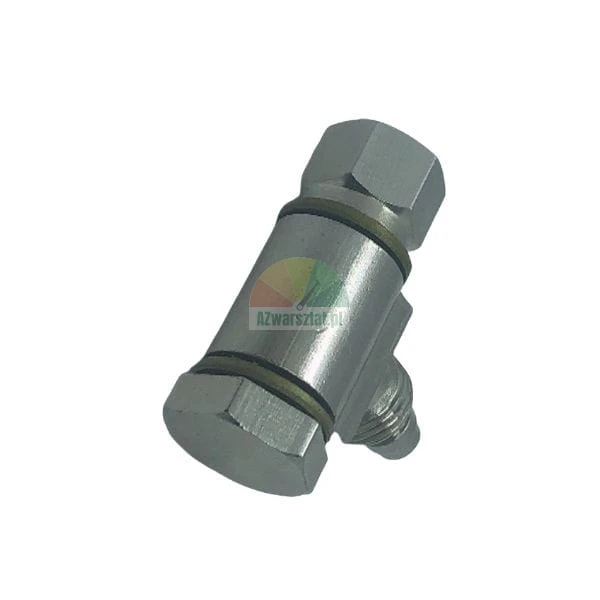

Our T-type connector is designed for quick repairs and routine servicing of tyre changers. The use of precise, standardised G9.5 mm threads on all inlets ensures trouble-free compatibility with the most common cylinders on the market. Furthermore, the factory-fitted O-ring seals (visible on the ports) maximise the pneumatic tightness of the entire system, eliminating the risk of costly leaks and pressure drops.
By choosing spare parts from the azworkshop.eu range, you are investing in reliable, long-lasting operation, which translates into the smooth and uninterrupted running of your tyre service centre.
Product safety
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Importer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
