L-type connector - 9.7 mm thread, 10 mm plug
TheL-type pneumatic connector is a robust and precisely manufactured component designed for pneumatic and hydraulic installations in workshop machinery. Thanks to its 90° angle, it allows the direction of flow of the working fluid to be changed, enabling flexible hose routing in confined spaces.
Ideal for: tyre changers, wheel balancers, car lifts and other workshop equipment where durability and tightness of connections are important.
Technical specifications:
- Connector type: L (90° elbow)
- External thread: 9.7 mm (1/8" BSP)
- Plug (outside diameter): 10 mm
- Material: high-strength plastic + brass thread
- Colour of ring: blue (for easy identification)
Why is it worth it? The connector provides high tightness, pressure resistance and long service life, which translates into safe and reliable operation of pneumatic equipment.
Application:
The product is used in pneumatic and hydraulic systems, especially in hard-to-reach areas where a permanent and tight connection of the hoses at right angles is required. Recommended for professional workshops and tyre service centres.
Product code: M-ZLAC-0026
Product picture:

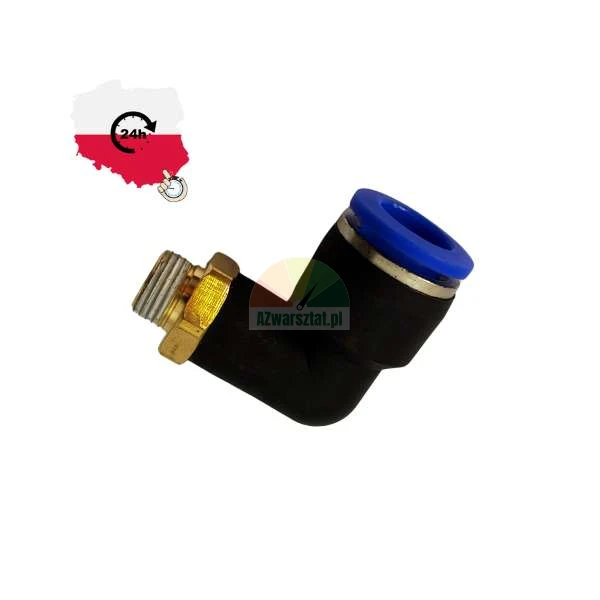

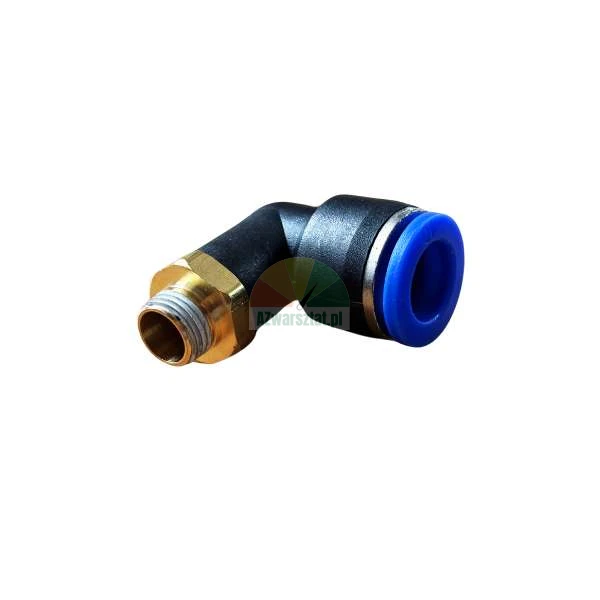

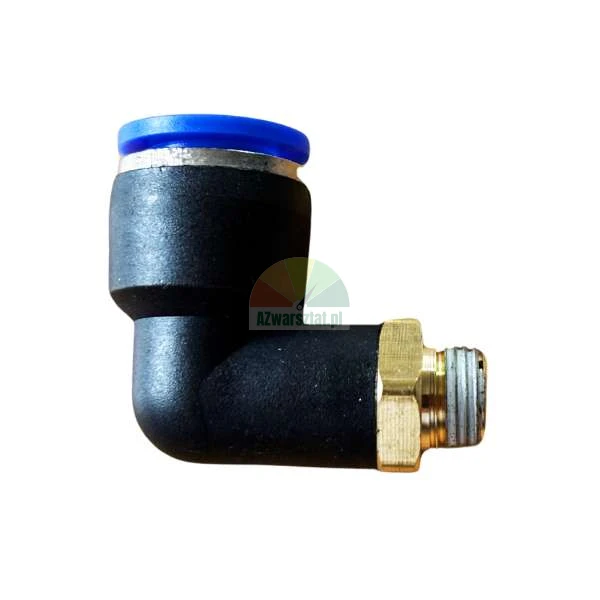

Below is a photograph of the L-type connector. You can see the dimensions: 9.7 mm external thread and 10 mm diameter plug.
