Seal 186x12x9 (for a deflector actuator with a diameter of 186 mm) (1 piece)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-USZC-0001
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

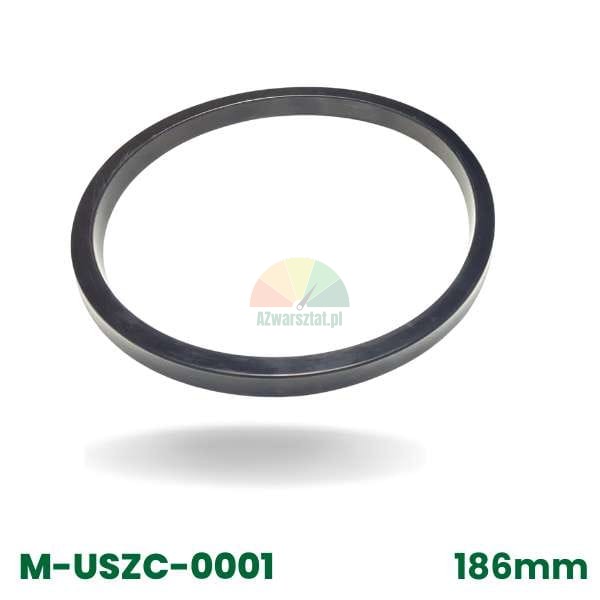

Cylinder Seal for Bead Breaker Cylinder 186x12x9 (1 piece)
A high-quality piston seal for a bead breaker cylinder, designed for professional tyre changers. This is an absolutely crucial component of the machine's pneumatic system, ensuring proper sealing and trouble-free, safe operation during wheel servicing.
Key specifications and actual dimensions:

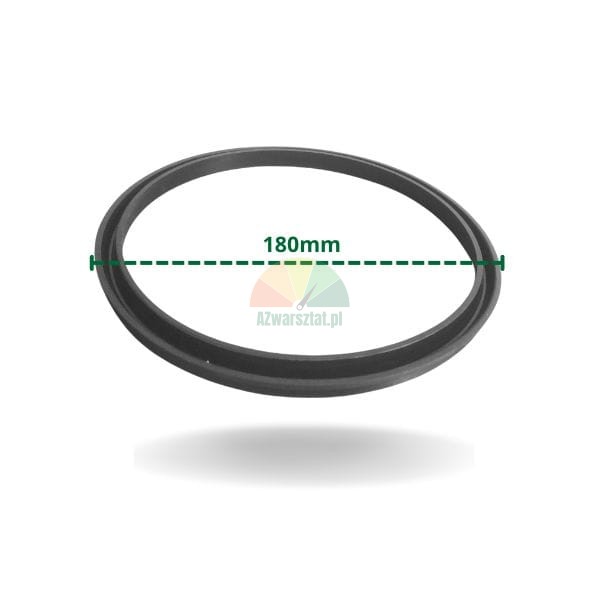

As shown in the attached photos and the specification, the physical dimensions of the seal are:
• Outer diameter: 180 mm
• Internal diameter: 160 mm
• Thickness: 10 mm

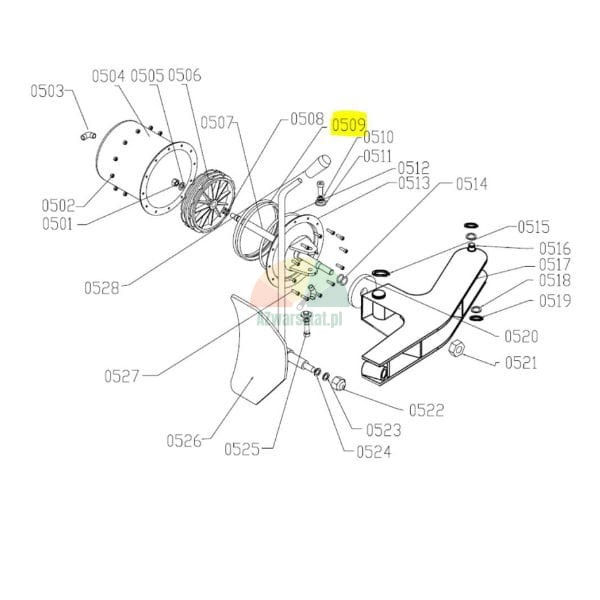

The seal is designed to function correctly in a cylinder with a diameter of 186 mm (hence the catalogue designation 186x12x9). In the provided cylinder assembly diagram, this part is clearly marked with the number 0509.
Reliability for your workshop
At the azworkshop.eu online shop, we know full well how important equipment reliability is. We specialise in spare parts for vehicle lifts, tyre changers and wheel balancers. This seal is made from a highly durable material characterised by high resistance to abrasion, moisture and the harsh conditions found in a tyre repair workshop.
The seal's perfect fit minimises the risk of leaks and a drop in the machine's performance. Before purchasing, we recommend comparing the dimensions of your worn seal with the specifications we have provided. The price is for 1 item.
