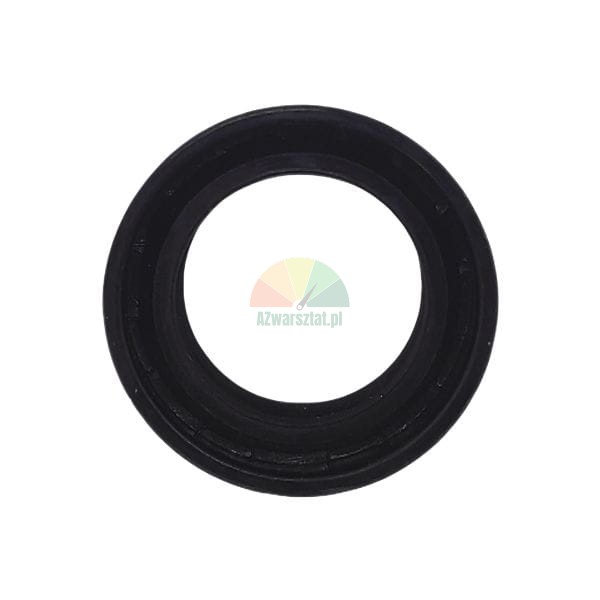

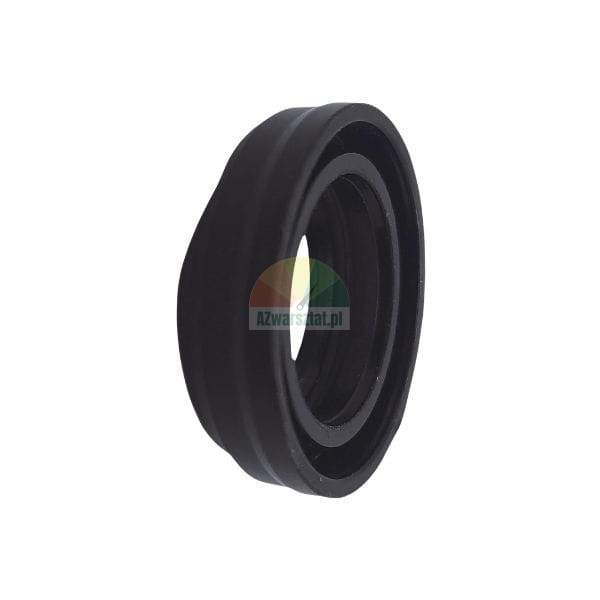

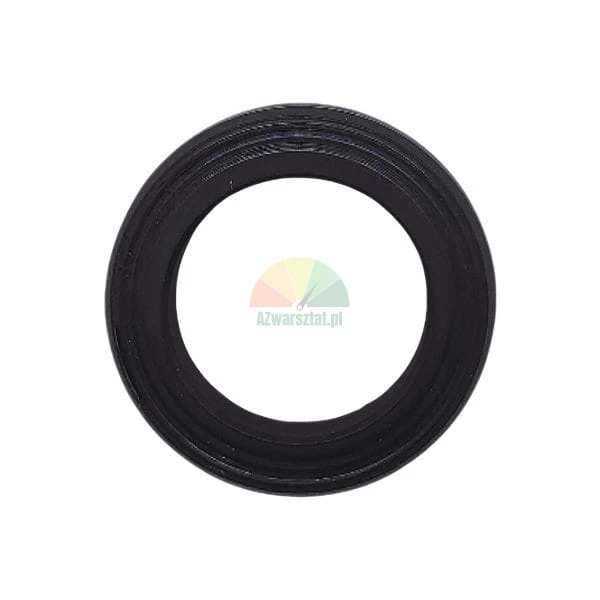

V-ring piston rod seal (replacement)
Shipping costs are not included in the price.
Shipping costs are not included in the price.

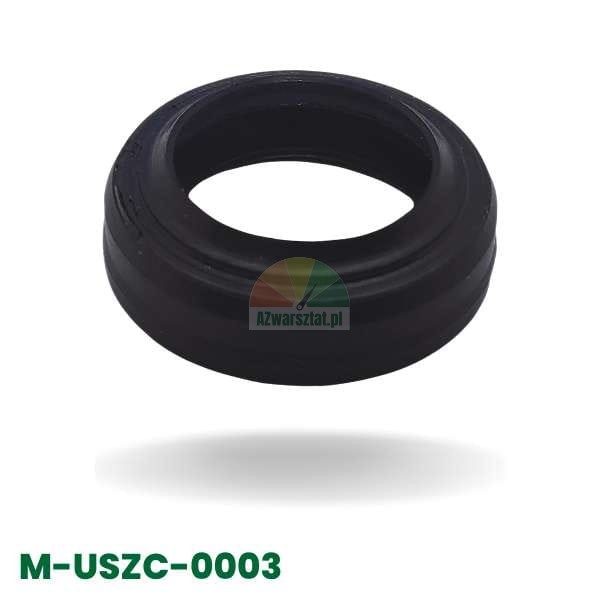

Product code: M-USZC-0003
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
V-ring piston rod seal (replacement) for tyre retreading machines
Are you looking for reliable replacement parts for your workshop equipment? Our V-ring piston rod seal is a tried-and-tested, durable replacement that is ideal for servicing pneumatic cylinders. Thanks to its precision manufacture, it guarantees a complete seal and restores your machine to full working order.
Technical specifications and dimensions
As per the attached documentation, the product on offer has the following specifications:

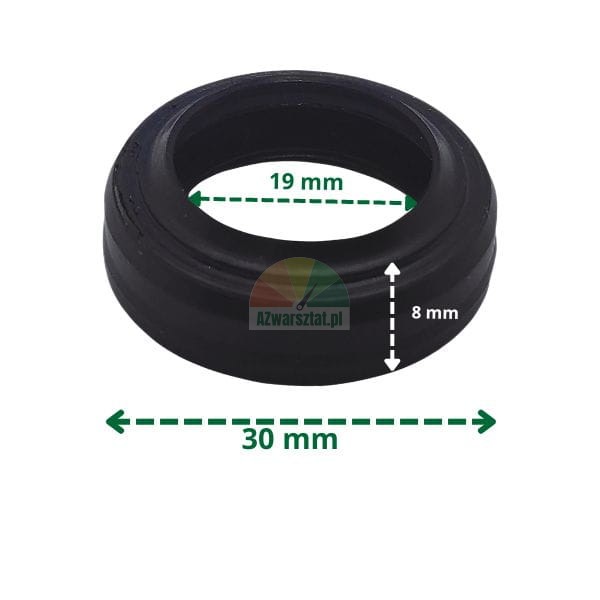

- Internal diameter: 19 mm
- Height (thickness): 8 mm
- Seal profile: Type V (ensuring optimal contact and trouble-free operation of the piston rod)

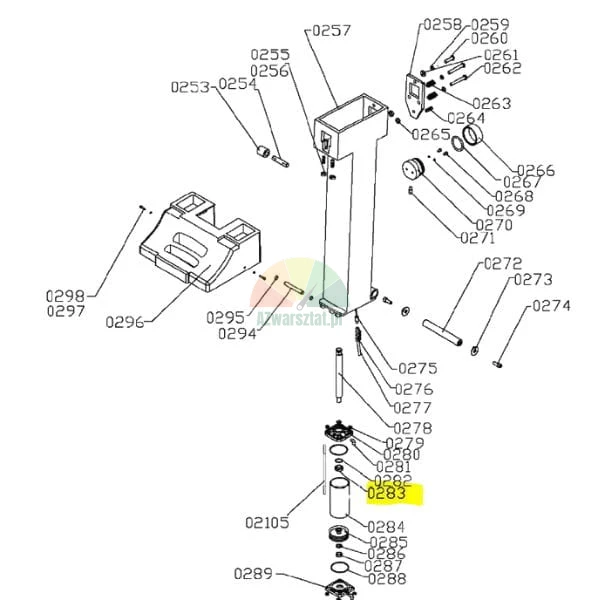

Important service information: In the system layout diagram provided (technical drawing), the seal on offer is marked as component number 0283. Before purchasing, please ensure that the dimensions and part number match the components in your equipment.
Application
This seal is a key component responsible for maintaining operating pressure in the pneumatic systems of tyre changers. It must be replaced if any leaks or drops in pressure are observed in the column cylinder. Using our replacement part ensures that the machine will operate smoothly, protecting you from costly downtime during the peak tyre season.
Choose tried-and-tested parts from the azwarsztat.pl range and ensure your service centre runs without a hitch!
