Guide rail (switch latch on the pedal)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-LACZ-0006
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

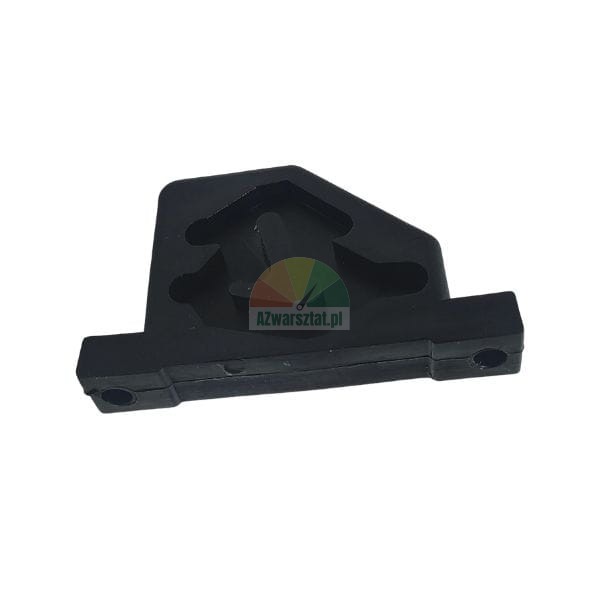

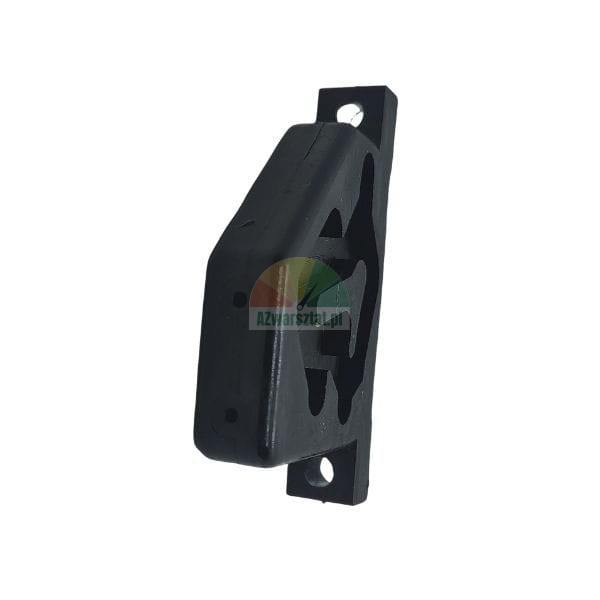

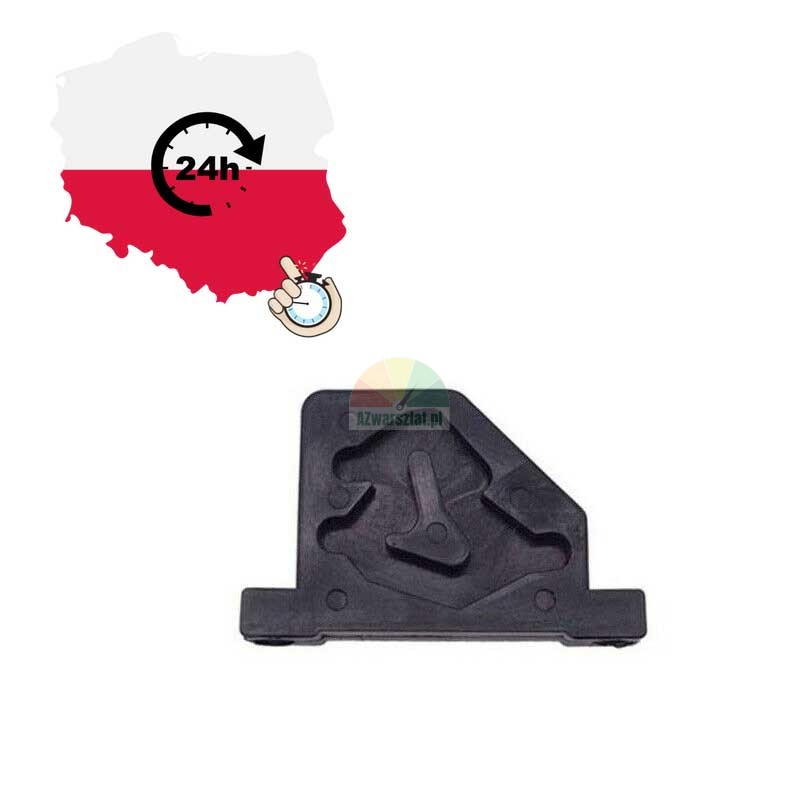

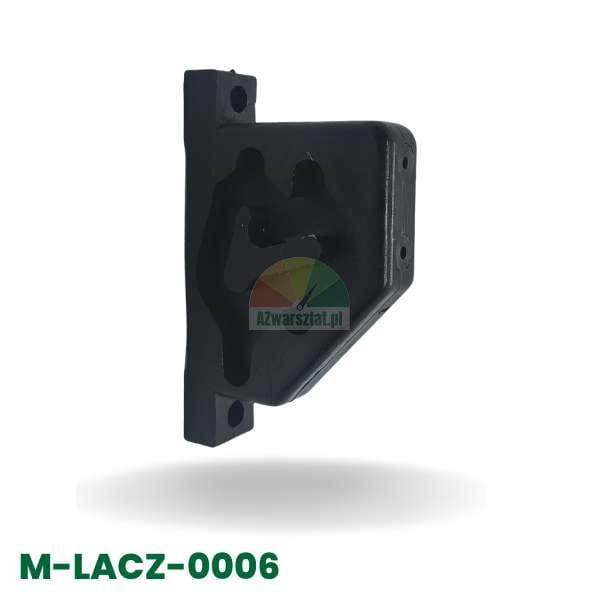

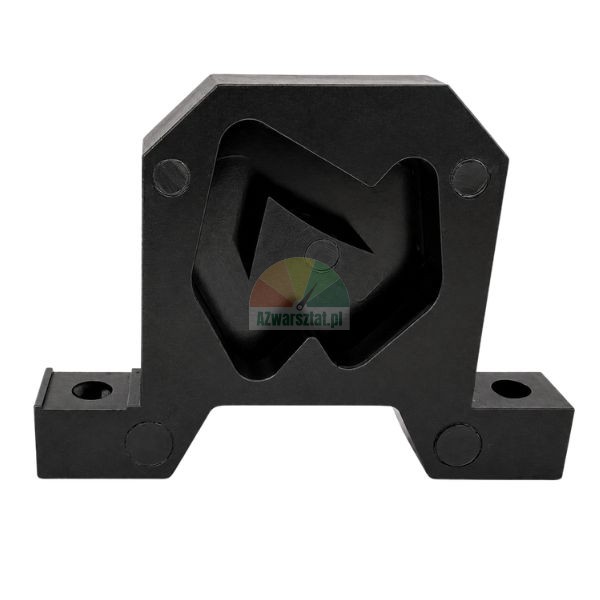

Guide – Switching latch on the pedal
Ensure the smooth and trouble-free operation of the machines in your workshop with this high-quality switching pawl. This carefully crafted control system component is essential for the correct and precise operation of the pedals on your tyre changer.

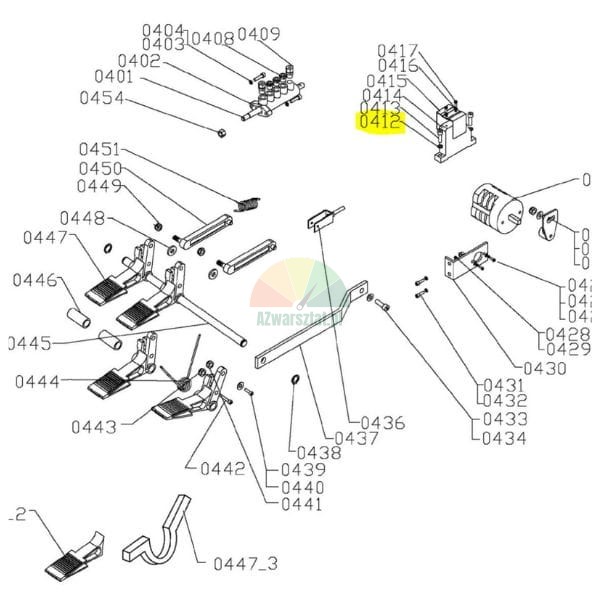

Perfect fit: In the accompanying technical diagram, this part is precisely marked with the number 0412. It is a key component of the control unit, directly responsible for switching between operating modes when the pedal is pressed.

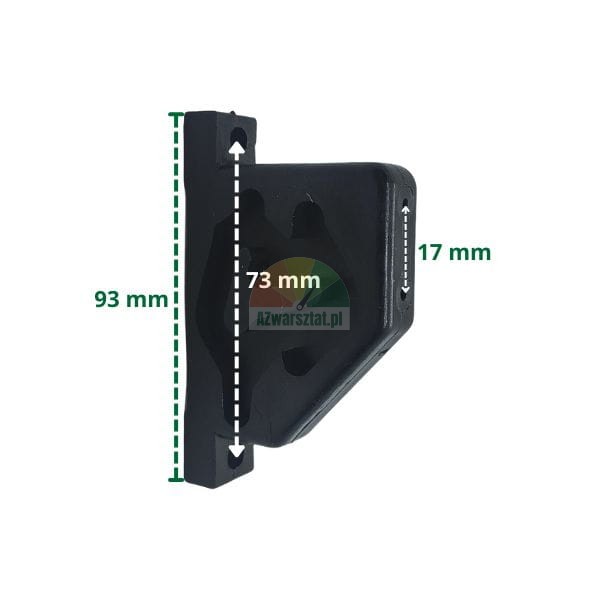

Technical specifications and dimensions
To ensure full compatibility with your equipment, please check the dimensions below, which correspond to the specifications in our photographic documentation:
- Total length of the base: 93 mm
- Spacing between mounting holes (centre-to-centre): 81 mm
- Length of the top edge: 37 mm
The guide is made from highly durable black plastic, which is exceptionally resistant to abrasion, pressure and the harsh conditions found in a professional workshop.
AZ Workshop quality guarantee
At azworkshop.eu, we fully understand that every minute of machine downtime is a loss for your business. We offer only tried-and-tested, durable spare parts for tyre changers, wheel balancers and vehicle lifts. A simple two-bolt mounting system means that replacing a worn guide is a matter of seconds. Choose our product and restore your machine to full working order and reliability.
