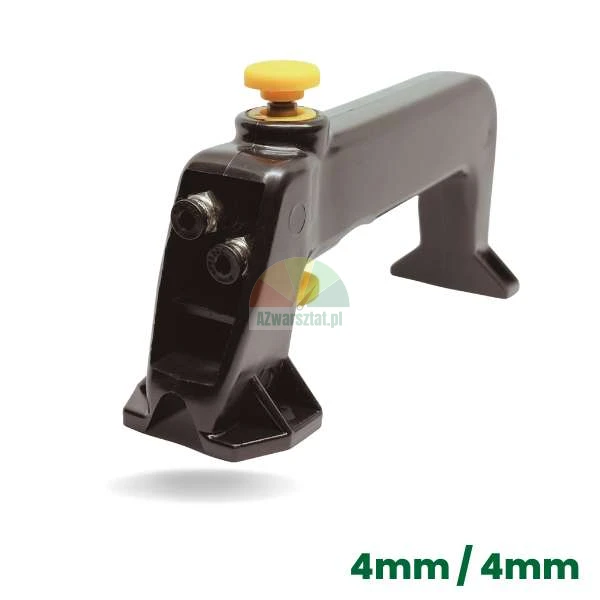

Handle with valve - complete (4 mm hose connection)

The professional valve handle is a reliable spare part for tyre changers and workshop equipment, where precise control of air or fluid flow through hoses with a 4 mm diameter is essential. Made of corrosion-resistant steel, powder-coated or lacquered, the product guarantees durability and safe use even in demanding workshop conditions.

Ideal for tyre changers as well as pneumatic, hydraulic and water systems - wherever reliability and fast flow handling are important.

Product highlights:

Type: complete handle with valve, model M-RACZ-0003.
Mounting shaft thickness: 4 mm - compatible with 4 mm hoses.
Material: corrosion-resistant steel, lacquered or powder-coated.

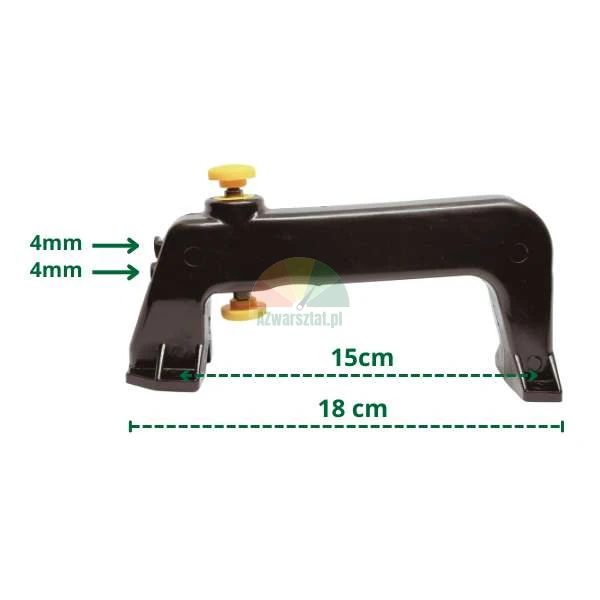

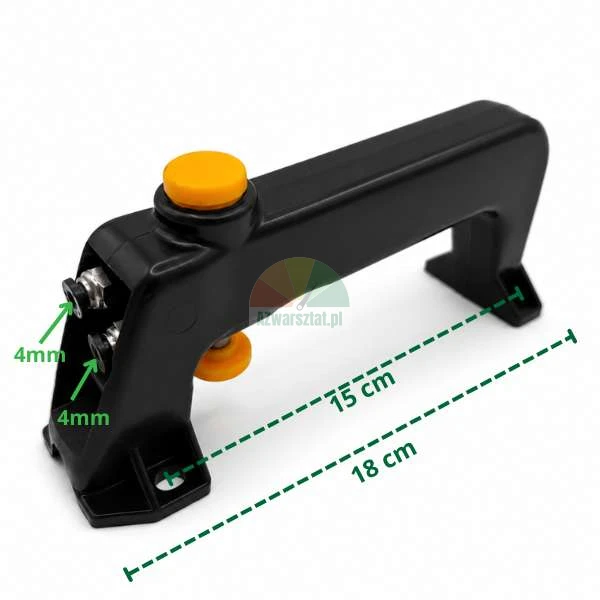

Height to centre of holes: 15 cm.
Base width: 4.8 cm; width to centre of holes: 3.7 cm.
Colour: black or red (depending on version).
Finish: resistant to mechanical damage.
Valve: control valve, with the option of connecting a pressure gauge, continuous operation mode, optional child lock.

Safety and convenience: the ergonomic handle provides a secure grip and comfort, while the valve allows quick opening and closing of the flow - all for maximum control and user safety.

Application:

Tyre changers and workshop equipment requiring manual control of air or fluid flow through 4 mm lines.
Ball valves, pneumatic, hydraulic and water systems.
Technical systems requiring fast and safe flow opening/closing.

Why choose this product?

Versatility: fits many models of tyre changers and technical systems.
Durability: steel construction resistant to corrosion and damage.
Easy to operate: ergonomic handle and intuitive valve.
Safety: optional child lock, continuous operation.

The complete handle with valve is a guarantee of reliability and comfort in any professional vehicle workshop!

Basic technical data:

Type	Valve handle, complete
Mounting shaft thickness	4 mm
Material	Corrosion-resistant steel
Height to holes	15 cm
Base width	4.8 cm
Width to holes	3.7 cm
Application	Tyre changers, valves, installations
Function	Flow control, safety
Extras	Continuous operation, child lock

Choose a proven solution for your workshop - opt for quality, durability and safety!
