Pressure gauge 12.7mm thread (0-25bar)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: U-MANO-0002
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
Pressure gauge 0-25 bar, 12.7 mm (1/4") thread - for workshop machines
High-quality analogue pressure gauge for precise pressure measurement in pneumatic and hydraulic systems. Ideal as a spare part in workshop equipment such as:
- tyre changers,
- wheel balancers,
- car jacks.
The universal 1/4 inch (12.7 mm) thread ensures easy installation on most standard workshop equipment. The specialised design also allows use on machines requiring a non-standard connection.
Key features and technical specifications:
- Measuring range: 0-25 bar (0-350 PSI)
- Measuring units: bar, PSI, kg/cm², kPa

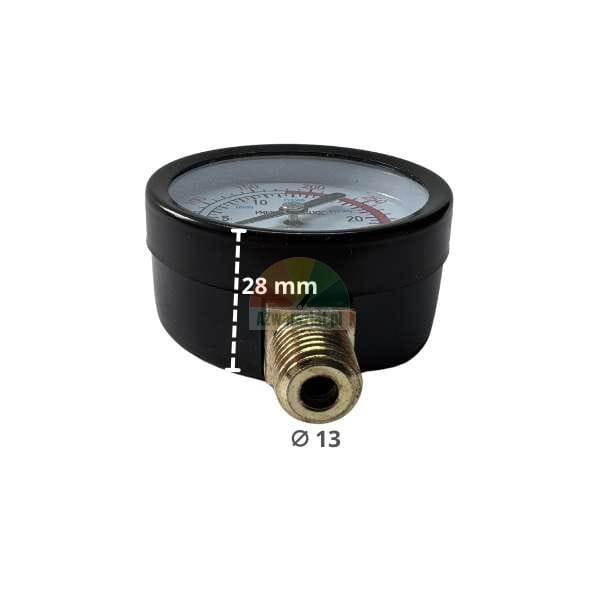

- Connection thread: 1/4" (12.7 mm) - bottom, brass

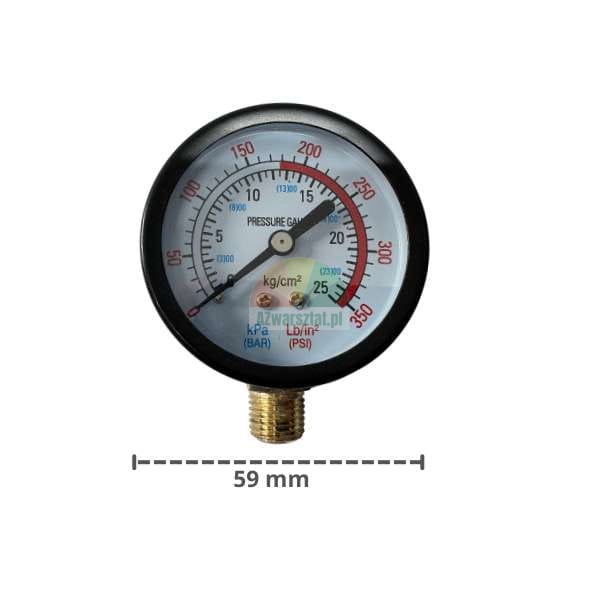

- Dial diameter: 59 mm - compact design
- Housing material: metal with black finish
- Type: analogue, dry pressure gauge
Thanks to its compact dimensions and robust design, the pressure gauge is ideal for use in harsh workshop environments, providing an accurate and reliable pressure reading.
Application and benefits:
The pressure gauge is used in equipment requiring monitoring of operating pressure. Its universal thread and vibration resistance make it an ideal choice for both professional service centres and smaller workshops.
✅ Measuring precision
✅ Resistance to environmental conditions
✅ Easy mounting thanks to 1/4" thread
✅ Universal application
Product code: U-MANO-0002
Product photo:

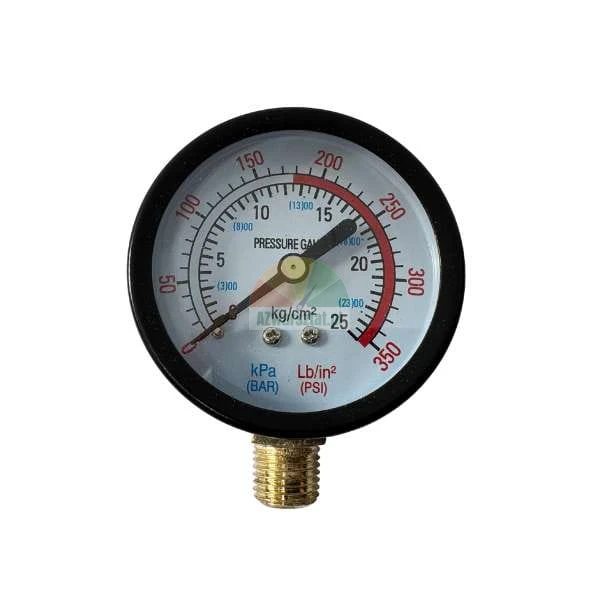

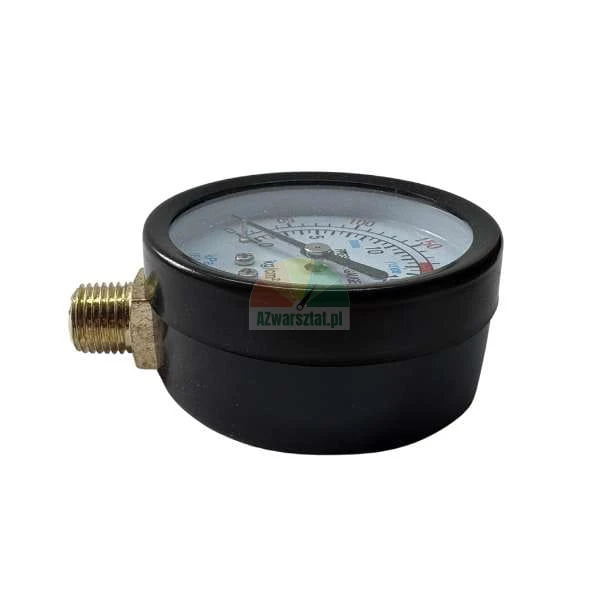

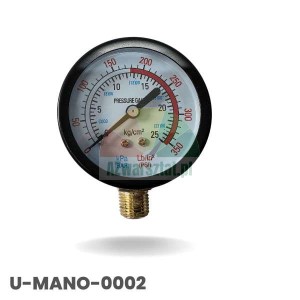

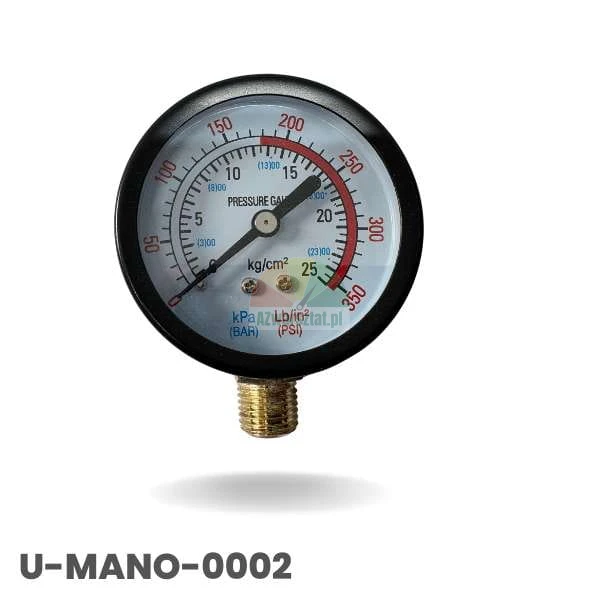

Pictured: analogue pressure gauge with a dial diameter of 59 mm, with 1/4" (12.7 mm) bottom connection.
Product safety
Manufacturer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
