Pressure gauge 13mm thread (10bar/150PSI)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: U-MANO-0001
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

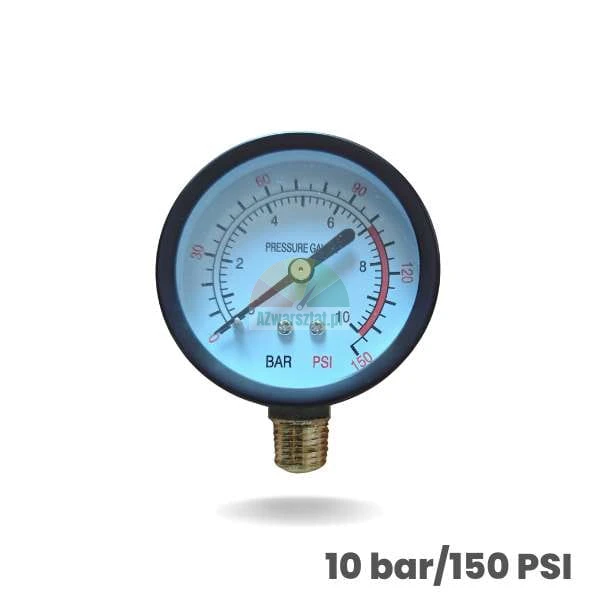

Pressure gauge 13mm thread (10 bar / 150 PSI)
The 13mm (1/4" BSP) threaded pressure gauge is a professional measuring element designed for precise pressure monitoring in pneumatic and hydraulic systems. It is ideal for use on tyre changers, wheel balancers and vehicle lifts.
Measuring range: 0-10 bar (0-150 PSI) - a universal choice for most workshop and industrial applications. Allows precise pressure control in everyday work.
- Thread diameter: 13 mm (1/4" BSP, male) - the most common standard in the industry.
- Dial diameter: 59 mm - easy-to-read scale facilitates quick and accurate reading.
- Housing: robust metal construction, resistant to shock and mechanical damage.
- Units of measurement: bar and PSI - convenient reading in the two most commonly used systems.
- Accuracy class: 1.6 - guarantees reliable and repeatable measurement.

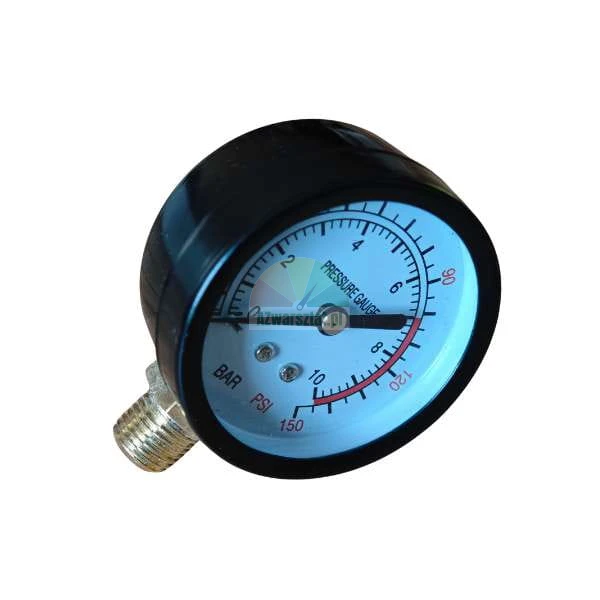

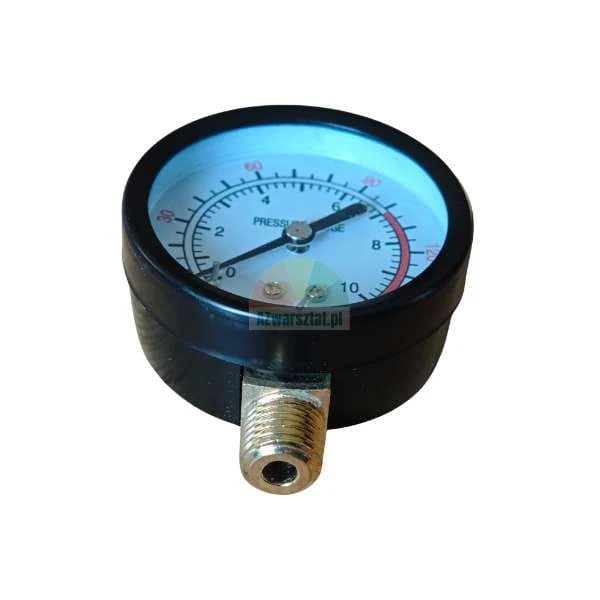

- Connection type: radial (bottom) or rear - easy installation in typical systems.
- Maximum operating pressure: 10 bar / 150 PSI.
The pressure gauge is designed for measuring the pressure of air, water and other chemically non-aggressive media that do not react with copper alloys.
An ideal choice for vehicle service shops, tyre workshops and users looking for robust spare parts for workshop machinery.
Product highlights:
- Robust construction - resistant to shock, vibration and intensive use.
- Easy-to-read scale in bar and PSI - quick and precise reading.
- Easy installation thanks to the standard 13 mm (1/4" BSP) thread.
- Universal use in workshop machines: tyre changers, wheel balancers, vehicle lifts.
- Long service life - high quality workmanship ensures trouble-free operation even under difficult conditions.
The 13mm thread pressure gauge (10 bar / 150 PSI) is a proven choice for professionals and demanding users who value reliability, precision and ease of use. Choose a proven pressure gauge for your workshop and be sure of accurate measurements every day!

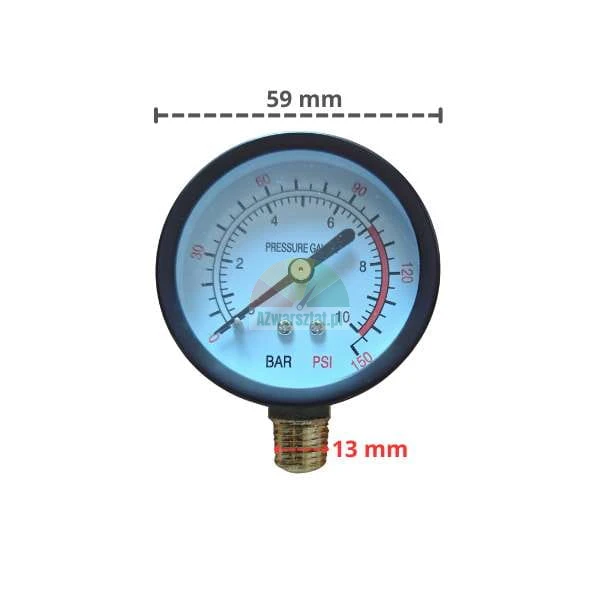

Pressure gauge with 13 mm (1/4" BSP) thread, 59 mm dial diameter, compact and robust design.
