Balancer belt black 86.5cm / 1.4cm wide (6 humps, 5 grooves)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: W-PASE-0012
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

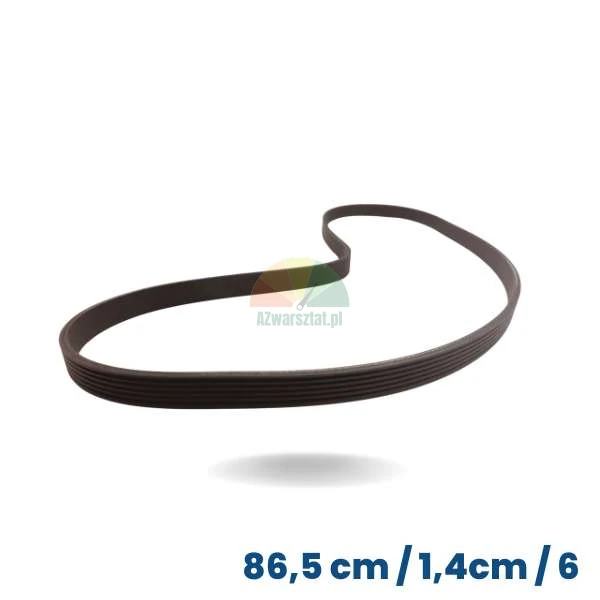

Wheel balancer belt, black, 86.5 cm / 1.4 cm – 6 ribs, 5 grooves
Black wheel balancer belt, 86.5 cm long, for driving wheel balancers in professional workshops. The Poly-V type multi-groove design ensures stable transmission from the motor to the balancer shaft, resulting in precise and repeatable wheel balancing.
Application and function
The belt acts as the drive belt of the wheel balancer – it is responsible for transmitting the drive from the motor to the balancer shaft, enabling smooth wheel acceleration and accurate unbalance measurement. It is used as a replacement for the original belt in the event of wear, breakage or slippage, restoring full efficiency to the machine and quiet, stable operation.
Key belt dimensions and geometry

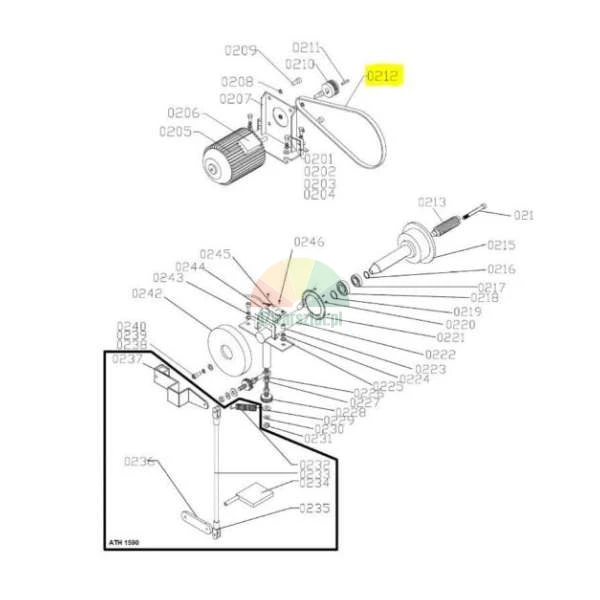

This model features dimensions precisely matched to the drive train of ATH balancers:
- Overall length: 865 mm (86.5 cm)
- Width: approx. 1.4 cm (14 mm)
- Type: Poly-V (grooved) multi-ribbed V-belt
- Number of ribs: 6
- Number of grooves: 5
- Colour: black
The Poly-V multi-groove design with 6 ribs and 5 grooves provides a large contact surface with the pulleys, which reduces slippage and allows efficient torque transmission with a compact belt width.
Material and durability
The belt is made of high-quality plastic with increased abrasion and tensile resistance for use in balancer drives. Comparable replacements use fibre-reinforced rubber, which increases fatigue resistance and ensures stable performance over a long period of time.
Adequate flexibility and a reinforced belt construction minimise the risk of breakage during frequent starting and braking of the balancer drum – crucial in intensive tyre service.
Advantages of using this belt in the workshop
- Restores the balancer to full capacity after the original belt has broken or worn out.
- Stable and quiet drive transmission – reducing vibration and slippage during balancing.
- Easy replacement – installation requires no special tools or drive train modifications.
- Economical replacement – a more affordable alternative to original service parts, while maintaining high functionality.
When is it worth changing the belt?
A belt change on a balancer should be considered when there are:
- signs of cracks, chafing or fraying on the belt surface,
- perceptible slippage when the drum starts to run,
- irregular running, vibration or noise from the drive area,
- loss of repeatability of balancing results (measurement accuracy problems).
Selecting the correct length (86.5 cm), width (1.4 cm) and profile (6 ribs / 5 grooves) is crucial – a belt that is too loose or too short can cause excessive load on the bearings or drive slippage.
By choosing this belt, you gain a solid, proven replacement that allows you to maintain the high performance of your balancer without investing in expensive original parts – the ideal solution for workshops that focus on reliability and economy.
