Balancer brake resistors 100W / 10Ω
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: W-HAMU-0003
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

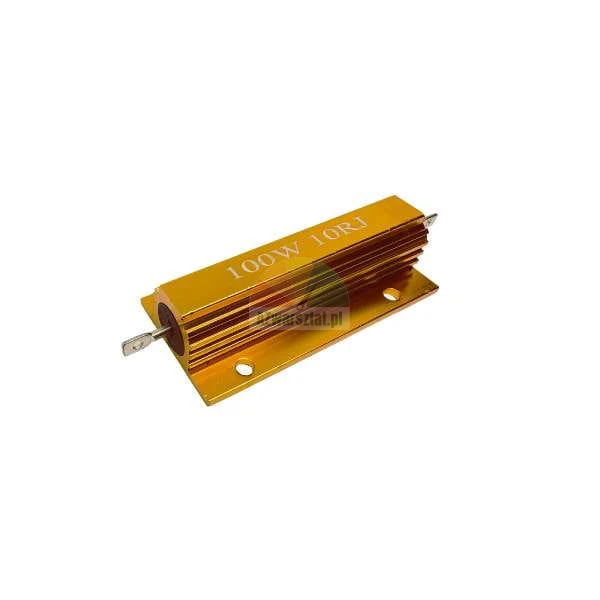

Wheel Balancer Brake Resistor 100W / 10Ω
The 100W brake resistor with a resistance of 10Ω is a key component used in wheel balancers. Its function is to dissipate energy during braking, ensuring smooth and safe operation of the machine. Thanks to its high-quality construction and robust aluminium housing, this resistor offers excellent heat dissipation, which increases its durability and reliability.
Technical specifications:
- Power: 100W
- Resistance: 10Ω
- Accuracy: ±1%
- Temperature coefficient: +100ppm/°C
- Material: aluminium housing
- Connection type: Wire lead

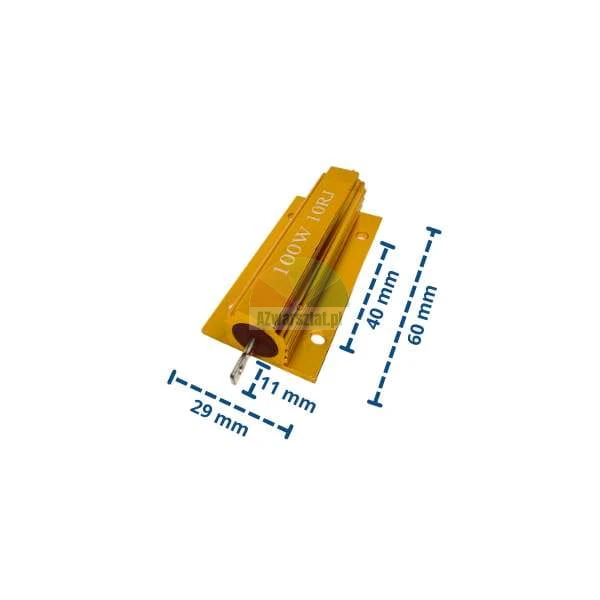

- Dimensions:
- Overall length: 60 mm
- Distance between holes: 40 mm
- Shank length: 11 mm
- Housing width: 29 mm
High quality and durability: The aluminium housing ensures efficient heat dissipation, resulting in a long service life and reliable operation.
Application:
The brake resistor is an essential component in the braking system of wheel balancers, preventing sudden stops and protecting machine components from overload. Compatible with many wheel balancer models, it is the ideal solution for garages and vehicle repair workshops.
Convenience and reliability: Thanks to its high quality and durability, this resistor guarantees long-lasting use, even under intensive working conditions.
Quality guarantee: A product made from the highest quality materials, ensuring a long service life and reliable operation.
Order today and ensure the reliable operation of your wheel balancer!
