Set of cones for balancing machine with 36mm shaft
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: W-STOZ-0010
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

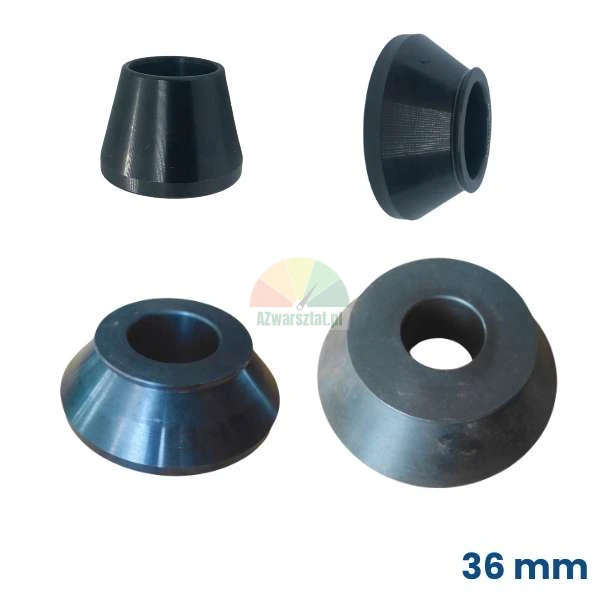

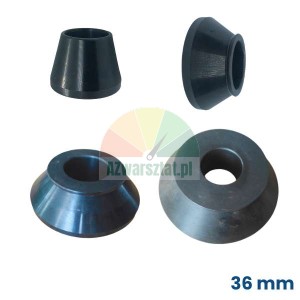

Set of cones for wheel balancers with 36 mm shaft - 4 pieces
A professional set of centring cones designed for wheel balancers with a 36 mm diameter shaft. The ideal choice for workshops that value precision, reliability and versatility of use.
Centring cones are a key component of any wheel balancing process - without them you will not achieve a correct result!
Key product features:
- Compatibility: Fits all wheel balancers with a 36 mm shaft

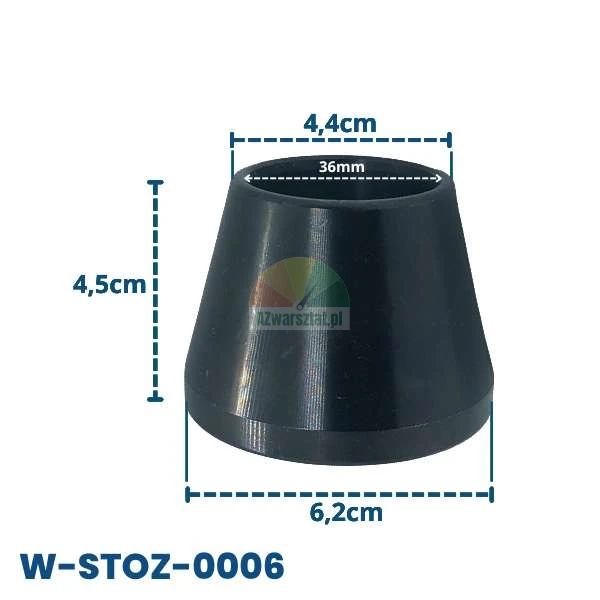

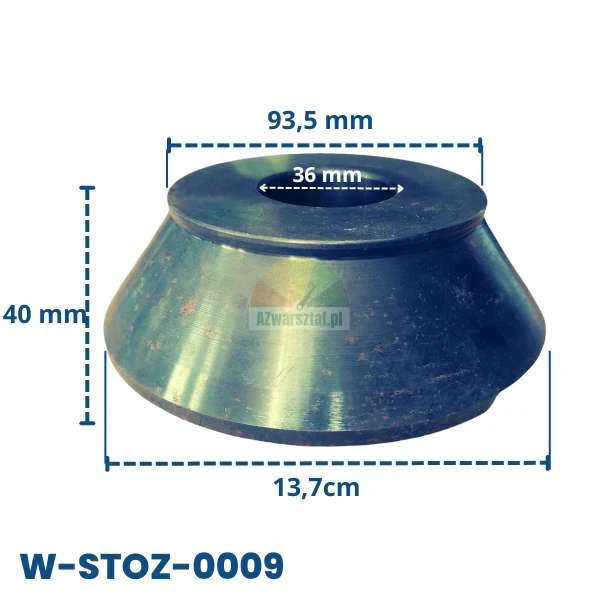

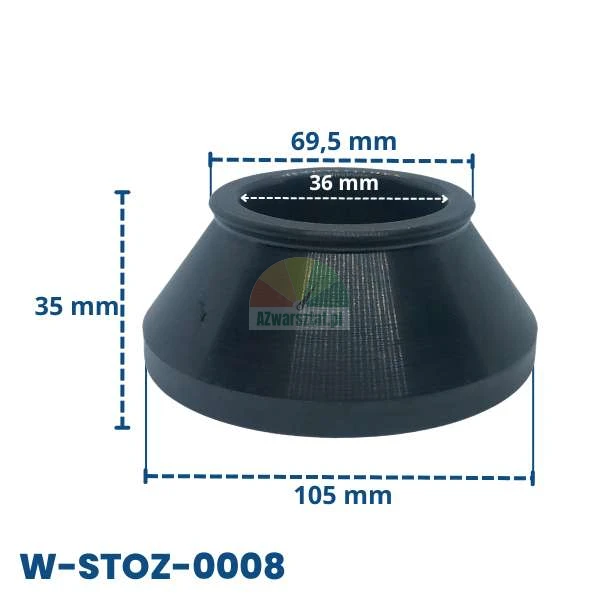

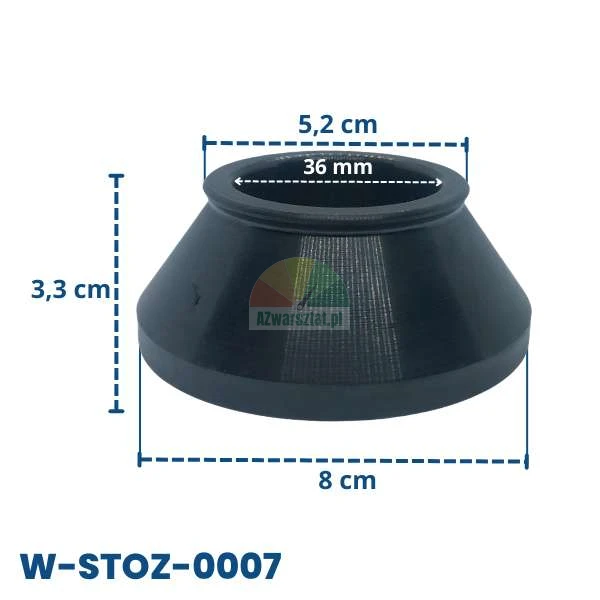

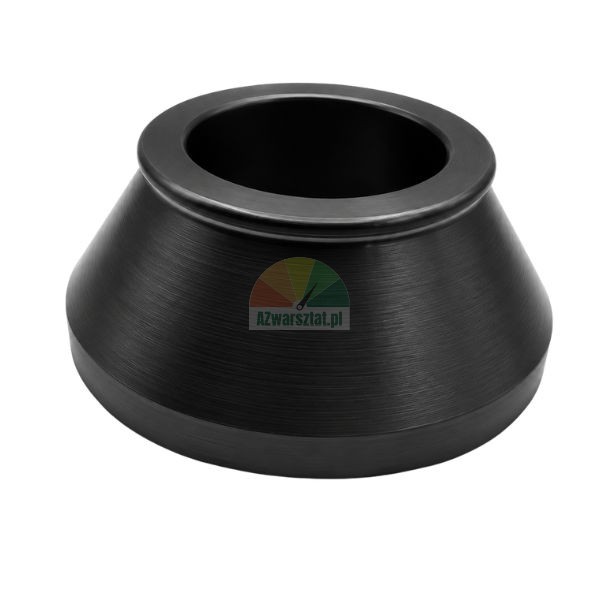

- Centring range: The 4 cones cover rim centre bore diameters from 44 to 138 mm (44-62, 52-78, 79-105, 93-138 mm)
- Material: High-quality steel - chrome-plated or hardened, resistant to corrosion and mechanical damage
- Precision: Precise manufacture guarantees axial, stable mounting of the wheel on the wheel balancer, eliminating measurement errors
- Versatility: The set allows the handling of most car and van rims.
- Set weight: 5 kg - robust, durable construction
Why choose this set?
- Trouble-free centring - the cones allow the wheel to be quickly and securely fitted to the balancer shaft.
- Reduced errors - elimination of wheel deviation from the rotational axis, resulting in balancing accuracy and driving comfort.
- Versatility - supporting a wide range of centre bore diameters, both on cars and vans.
- Durability - steel construction to withstand intensive use in workshop conditions.
Without the centring cones it is not possible to balance the wheel correctly - a guarantee for the safety and comfort of your customers!
Technical specifications
| Shaft diameter | 36 mm |
| Cone range | 44-62 mm, 52-78 mm, 79-105 mm, 93-138 mm |
| Set contains | 4 pieces |
| Material | Steel (chrome-plated/hardened) |
| Set weight | 5 kg |
Compatibility
- Wheel balancers with 36 mm shaft
- Example brands: Kupczyk (KW-700LHB, KW-667, KW-668, KW-910 S, KW-910/920, KW-950), REDATS (models with 36 mm shaft), other universal workshop wheel balancers
Application
Centring cones are indispensable for correct wheel balancing - they ensure axial, stable mounting of the rim on the wheel balancer shaft, eliminating the risk of measurement errors and increasing the quality of workshop services.
Choose a proven set of cones for your 36 mm wheel balancer!
Product safety
Manufacturer
Jin Hoi International Trading Ltd
Office Tower 625 and 639 Nathan Rd
Rm1101-02.11 Hong Kong, China
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Importer
LIVRE RAPIDEMENT SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Osiedle Mieszka I-go 4/46
26-340 Drzewica, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
It pairs well

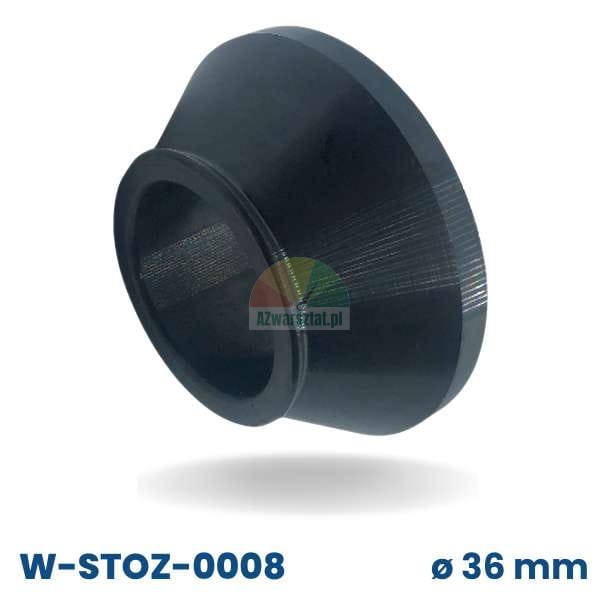

Balancer cone with balancer shaft diameter 36mm (second largest) (7cm - 10.5cm)
