Set of cones for balancing machine with 40mm shaft
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: W-STOZ-0005
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
Professional set of centring cones for wheel balancer - 40mm shaft
In the offer of azwarsztat.pl shop, we present a reliable set of cones for a wheel balancer with a 40 mm shaft. This is an absolutely essential piece of equipment for every professional tyre workshop, which guarantees precise centring of steel and aluminium wheels on the machine.
Perfect wheel balancing starts with proper centring! Our cones are characterised by high resistance to abrasion and deformation, which directly translates into a long service life and precise readings of the wheel balancer.
Contents and specifications of the set

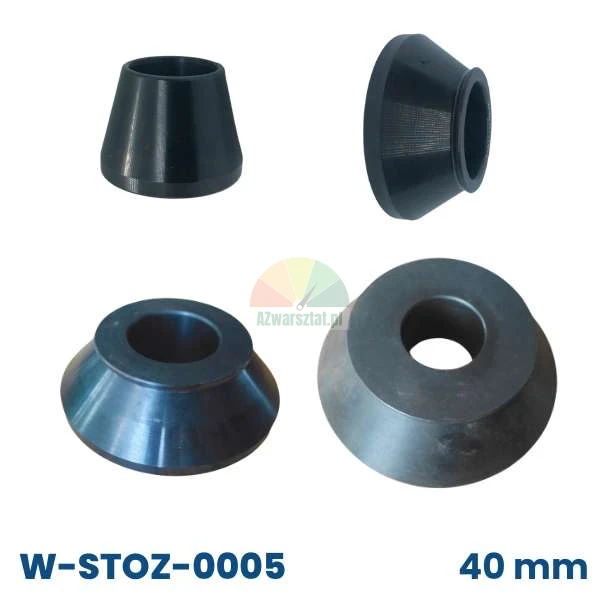

The set includes 4 solid centring cones of various dimensions, allowing the handling of the vast majority of passenger car and light commercial vehicle wheels. All components have been precisely manufactured and perfectly fit a 40 mm (4 cm) diameter shaft.
Detailed dimensions of the cones in the set:
- Cone No. 1:

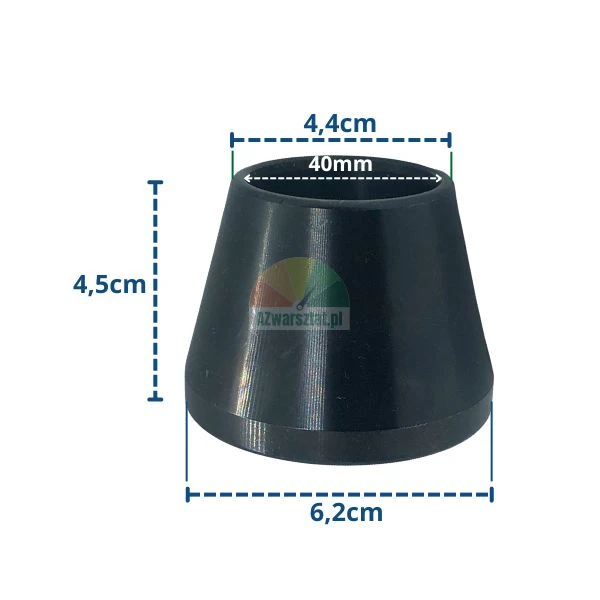

Centring range (outer diameter): 4.4 cm to 6.2 cm
Overall height: 4.7 cm
Shaft hole diameter: 4 cm - Cone No. 2:

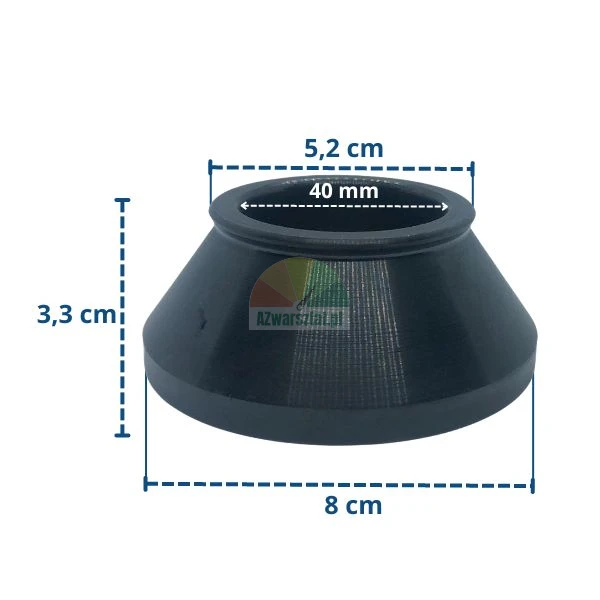

Centring range (outer diameter): 5.2 cm to 7.8 cm
Overall height: 3.8 cm
Shaft hole diameter: 4 cm - Cone No. 3:

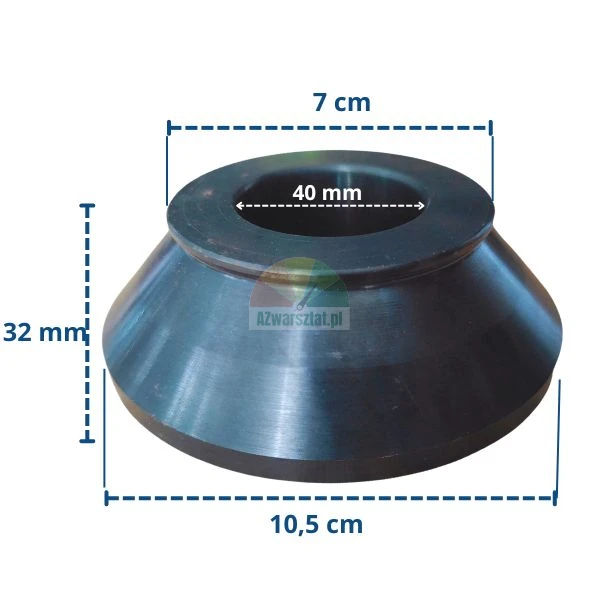

Centring range (outer diameter): 6.9 cm to 10.5 cm
Overall height: 3.8 cm
Shaft hole diameter: 4 cm - Cone No. 4:

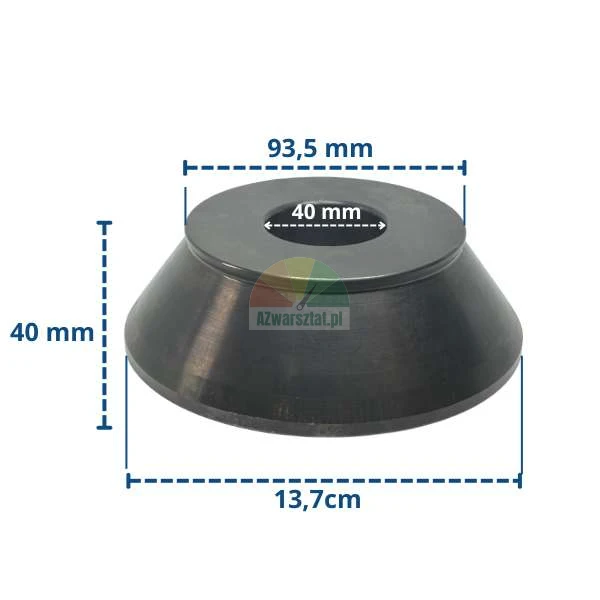

Centring range (outer diameter): 9.3 cm to 13.7 cm
Overall height: 4.2 cm
Shaft hole diameter: 4 cm
Reliable equipment from AZ Workshop
We are specialists in supplying top quality spare parts for vehicle lifts, tyre changers and wheel balancers. By choosing the presented set at AZ Workshop, you are assured of a perfect fit and safe and efficient operation in your tyre service.
Product safety
Manufacturer
Quanzhou Sunshine Solar Technology Co. Ltd
No 18., Solar Industrial Park, Fengze District
Fujian Quanzhou, China
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Importer
LIVRE RAPIDEMENT SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Osiedle Mieszka I-go 4/46
26-340 Drzewica, Poland
