Invento replacement: 2-speed rotary switch for TC 720, TC 722, TC 724 2V assembly machines
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: invento-0027
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

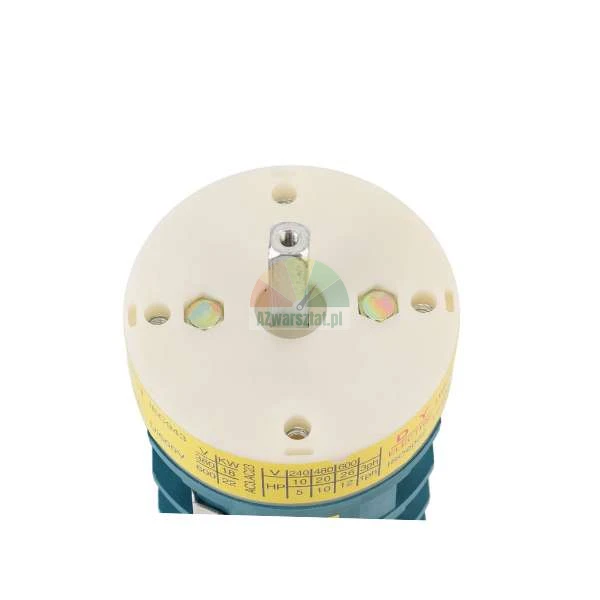

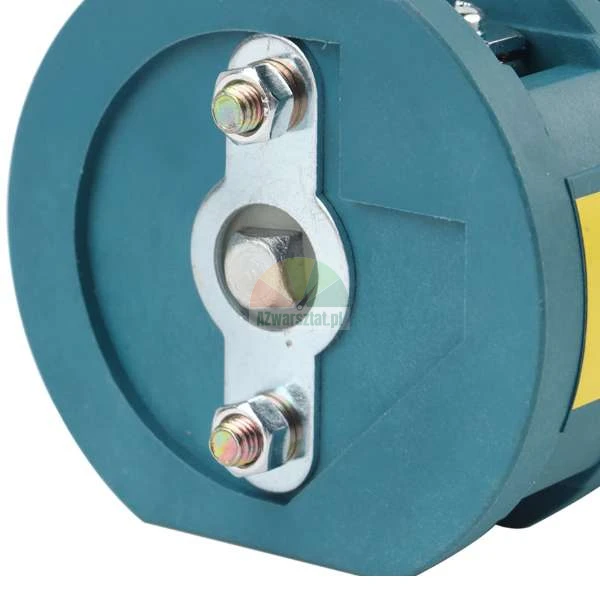

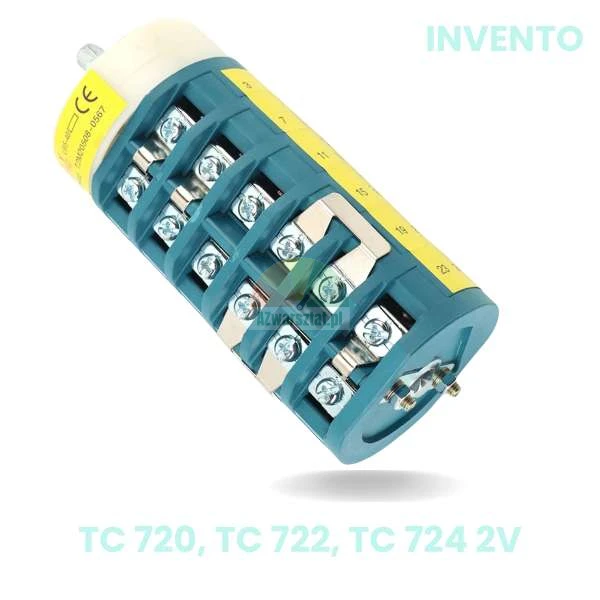

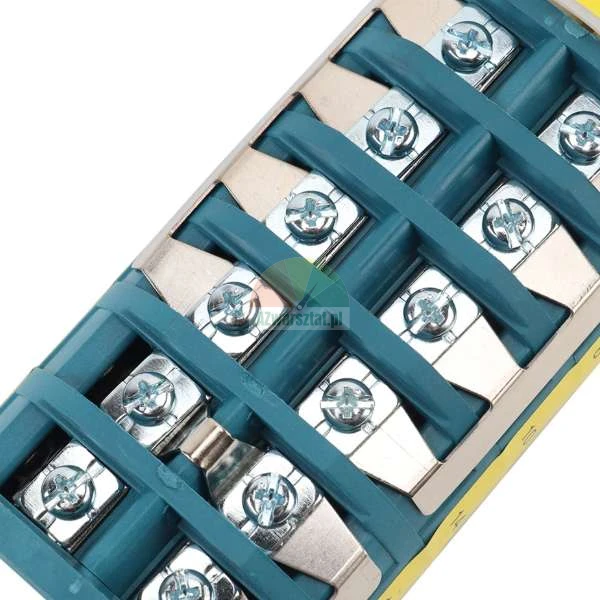

Invento replacement - two-speed rotary switch for TC 720, TC 722, TC 724 2V wheel assemblers
The two-speed rotary switch is a key component of the wheel assemblers, responsible for controlling the two-speed drive of the working table on the INVENTO TC 720, TC 722 and TC 724 2V models.
This high-quality replacement for the Invento provides a smooth selection of table speeds - slow for precision work and faster for dynamic tyre mounting and dismounting.
Looking for an effective solution to your assembly table rotation problems? This 2-speed rotary switch has been designed specifically for INVENTO TC 720, TC 722, TC 724 2V assembly machines - a reliable and proven replacement for the original switch.
Application and compatibility
The switch is designed for Invento passenger assembly machines with a two-speed assembly table. It is responsible for selecting the speed depending on the type of wheel and the work stage, which translates into:
- safer handling of fragile alloy wheels,
- faster handling of standard steel wheels,
- greater operator comfort and repeatability.
The switch is compatible with, among others, assembly machines:
- INVENTO TC 720 2V,
- INVENTO TC 722 (two-speed version),
- INVENTO TC 724 2V.
The ideal choice for workshops wishing to quickly restore the full functionality of their assembly unit without investing in a new machine - simply replacing the speed switch.
Key technical parameters of the switch
- Supply voltage: 380 V (3-phase)
- Rated current: 40 A
- Function: to control the 2-speed drive of the assembly table
- Operating type: 2-speed rotary switch
- Body length: 147 mm
- Body diameter: 70 mm
- Distance between mounting holes: 60 mm
- Shank width: 8 mm
- Shank length: 30 mm
- Version colour: blue
Before purchasing, compare the dimensions of the body and the pin with the original switch on your fitter - a guarantee of a perfect fit and problem-free installation.
Advantages of using this replacement
- Trouble-free table operation - stable switching between two speeds.
- Robust construction - adapted to demanding workshop conditions.
- Quick installation - matching dimensions and type of attachment make it easy to replace the old component.
- Economical repair - you only replace the switch, not the entire drive or machine.
- Operator comfort - smooth gear change increases ergonomics.
Where will this switch prove its worth?
The replacement speed selector is recommended for:
- vulcanisation workshops servicing passenger and commercial wheels,
- vehicle service stations
- car tyre service workshops working with Invento fitters,
- companies servicing and reconditioning tire changers.
If your Invento TC 720, TC 722 or TC 724 2V tyre changer has lost one of its speeds or the table is unstable, replacing the 2-speed rotary switch is often the quickest and cheapest way to restore full functionality.
Installation and service instructions
Installation of the switch should be carried out by a qualified service technician or electrician, observing the safety rules for 3-phase installations. Before replacing:
- disconnect the assembler from the power supply,
- check the wiring of the old switch,
- compare the mounting hole spacing and stem dimensions.
If you have any doubts as to the compatibility of the switch with your assembly machine - please contact our service department with the model of the machine and a photo of the old switch. We will help you find the right part.
