Invento replacement: air distributor for TC 720, TC 722, TC 724 assembly machines

Secure payment

30 days to return

Fast shipping

€34.47

Shipping costs are not included in the price.

Quantity

pc.

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

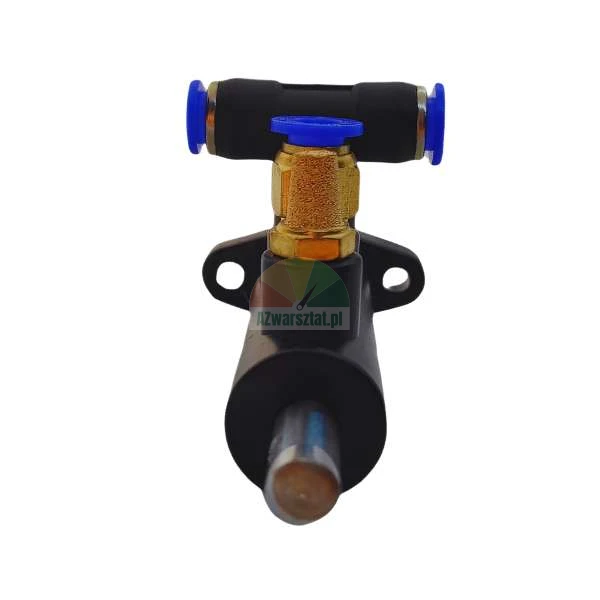

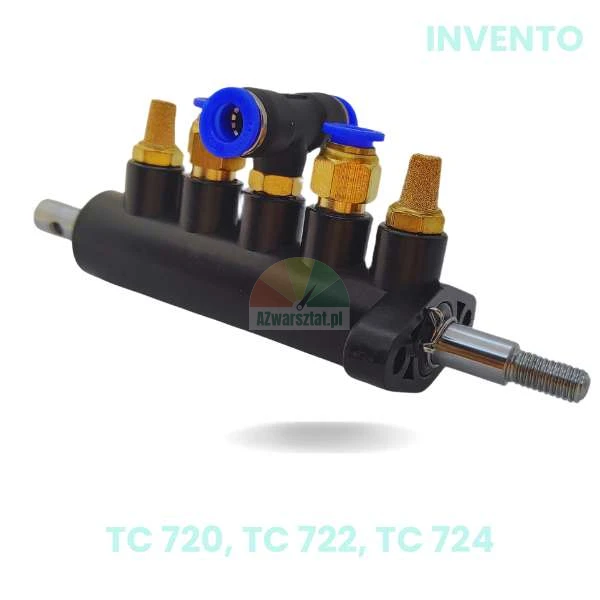

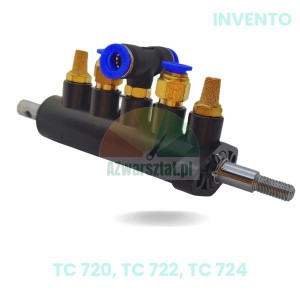

Invento Replacement: Air Manifold for Tyre Changers TC 720, TC 722, TC 724

Robust replacement for the bead-breaker air manifold designed for TC 720, TC 722, TC 724 tyre changers. It is responsible for precise distribution of compressed air within the pneumatic system, ensuring reliable operation of the bead breaker and other functions of the tyre changer.

Ideal when the original Invento manifold is worn, leaking, or damaged - without the need for costly replacement of the entire assembly.

Use in the tyre changer

The manifold is mounted in the pedal area of the tyre changer and is a key element of the pneumatic control, working in conjunction with the pedals to direct compressed air to the appropriate circuits:

precise breaking of the tyre bead,
secure locking of the rotary table,
stable operation of the mounting arm.

An efficient air manifold means smooth operation of the entire tyre changer, shorter wheel service times and less station downtime.

Technical specifications (Type B - black valve manifold)

Dimensions and design:

Overall body length: 155 mm
Shaft diameter: 8 / 10 mm
Mounting spacing: 36 mm
Compact design for easy installation in the pedal housing

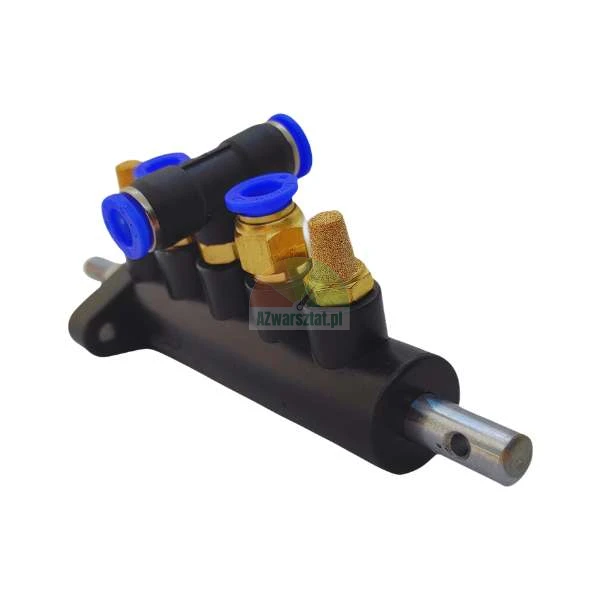

Pneumatic connections:

5 pneumatic connections with brass fittings
Blue-coloured quick-connect couplings - easy hose identification
Design optimised for smooth air flow

Advantages and benefits in the workshop

High durability - manifold made of robust materials to withstand intensive use.
Brass fittings ensure very good air-tightness of the pneumatic connections.
Stable operation of the bead breaker - reliable breaking of the tyre bead, without "jerking" and power drops.
Easy installation and servicing - the smart design makes it easy to replace the old manifold in a short time.
Compatible - fitted as an Invento replacement for the popular TC 720, TC 722, TC 724 tyre changers.

By investing in a new air manifold, you restore your tyre changer to full working order and reduce the risk of air system leaks, which can lead to a loss of bead-breaker power and unsafe operation.

When to replace the manifold?

the bead breaker performs poorly or "hangs up",
the rotary table does not lock properly,
the mounting arm reacts with a delay,
you hear air leakage in the area of the tyre changer pedals,
there is visible damage to the body or the quick-connect couplings.

In such cases, replacing the manifold with a new, sealed Invento replacement is the fastest and most cost-effective solution to maintain high productivity in the workshop.
