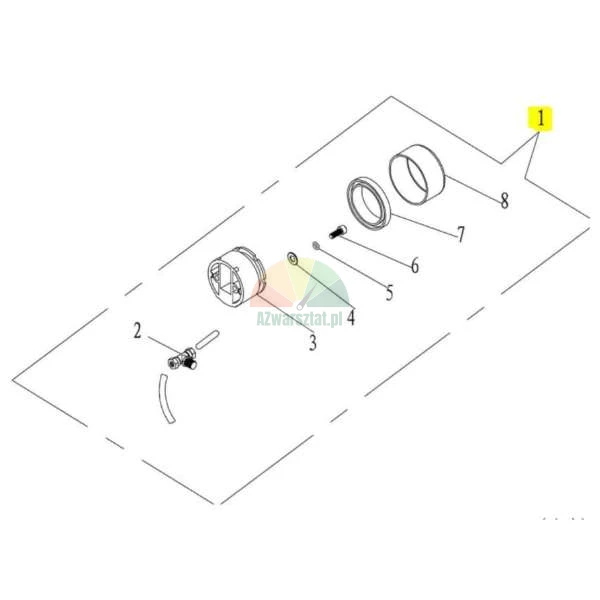

  • Exploded view of the complete foot lock actuator for Invento TCS 524 tire changer
  • Metal cylindrical cap with a white plastic base and threaded connection port
  • White plastic impeller or pump filter component, top view on a white background.
  • Metal cap with a white plastic base
  • Metal cap with a white plastic base and a threaded hole
Go to Product feedback
Manufacturer: AZ (go to products)

Invento replacement: complete foot lock actuator for TCS 524 assembly machine

Secure payment
30 days to return
Fast shipping
Types of payment
with VAT without VAT
Price €30.32
incl. 23% VAT

Shipping costs are not included in the price.

pc.
Shipping time: 24 hours
Share
Ask about the product
Why us?
  • Only real product reviews.
  • Secure online payments.
  • Hassle-free returns within 14 days.
  • A reliable company - we have been on the market for many years.
Platby

Replacement Invento: complete foot lock actuator for TCS 524 assembly tool

The complete foot lock for the Invento TCS 524 is a ready-to-fit kit based on a professional D-type vertical/horizontal actuator. It replaces the original foot lock component, ensuring precise operation of the assembly column and secure retention of the assembly head in the specified position.

Ideal for workshops that want to quickly restore the TCS 524 assembly unit to full function without having to search for individual parts - all in one complete kit.

What is included in the kit?

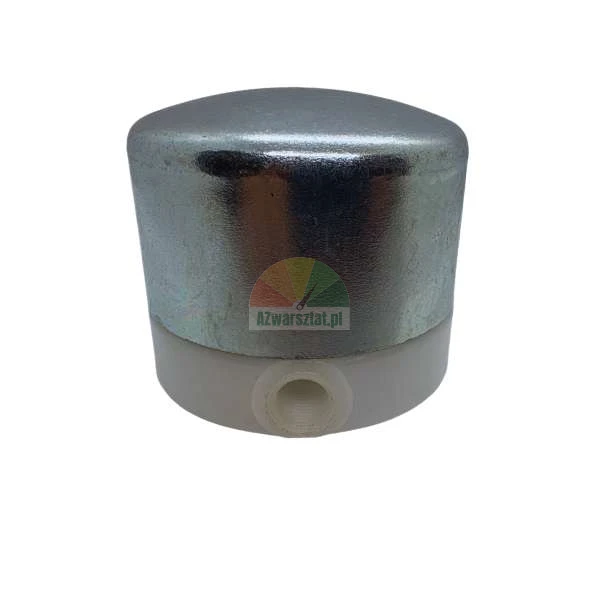

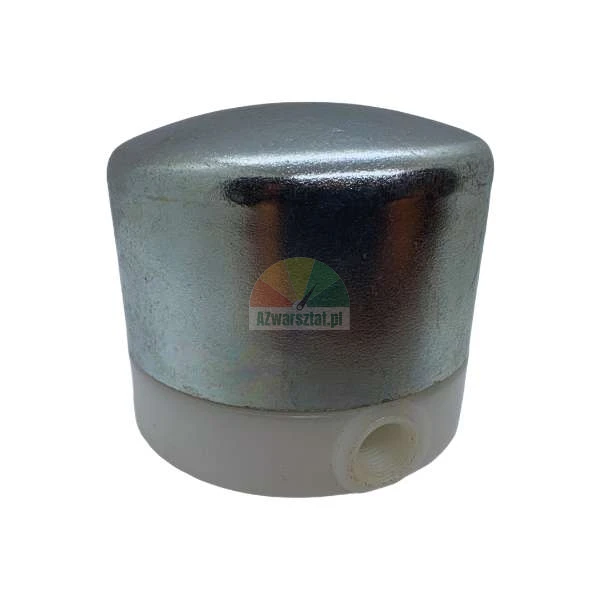

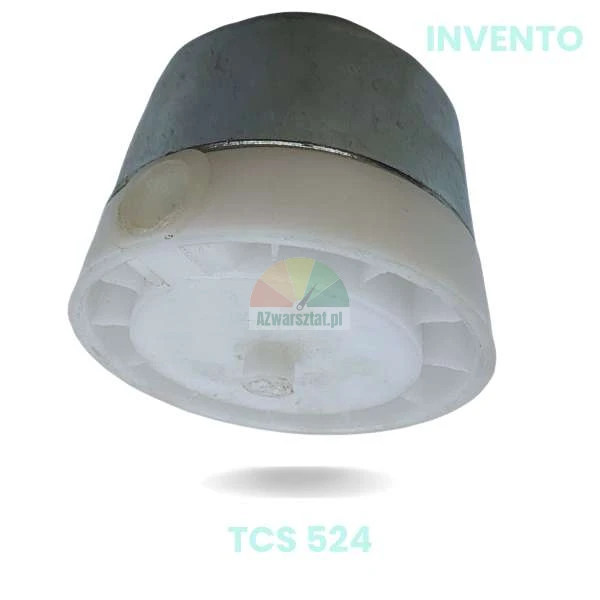

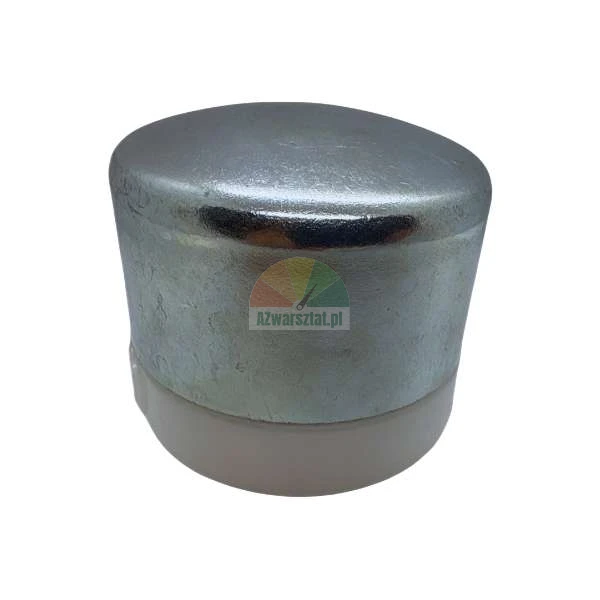

The kit consists of a complete D-type foot lock actuator ("mushroom"), prepared for direct mounting on an Invento TCS 524 assembly machine. It includes

  • Complete vertical/horizontal actuator TYPE D (mushroom)
  • Fastening elements to fit the socket in the assembly body
  • Connection for pneumatic/hydraulic mounting system

Complete vertical/horizontal actuator TYPE D - technical data

  • Outside diameter: 63 mm
  • Overall height: 54 mm
  • Hydraulic connection: 1/8" (approx. 8.5 mm)
  • Mounting socket depth: 7 mm
  • Internal socket diameter: 7.8 mm

Design and build quality

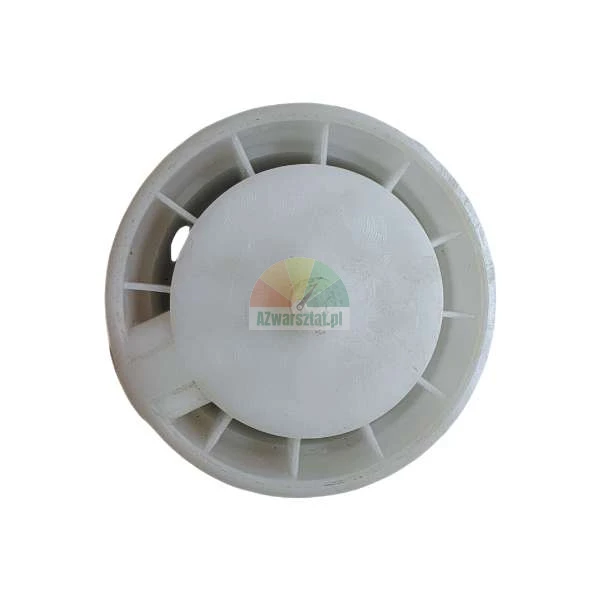

The actuator is constructed from two main parts:

  • Galvanised steel upper dome - corrosion resistant thanks to the galvanic coating
  • Reinforced technical plastic base - resistant to loads and mechanical damage

The metal parts have been protected against corrosion, which translates into a long service life of the cylinder in harsh workshop conditions - moisture, dirt, intensive use.

Function in the Invento TCS 524 fitting machine

The actuator is the key element in the foot and column locking system of the TCS 524 assembly machine. It is responsible for:

  • Precise control of vertical and horizontal movement (vertical and horizontal)
  • Stable locking of the mounting head when working with the wheel
  • Smooth transmission of forces during lifting and pressing of the bead

The replacement has been designed as a direct counterpart to the component used on the Invento TCS 524, so that assembly is quick and the assembler regains full functionality of the column lock.

Mounting system

The actuator is fitted with a specially designed mounting socket with a depth of 7 mm and an internal diameter of 7.8 mm, which ensures stable seating in the base of the mounting column.

The standard 1/8" connection allows for easy and leak-free wiring into the existing TCS 524 installation - without the need for system modifications.

Application and benefits for the workshop

  • Designed for Invento TCS 524 assembly machines (replacement for the original foot lock)
  • Suitable for workshops servicing passenger car tyres, light commercial tyres and those requiring RUNFLAT tyres
  • Suitable for intensive daily use in a professional workshop

Replacing a worn or leaking actuator with this set removes clearances, improves the precision of the locking mechanism and increases the safety of working on the Invento TCS 524 tire changer.

Why choose this replacement?

  • Complete set - no need to select individual parts
  • Performance and geometry matched to the TCS 524 assembly tool
  • Robust, corrosion-resistant design
  • Fast assembly, minimal machine downtime

A practical solution for tyre repair shops wishing to keep their Invento TCS 524 assembly machine in full working order, maintaining the precision of the head lock and the safety of the operator.
