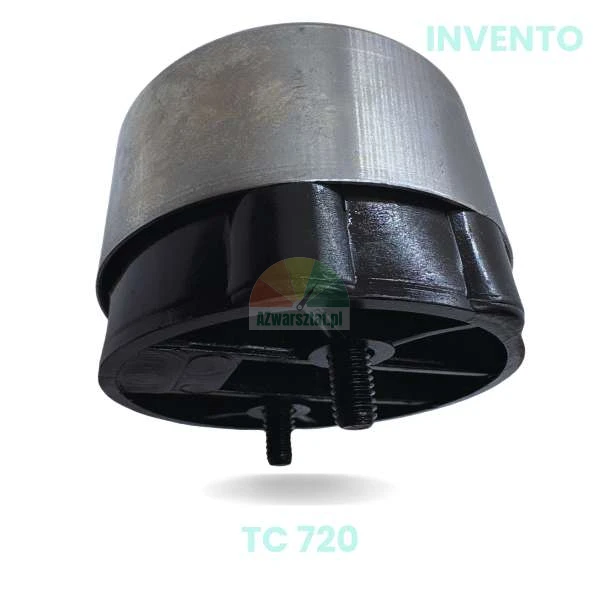

Replacement Invento: Complete locking cylinder - vertical / horizontal for TC 720 tire changer

Complete E-type locking cylinder ("mushroom") for tyre assemblers, designed for vertical and horizontal locking systems on TC 720 assemblers and machines of similar construction. Ideal as an Invento replacement for professional tyre services and garages.

Looking for a ready-to-install replacement locking actuator for the TC 720? This set contains everything you need to quickly restore the smooth operation of the locking system of the mounting arm.

Application and purpose

The actuator is designed as a key component of the assembler locking system, responsible for precise positioning and immobilisation of the working arms in the vertical and horizontal planes. It is suitable for

TC 720-type tyre changers (as an Invento replacement),
E-type lifts/assemblers with similar locking system design,
Automotive workshops, tyre service workshops, vulcanisation centres.

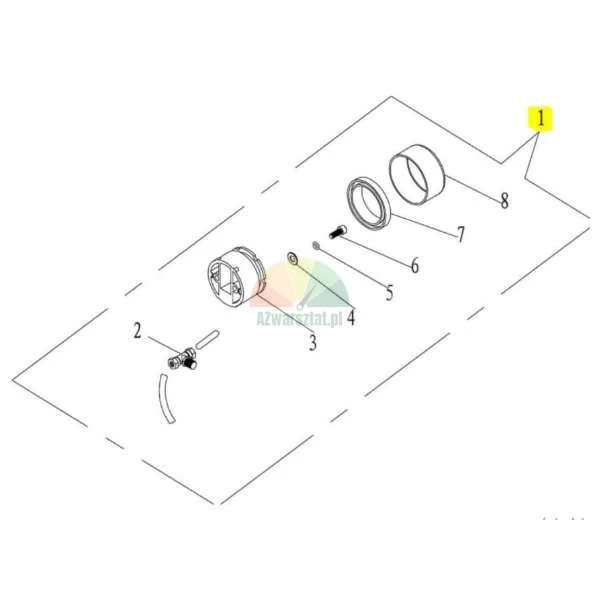

The actuator is the No. 1 position on the assembly diagram of the locking system - its efficiency determines the safety of the assembly unit and the quality of the wheel handling.

Key design features

Robust two-part construction

The actuator has a two-part construction:

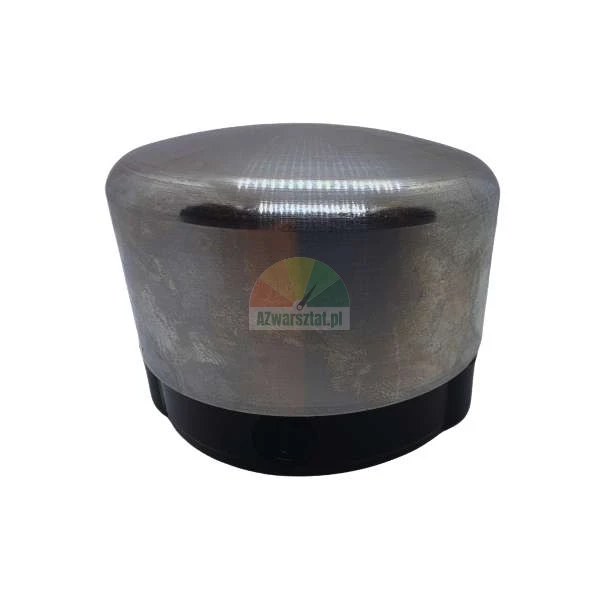

upper dome made of metal with brushed finish - increased resistance to abrasion and mechanical damage,
reinforced base in high-quality technical plastic - stable seating in the machine body.

Steel components have been surface-treated to reduce corrosion in demanding workshop environments (dust, moisture, workshop chemicals).

Smooth movement in two planes

An optimised guidance system is used internally, which enables:

smooth vertical movement (up and down),
precise positioning in the horizontal plane (right-left),
minimised friction and reduced wear on mating components.

The specially designed internal profile extends the life of the actuator, resulting in less downtime and lower maintenance costs for the assembler.

Stable and simple mounting

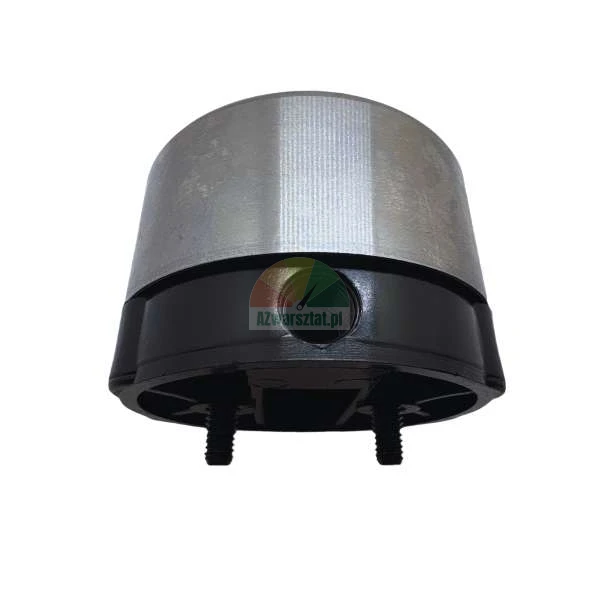

The actuator is equipped with a two-screw mounting system that guarantees secure attachment to the machine body:

mounting screw spacing: 30 mm,
compact dimensions allow easy replacement in an existing installation,

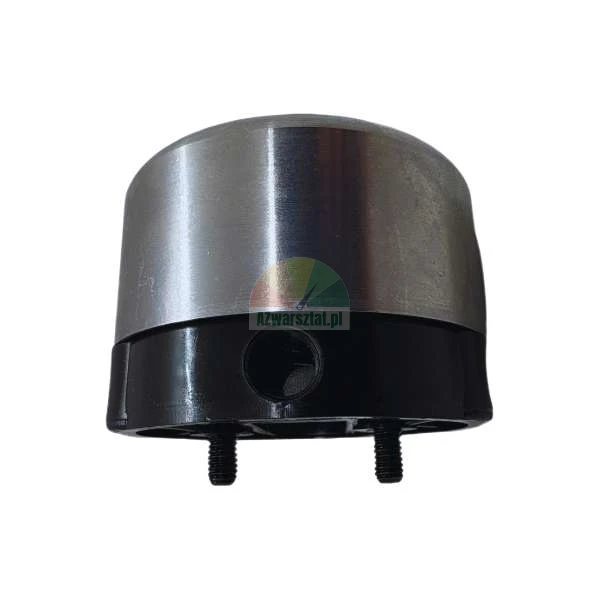

hydraulic connection: 1/8" (8.5 mm) - a standard found on many assembly machines.

As a result, the Invento replacement can be quickly fitted in place of the worn component, without the need to modify the machine body.

Technical specifications

Type: complete vertical / horizontal actuator (mushroom) - TYPE E
Application: locking system for TC 720 and related models of fitting machines
Outside diameter: 69 mm
Overall height: 50 mm
Mounting screw spacing: 30 mm
Hydraulic connection: 1/8" (approx. 8.5 mm)
Construction: Metal dome + reinforced technical plastic base
Application: Intensive use in workshop conditions

Before ordering, compare the dimensions of the actuator (diameter, height, screw spacing and 1/8" connection type) with the component fitted to your fitting machine - this will ensure full compatibility and trouble-free installation.

Benefits for the workshop

Fast recovery of the locking system on the TC 720,
Safe operation - stable arm locking reduces the risk of damage to rims and tyres,
Less downtime - durable construction and optimised guidance increase component life,
Compact dimensions for easy replacement in tight fitting spaces,
Invento replacement - an attractive price alternative with high functionality.

This solution is particularly recommended for workshops that want a reliable locking component for daily, intensive work on passenger car wheels.
