Replacement Invento: Jaw and deflector spring for TCS 521, TC 724 MI assembly machines
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: invento-0024
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

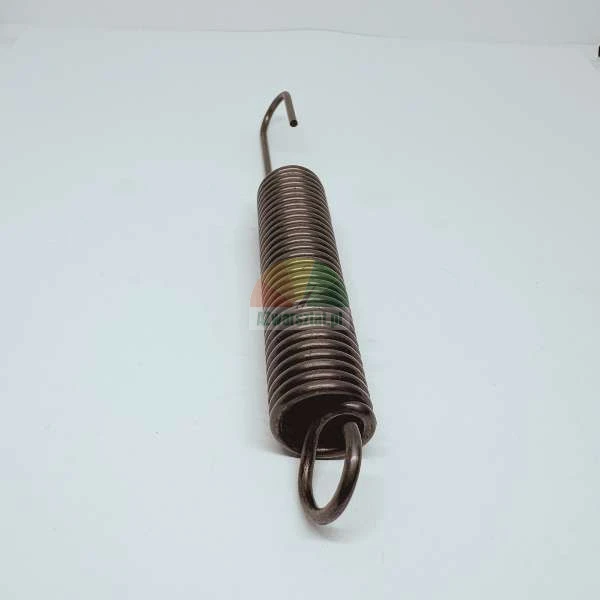

Invento replacement: clamping jaw and bead breaker spring for TCS 521, TC 724 MI tyre changers
High-quality replacement clamping jaw and bead breaker spring for INVENTO TCS 521 and TC 724 MI tyre changers. Ideal for restoring the pneumatic system responsible for the operation of the clamping jaws and the bead breaker in professional tyre service centres and tyre repair shops.
The robust spring with an overall length of approx. 13.7 cm ensures a secure return of the clamping jaws and bead breaker, stable operation of the tyre changer and a reduced risk of breakdowns in intensively used machines.
Replacement application
The spring is intended as a replacement for the original clamping jaw and bead breaker spring on the following tyre changers:
- INVENTO TCS 521 - passenger car tyre changer
- INVENTO TC 724 MI - 24" tyre changer with auxiliary arm.
Also suitable for other workshop and agricultural machines where a component with similar dimensions and working characteristics is required.
Spring parameters and dimensions
The set is based on a spring with parameters similar to:
- Length of working part: approx. 7 cm
- Overall length: approx. 13.7 cm
- Length of the loop: approx. 5.2 cm
- Outer diameter: approx. 1.6 cm
- Material: high-strength spring steel
Before purchasing, compare the dimensions of your old spring with the specified parameters - this will ensure a perfect fit and trouble-free installation in your tyre changer.
Key product features
- Dedicated replacement for the clamping jaw and bead breaker spring for INVENTO TCS 521, TC 724 MI tyre changers
- High mechanical strength - fatigue-resistant spring steel
- Stable operation of clamping jaws and bead breaker - safe return to rest position
- Universal design - can also be used on other workshop equipment
- Easy to install - quick replacement of a worn or broken spring
Why replace the spring?
A worn or weakened clamping jaw and bead breaker spring can cause:
- delayed or incomplete return of the clamping jaws
- irregular operation of the bead breaker
- reduced working comfort and safety for the operator
Fitting a new, strong spring quickly restores full functionality to the tyre changer, reduces the risk of damage to other components and minimises workshop downtime.
Who is this replacement for?
It is the ideal choice for:
- tyre service centres operating INVENTO tyre changers
- car and fleet workshops
- individual users with a TCS 521 or TC 724 MI tyre changer
Choose a proven replacement for the clamping jaw and bead breaker spring - a small component that has a huge impact on the safety, precision and comfort of your tyre changer.
