Replacement: Redats L-260 steel lifting cable

High-quality replacement steel cable designed for the Redats L-260 two-post lift (model PL-4.0-2DEA, capacity 4000 kg, automatic). The product is fully compatible with the original and provides a reliable solution for professional garages, service workshops and vehicle inspection stations.

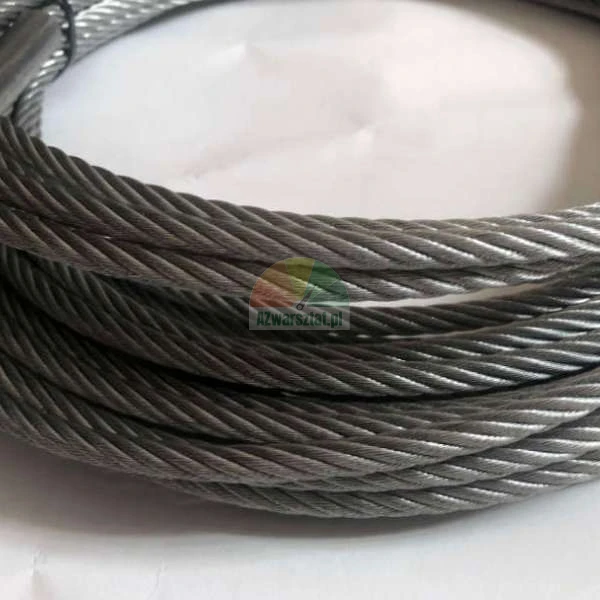

The cable is made of high-quality steel resistant to stretching and mechanical damage - ensuring long-lasting use and safe operation even under intensive use.

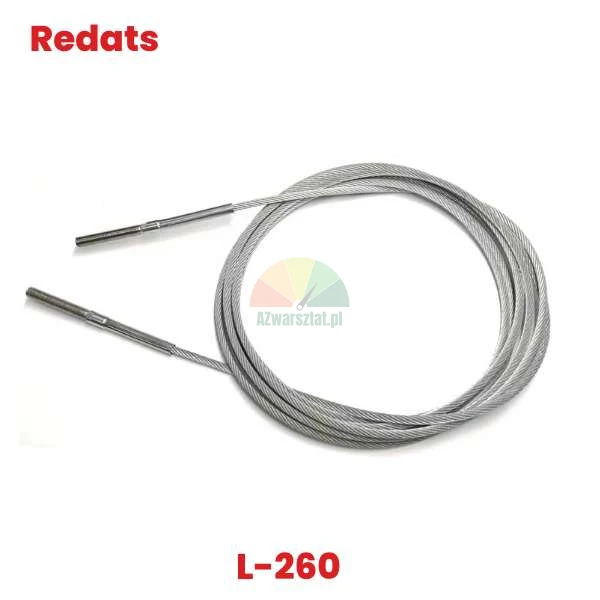

Redats L-260 steel lifting cable - dimensions: total length approx. 4.5 m, cable diameter 10 mm, eyelet ends

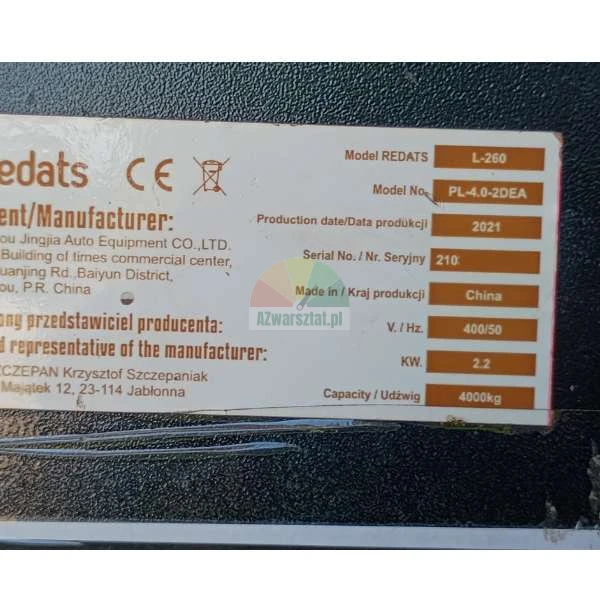

Example of nameplate photo.

Key product features

Compatibility: Replacement for the Redats L-260 lift (PL-4.0-2DEA), in line with the original specifications.
Durability: High-quality steel ensures resistance to tension, mechanical damage and long service life.
Precise fit: The correct length and cable ends guarantee trouble-free installation and correct operation of the lift.
Safety: Replacing the cable with a new one ensures operational safety and protection of the vehicles being lifted.
Conformity: The product meets the requirements of the Machinery Directive 2006/42/EC and EN ISO 12100, and is supplied with an EU Declaration of Conformity - enabling legal and safe use in vehicle lifts.

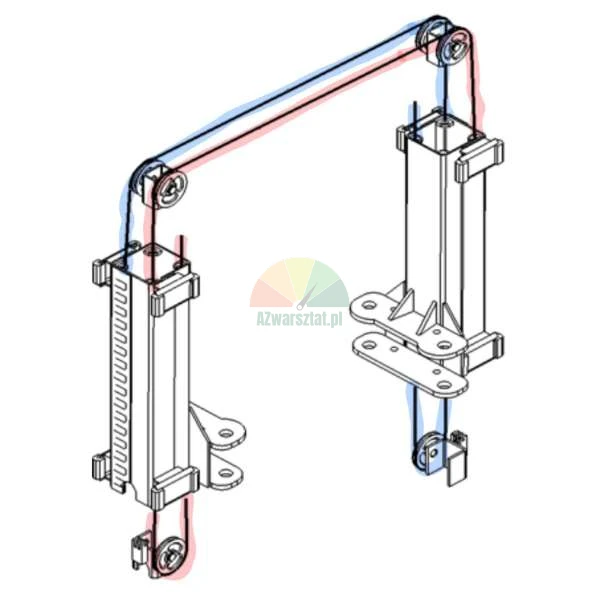

Steel cables in Redats L-260 lifts are responsible for synchronisation of the columns and stability of the lifted vehicle, which is crucial for safety and comfort of use.
The price is for one cable. Two cables are used on the Redats L-260 lift. We recommend replacing both cables at the same time for maximum safety and even operation of the unit!

Why choose our replacement?

High durability - steel cable resistant to corrosion and intensive use.
Hassle-free installation - precise terminations, compatibility with the original.
Safety - ensures stable operation of the lift and protection of the vehicle.
Professional application - ideal choice for workshops, service centres and vehicle inspection stations.
Compliant with applicable regulations - facilitates passing the regular inspection of the lifting equipment by a competent person, in accordance with applicable regulations and EN ISO 9927-1.

Replacing the steel cable is a simple investment in the safety and reliability of your workshop lift!
By ordering two cables, you ensure long-lasting and safe operation of your lift.

Manufacturer

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

+48534920100 slawek@graf-art.pl

Number of ratings: 0

Rate and review

Security

You can feel completely safe when shopping in our online store.

Check

Delivery

Fast delivery via DPD. Your package will arrive within 3 days.

Check

Payment

Among the various payment methods, choose the best option for yourself.

Check

Technical consulting

Ask our specialist. We'll help.

shop@azworkshop.eu

Free shipping

Free shipping for purchases of 50€ or more.

Do you need help?

We are here to make your choice easier and speed up the repair.

Module informational graphic — Want to know more? Check out our knowledge base.
**Go to the blog.**

Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.

📞 Call or send a message—we'll recommend the best solution:

+48 534 920 100

Call charges according to your operator's rates.

Frequently Asked Questions

What cables do I need for my two-post lift?

Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.

Additionally, to correctly select the rope, you need to provide the following technical parameters:

Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
Thread – diameter (e.g., M16)
Thread – length – length of the threaded section (e.g., 14 cm)

The drawing below shows the parameters that must be provided when ordering the rope:
Ropes parameter

What is my machine's model?

Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.

Can I return or exchange the part if it doesn't fit?

Yes, of course.

If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.

For the return to be accepted, the part must:

be unused and undamaged,
show no signs of installation,
be sent back in its original or appropriately secured packaging.

We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
