Steel rope for SDW50 four-post lift (5.4 m)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-LINA-0025
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

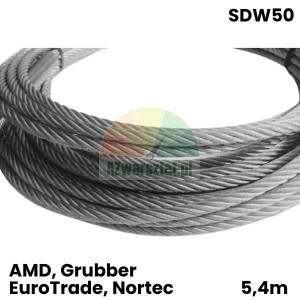

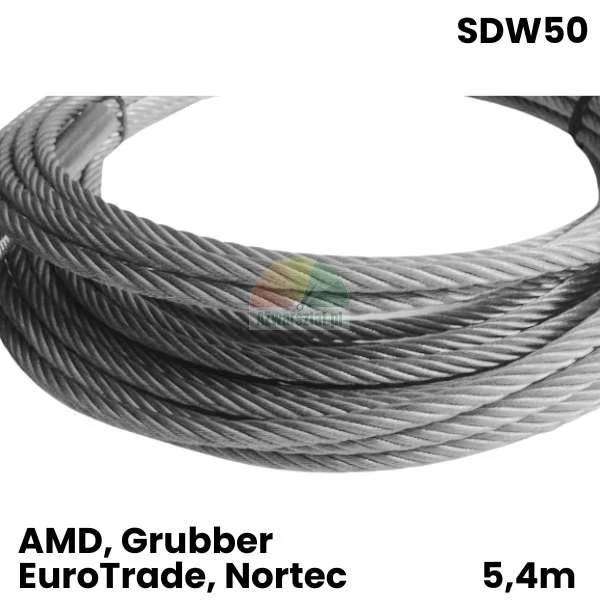

Steel cable for SDW50 four-post lift (5.4 m)
We offer a high-quality steel cable designed for four-post lifts. It is a key element for maintaining safety and synchronising the operation of the lift columns. This product is characterised by high tensile strength and resistance to wear, which ensures long and trouble-free operation of the equipment in the workshop.
Application and compatibility
The cable has been designed as a replacement part for popular workshop lift models. Thanks to its precise workmanship, it fits perfectly with equipment from many reputable manufacturers.
Compatibility: The cable fits, among others, lifts of the following brands: AMD, Grubber, EuroTrade, Nortec and other models marked with the symbol SDW50.
Technical data and dimensions
Before purchasing, please carefully check the dimensions of the old cable in your equipment. Below are the detailed technical specifications of the product:
- Total length: 5.4 m (5400 mm)
- Material: High-quality braided steel
- End type 1: Threaded pin
- End type 2: Ferrule (stopper)

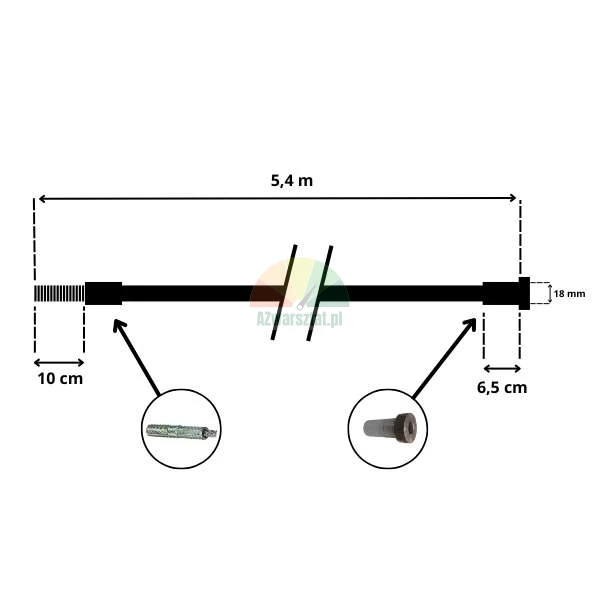

Detailed dimensions of the ends:
• Length of the tensioning thread: 10
cm
• Length of the crimp (stopper): 6.5
cm
• Diameter of the stopper head: 18 mm
Regular replacement of load-bearing and synchronisation cables is essential to maintain the safety of operators and to ensure the lifting equipment passes regular inspection by a competent person, in accordance with applicable regulations and EN ISO 9927-1. By choosing our cables, you are opting for proven quality in a professional edition.
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
It pairs well
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)
The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?
- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
Can I return or exchange the part if it doesn't fit?
If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.
For the return to be accepted, the part must:
- be unused and undamaged,
- show no signs of installation,
- be sent back in its original or appropriately secured packaging.
We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
