LXW5-11G1 limit switch (microswitch)

The LXW5-11G1 limit switch is a high-quality microswitch with a roller lever, designed for precise control and protection of workshop and industrial machines. It is ideal as a spare part for tyre changers, wheel balancers and vehicle lifts. Thanks to its universal design and easy installation, it fits many models of popular workshop and industrial equipment.

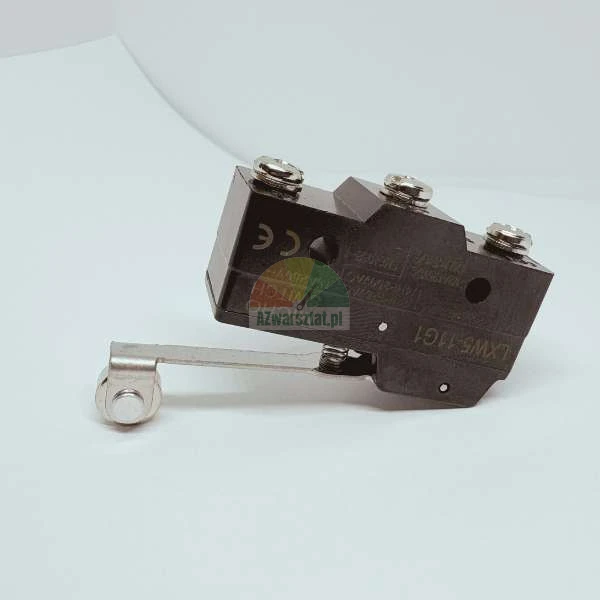

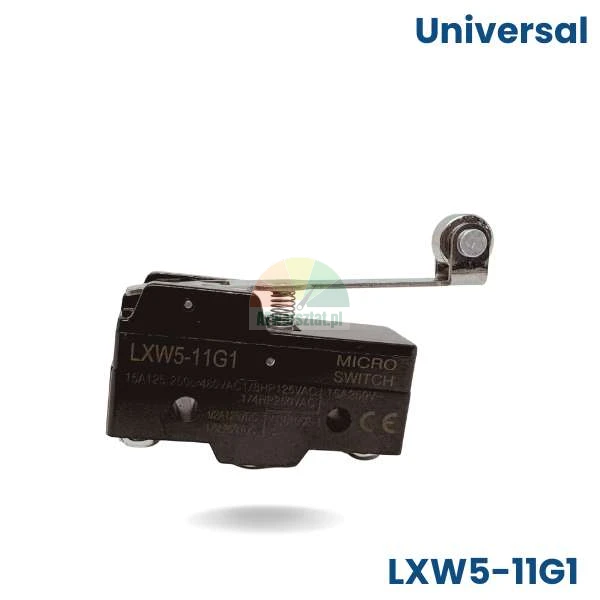

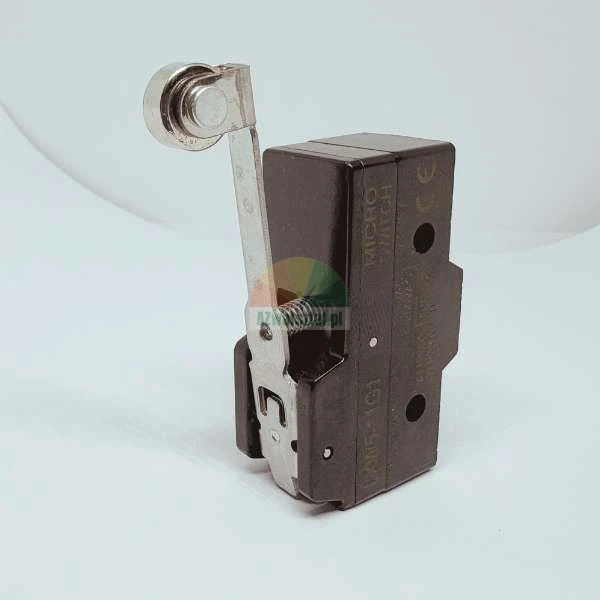

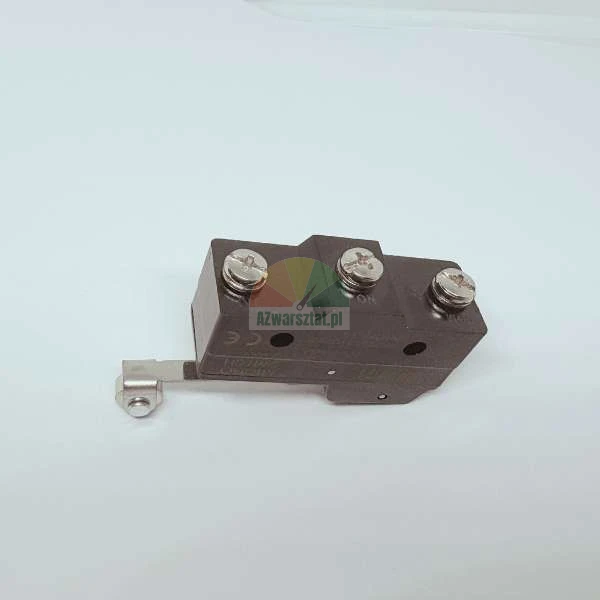

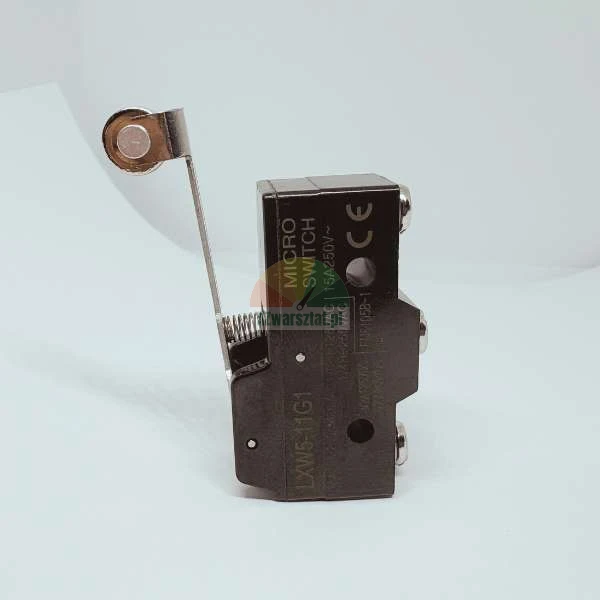

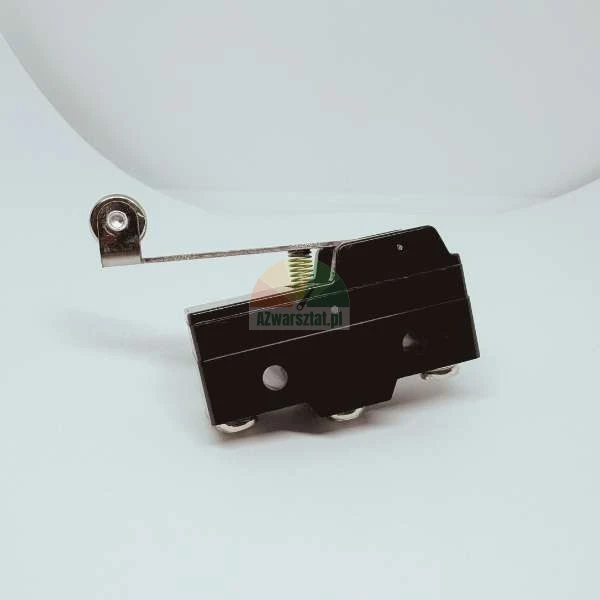

Product image: LXW5-11G1 switch

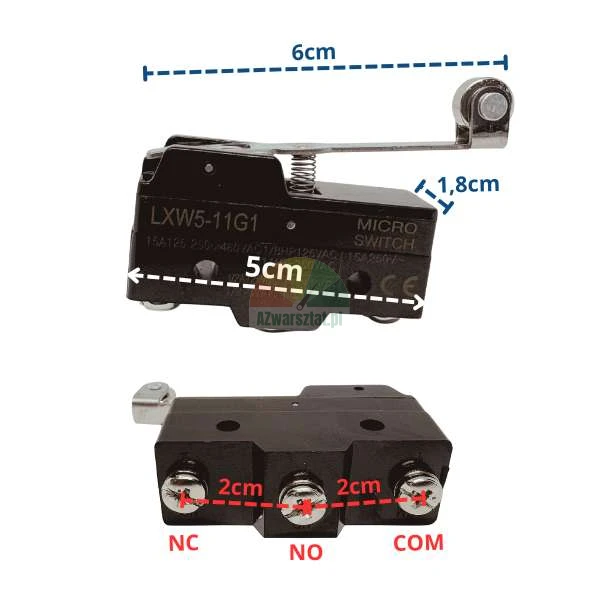

Dimensions: overall length with lever: 6 cm, body length: 5 cm, body width: 1.8 cm, terminal spacing: 2 cm (NC-NO, NO-COM)

The LXW5-11G1 microswitch is distinguished by its long mechanical life - up to 20 million operating cycles, which guarantees long and trouble-free operation in demanding applications. By replacing the microswitch, you can quickly restore the performance of the device without costly repairs.

Product highlights:

Universal application - fits many workshop and industrial machines
Contact type: 1NO + 1NC (one normally open, one normally closed contact)
Standard pinouts: NC, NO, COM (2 cm spacing)
Easy installation thanks to standardised terminals
Robust design for long service life
Precise and reliable operation
Resistant to dust and splashing - protection class IP62
Spring return (reset) - quick readiness for the next cycle
Compatible with many machine models

Technical data:

Model: LXW5-11G1
Type: Microswitch with roller lever
Contact type: 1NO + 1NC
Rated voltage: 380V AC / 220V DC (max. 250V AC)
Rated current: 10A (max. 15A)
Contact resistance: ≤ 30 mΩ (initial value)
Insulation resistance: ≥ 100 MΩ at 500V DC
Electrical life: min. 500,000 cycles
Mechanical life: up to 20 million cycles
Contact material: copper or silver (depending on version)
Housing material: plastic, metal
Degree of protection: IP62
Operating temperature range: -25°C to +80°C
Dimensions: overall length with lever: 6 cm, body length: 5 cm, body height: 1.8 cm

Thanks to its universal design and simple installation, the LXW5-11G1 microswitch is used not only in workshop machines, but also in industrial automation, medical devices and printing machines.

Application:

Tyre changers
Wheel balancers
Vehicle lifts
Industrial and workshop machines
Industrial automation
Medical and printing equipment

High build quality and resistance to intensive use make the LXW5-11G1 an excellent choice for professional vehicle service centres and workshops that value reliability and simplicity of installation.

Why choose the LXW5-11G1?

Proven reliability in harsh environments
High mechanical and electrical durability
Easy installation and universal use
Compatible with many machine models
Saves time and service costs
