Balancing machine wheel cover limit switch (microswitch Z-15GQ22-B)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: W-MICR-0001
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

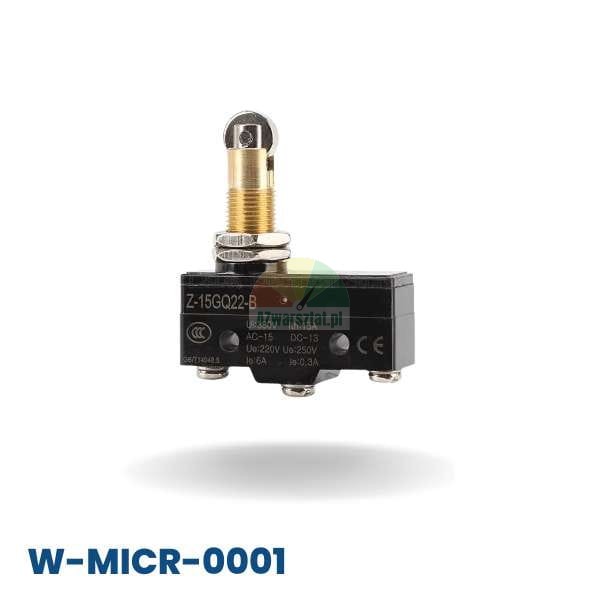

Wheel balancer wheel guard limit switch (microswitch Z-15GQ22-B)
The Z-15GQ22-B microswitch is a high-quality limit switch used on wheel balancers and other machines requiring precise and reliable switching. It performs a key safety function by detecting the position of the wheel guard and automatically interrupting machine operation if it is opened.
Thanks to its robust design and precision engineering, the microswitch ensures a long service life and reliability in demanding workshop environments. It can perform up to 20 operations per minute in electrical mode and 240 operations per minute in mechanical mode.
Technical specifications:
- Model: Z-15GQ22-B
- Operating voltage: up to 380 V
- Rated current: 15 A
- Operation type: mechanical, with roller arm
- Housing material: plastic + metal parts
- Insulation resistance: more than 100 MΩ at 500 V DC

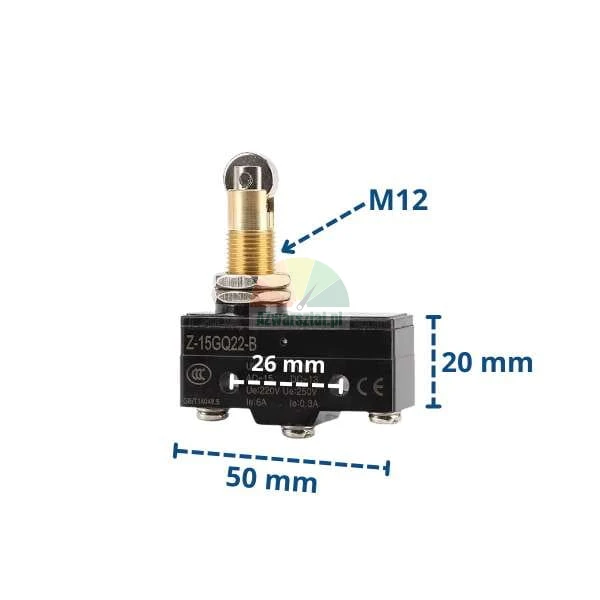

- Mounting dimensions: according to the technical drawing
The microswitch fits many wheel balancer models — check compatibility with your machine before purchasing!
Application:

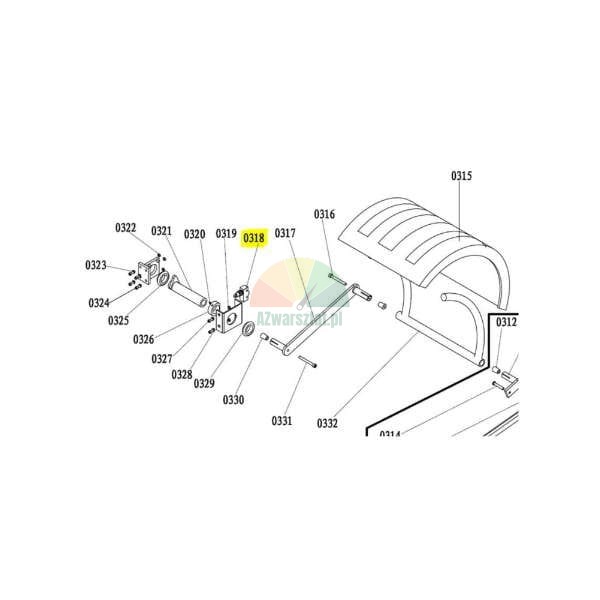

Used in wheel balancers as a safety element responsible for detecting the position of the wheel guard. When the guard is opened, the machine automatically stops operation, increasing user safety.
Why choose this product?
- ✅ High durability — resistant to intensive use
- ✅ Easy to fit — compatible with many wheel balancer models
- ✅ Safety — ensures correct operation of the wheel guard
Don't risk working with a faulty microswitch — replace it with a new one and keep yourself and your employees safe!
Product part number:
W-MICR-0001
Product safety
Manufacturer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
