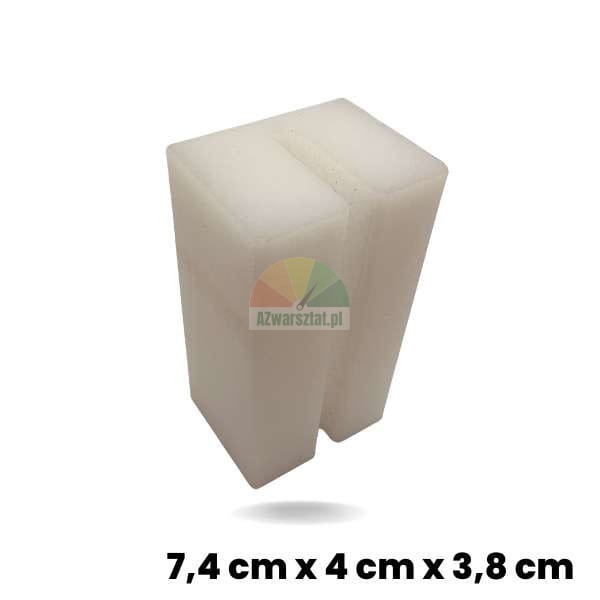

Lift column slide – precision and durability

We offer high-quality slide blocks (slide stones) designed for column car lifts. Slides are consumable parts that ensure smooth movement of trolleys and stability of the lifted vehicle. Worn slides can cause dangerous play, vibrations and accelerated wear of the metal components of the column.

The product is made of a material with high resistance to abrasion and mechanical stress, which guarantees a long service life even with intensive use in a workshop.

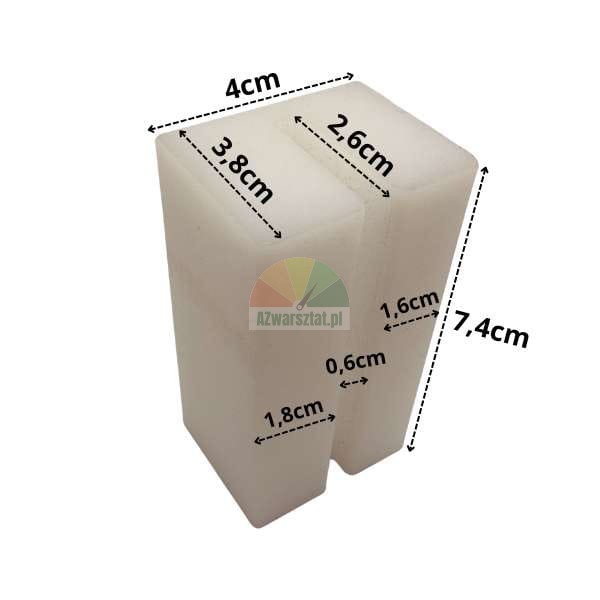

Detailed technical dimensions

To ensure that the part fits your equipment perfectly, please carefully review the dimensional specifications shown in the diagram. Dimensional accuracy is critical for the safe operation of the lift.

Total height: 74 mm (7.4 cm)
Overall width: 40 mm (4 cm)
Depth: 38 mm (3.8 cm)
Guide groove width: 6 mm (0.6 cm)
Side wall width (at the groove): 18 mm (1.8 cm) and 16 mm (1.6 cm)

Important: Before making a purchase, be sure to measure the worn part in your lift. Equipment manufacturers often use different types of slides depending on the year and model of the machine.

Why is it worth replacing the slides as a set?

Even wear of the guide elements is crucial for maintaining the working geometry of the trolley. Replacing only one element may cause faster wear of the new part due to uneven distribution of forces.

We recommend regularly checking the condition of the slides and keeping the column raceway clean. Proper maintenance significantly extends the service life of these components.

Responsible person in the EU

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

534920100 slawek@graf-art.pl

Number of ratings: 0

Rate and review

Security

You can feel completely safe when shopping in our online store.

Check

Delivery

Fast delivery via DPD. Your package will arrive within 3 days.

Check

Payment

Among the various payment methods, choose the best option for yourself.

Check

Technical consulting

Ask our specialist. We'll help.

shop@azworkshop.eu

Free shipping

Free shipping for purchases of 50€ or more.

Do you need help?

We are here to make your choice easier and speed up the repair.

Module informational graphic — Want to know more? Check out our knowledge base.
**Go to the blog.**

Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.

📞 Call or send a message—we'll recommend the best solution:

+48 534 920 100

Call charges according to your operator's rates.

Frequently Asked Questions

What cables do I need for my two-post lift?

Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.

Additionally, to correctly select the rope, you need to provide the following technical parameters:

Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
Thread – diameter (e.g., M16)
Thread – length – length of the threaded section (e.g., 14 cm)

The drawing below shows the parameters that must be provided when ordering the rope:
Ropes parameter

What is my machine's model?

Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.

Can I return or exchange the part if it doesn't fit?

Yes, of course.

If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.

For the return to be accepted, the part must:

be unused and undamaged,
show no signs of installation,
be sent back in its original or appropriately secured packaging.

We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
