Lift slide (cube with holes) 7 x 3.7 x 3 cm
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-SLIZ-0009
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

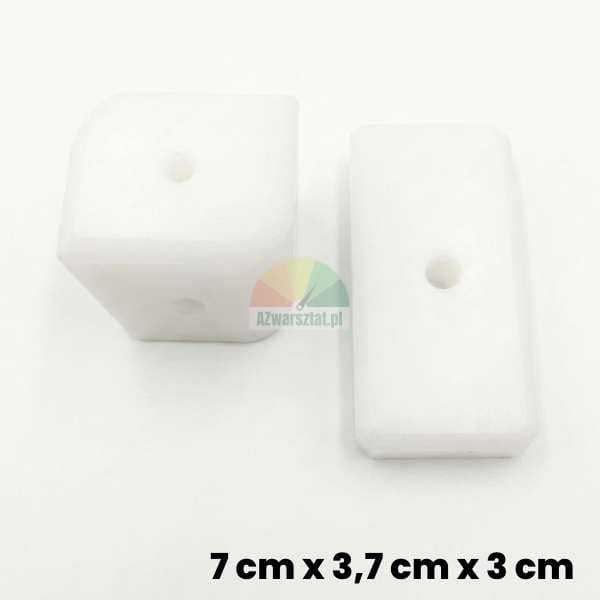

Vehicle lift slide – Guide block 70x37x30 mm
We offer high-quality guide slides (also known as guide blocks) designed for vehicle lifts. This is an essential consumable part that ensures stable and smooth movement of the lifting carriage inside the lift column. Made of durable plastic with high abrasion resistance and high mechanical load capacity.
Technical specifications and dimensions

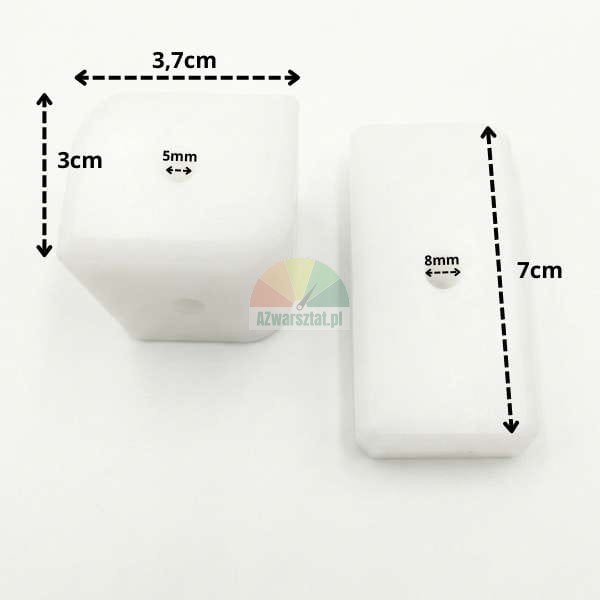

To ensure that the part will fit your device, please verify the dimensions against the worn component. The block shown has the following parameters:
- Total length: 70 mm (7 cm)
- Width: 37 mm (3.7 cm)
- Thickness: 30 mm (3 cm)
- Hole diameter (front): 8 mm
- Hole diameter (top/bottom): 5 mm

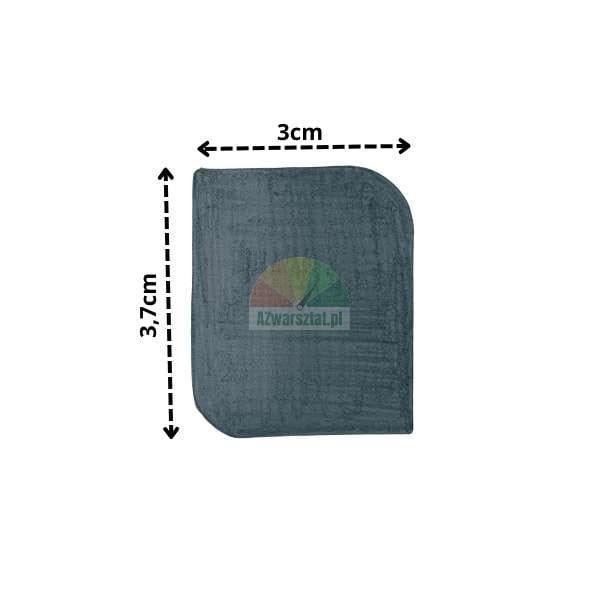

Special features: The block has one rounded corner (visible in the side view), which is crucial for proper fitting in the profile.
Why is it worth replacing the slides?
Worn guide slides are the most common cause of play in the lifting carriage, which can lead to dangerous vibrations and accelerated wear of the metal guide components.
To maintain full safety and stability of the vehicle lift, we recommend replacing the slides in complete sets.
Product safety
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Importer
LIVRE RAPIDEMENT SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Osiedle Mieszka I-go 4/46
26-340 Drzewica, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
It pairs well
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)
The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?
- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
Can I return or exchange the part if it doesn't fit?
If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.
For the return to be accepted, the part must:
- be unused and undamaged,
- show no signs of installation,
- be sent back in its original or appropriately secured packaging.
We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
