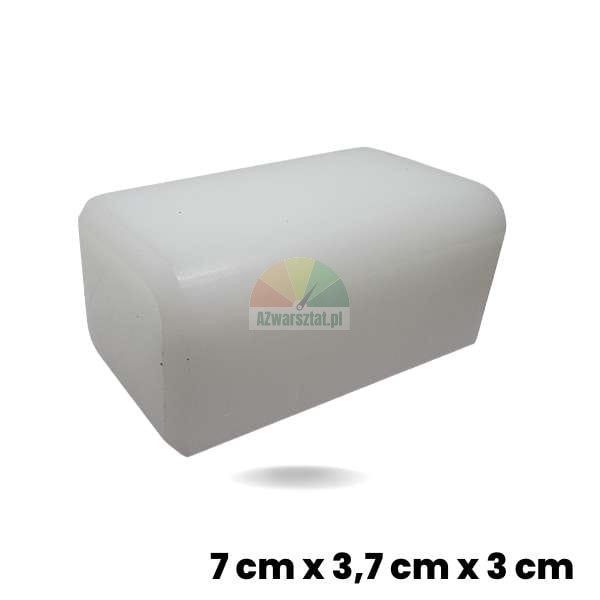

Lift slide (cube) 7 x 3.7 x 3 cm
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-SLIZ-0008
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

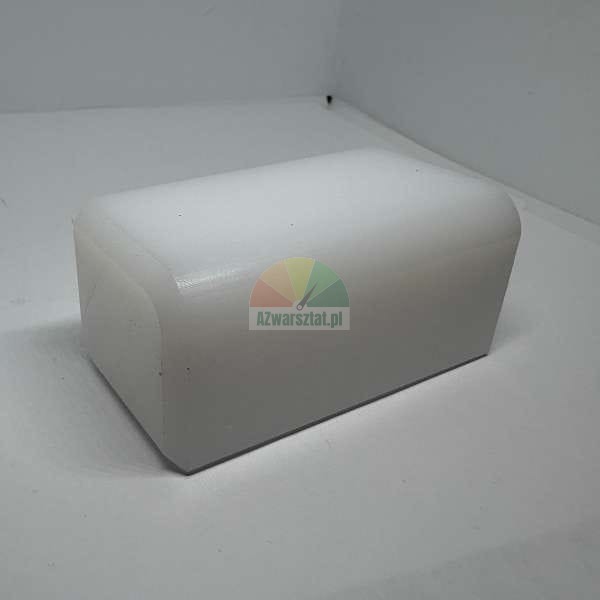

Lift slide block (cube) – Lifting carriage guide element
We offer high-quality slide blocks (guide blocks) designed for vehicle lifts. This element is responsible for the smooth and stable movement of the lifting carriage inside the column, minimising friction and protecting metal components from premature wear.
The slide blocks are made of high-density plastic, which ensures excellent resistance to abrasion, lubricants and mechanical loads occurring during everyday work in the workshop.
Technical specifications and dimensions

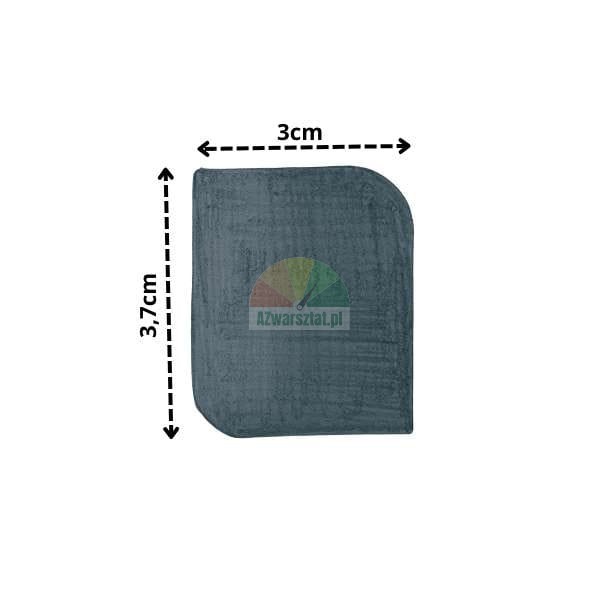

The product is characterised by its precise workmanship. The cube has a specific profile with one rounded corner, as shown in the attached cross-section. Please check the dimensions carefully before purchasing.

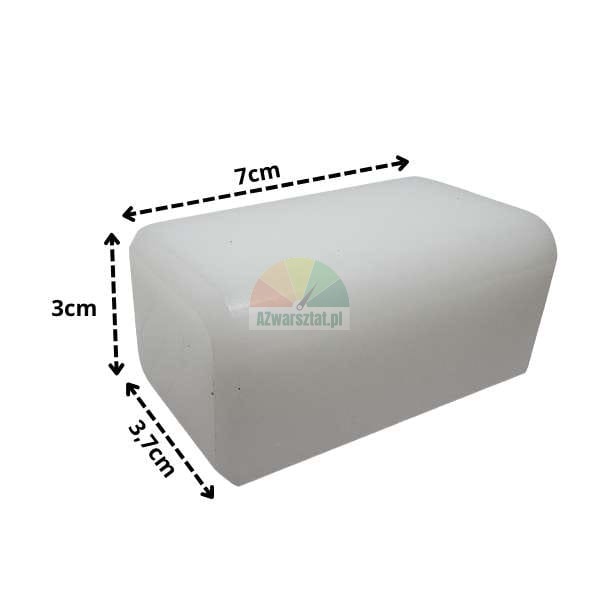

- Length: 7 cm (70 mm)
- Width: 3.7 cm (37 mm)
- Depth/thickness: 3 cm (30 mm)
- Material: Durable, friction-resistant plastic
- Colour: White / Milky
Why is it important to replace the slide blocks?
Worn slide blocks can cause dangerous swaying of the lifting carriages, uneven lifting of the vehicle and irreversible damage to the lift columns. Regular replacement of these components is essential for safe operation and longevity of the equipment.
Note: Due to the variety of lift models on the market, we suggest removing the old component and comparing its dimensions with those presented above (7 x 3.7 x 3 cm) to avoid mistakes when selecting parts.
