Limit switch 8108
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-KRAN-0003
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

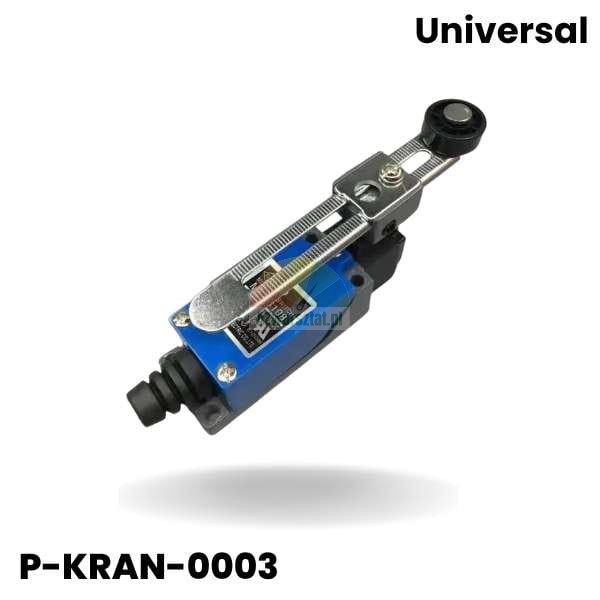

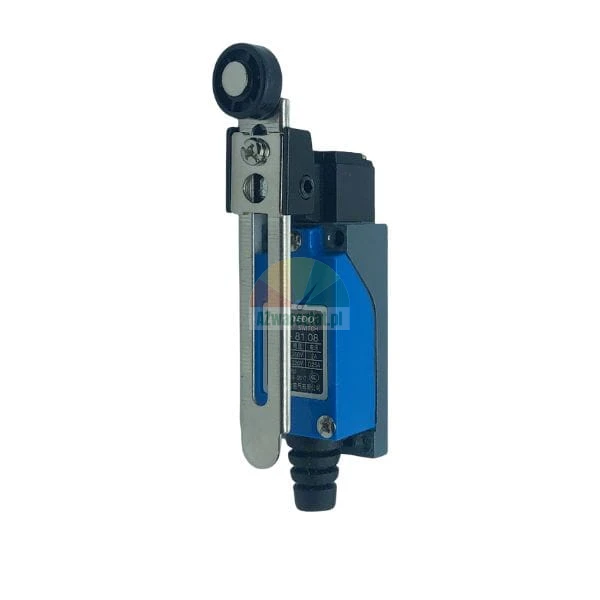

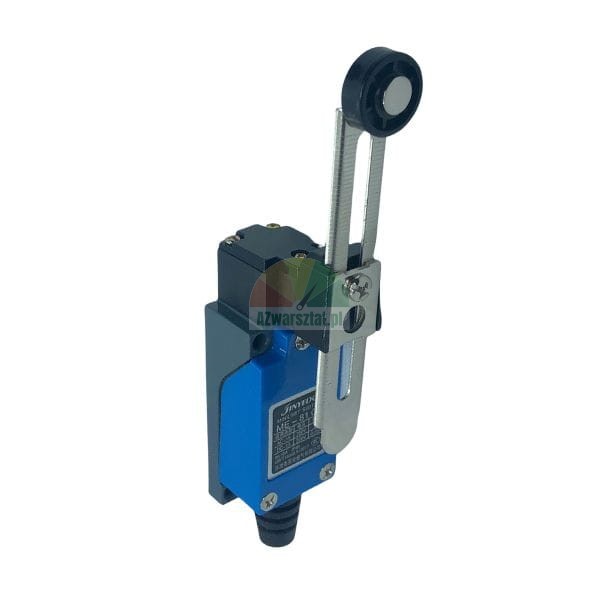

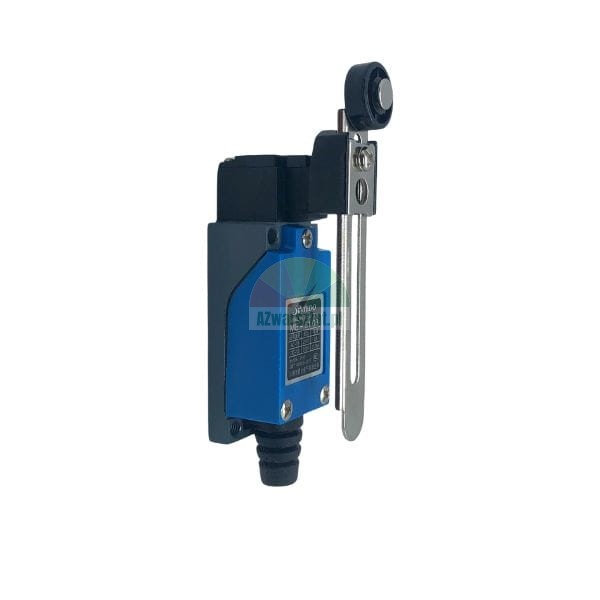

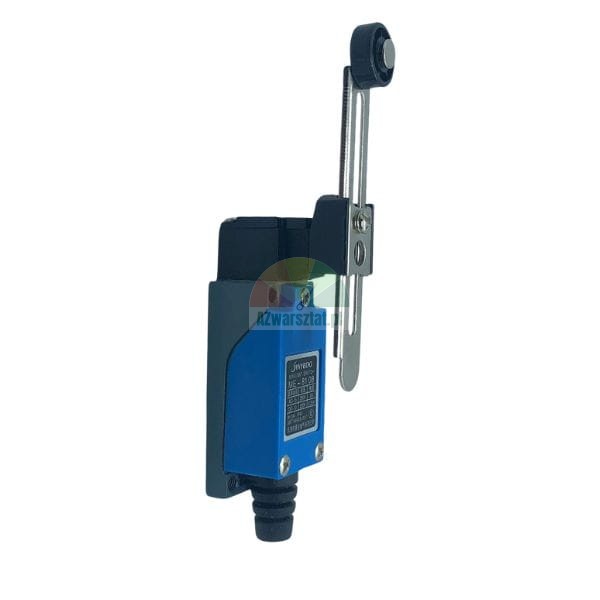

ME-8108 limit switch with adjustable arm
High-quality ME-8108 limit switch with a rotary lever and roller. It is a reliable component for automation systems, ideal as a spare part for workshop machinery such as car lifts, tyre changers and wheel balancers.
The fully adjustable arm with roller allows the actuation torque to be precisely adjusted to the specific characteristics and requirements of each machine, which significantly improves safety and operational smoothness.
Electrical specifications
The switch is rated for loads suitable for most tyre-fitting and workshop equipment.
- Model: ME-8108
- Contact configuration: NO (03–04) + NC (01–02)
- Rated load: 5A 250V AC / 0.4A 115V DC

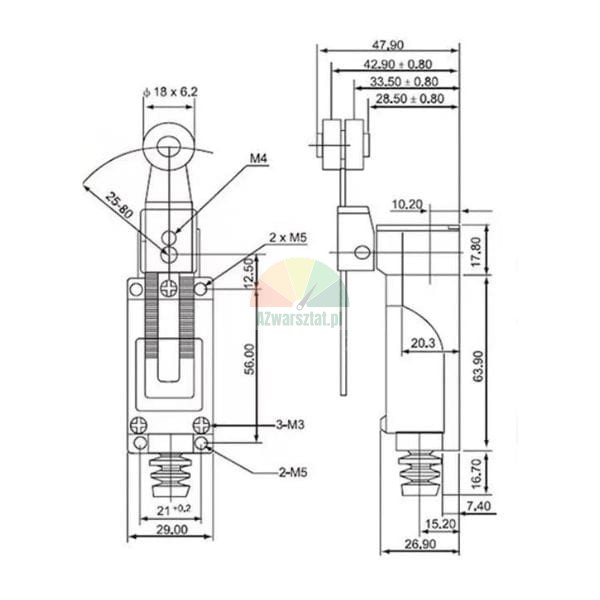

Dimensions and technical specifications
The robust housing protects the interior from dirt, whilst the rubber grommet protects the cable from mechanical damage.
- Total length (vertical): 18 cm
- Width of the blue housing: 28 mm
- Length of the adjustable arm: 10.2 cm
- Horizontal length of the roller mechanism: 11.6 cm
- Roller diameter: 18 mm
- Width of cable gland: 22 mm
The azworkshop.eu shop guarantees tried-and-tested components, enabling you to quickly and effectively restore your workshop equipment to full working order.
