Limit switch 8104
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-KRAN-0004
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

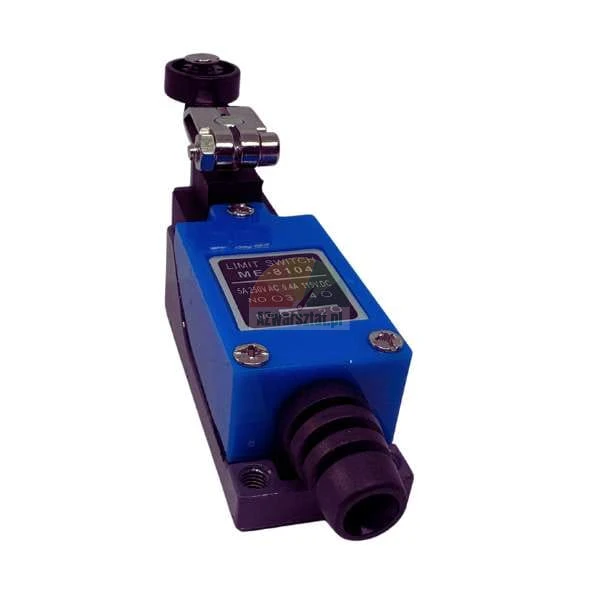

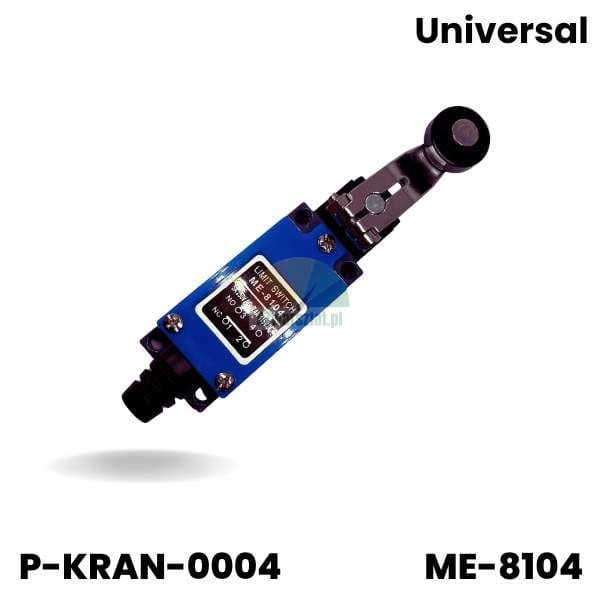

ME-8104 professional limit switch with roller
At the azworkshop.eu online shop, we offer top-quality spare parts, including the reliable ME-8104 limit switch. This is a key component of control and automation circuits, designed for the demanding operating conditions found in professional car workshops and tyre repair shops.
Application: This limit switch is ideal as a service part for car lifts, tyre changers and wheel balancers. It ensures precise machine operation and enhances safety at the workshop workstation.

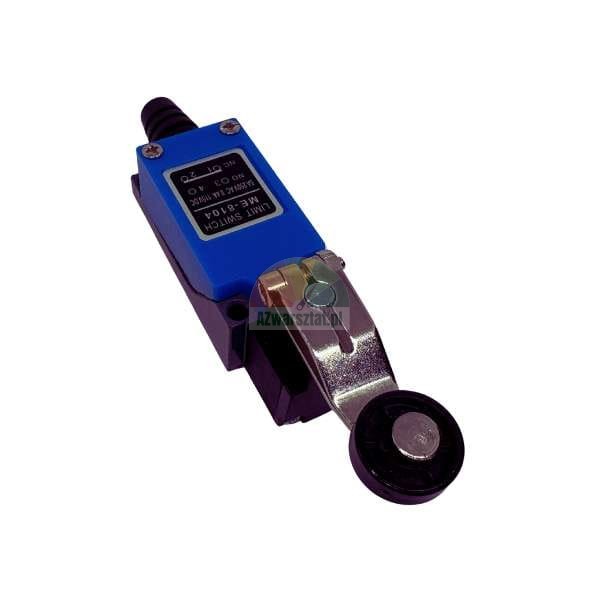

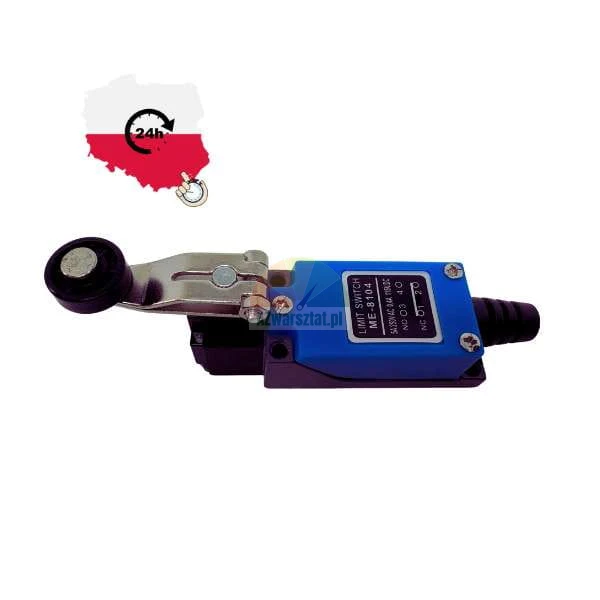

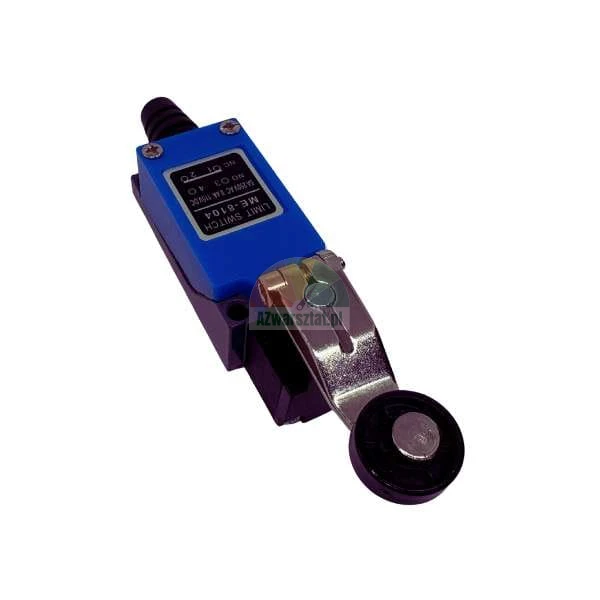

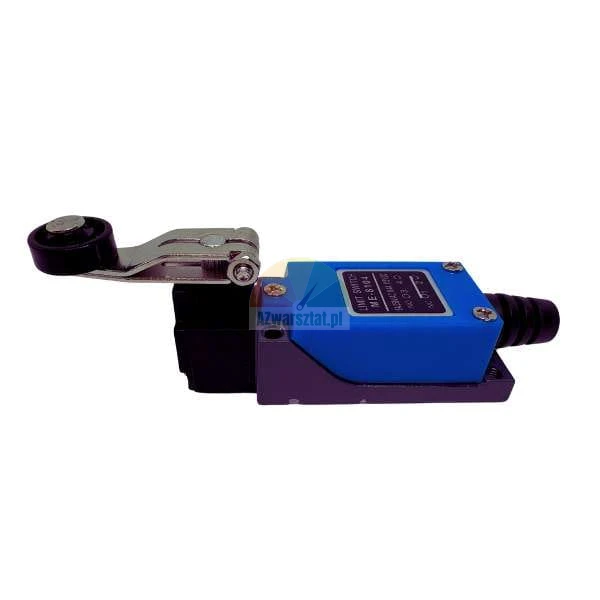

The device is fitted with a robust, adjustable swivel arm featuring an 18 mm diameter roller. This design ensures exceptional flexibility and smooth operation, allowing the sensor to be easily adapted to the specific characteristics and range of motion of a particular machine. The switch housing protects the internal contacts from dust and other operational contaminants.
Electrical parameters (as per specifications)
- Model number: ME-8104
- Current rating: 5A at 250V AC / 0.4A at 115V DC
- NO (Normally Open) contacts: pins 3–4
- NC (Normally Closed) contacts: pins 1–2
Exact dimensions of the device
To ensure that the component will fit your machine perfectly, we have listed its detailed dimensions below:
- Total length of the switch: 126 mm
- Body width: 29 mm
- Lever length (from axis to roller): 50 mm
- Roller diameter: 18 mm
- Width of lower inlet with gland: 22 mm
By choosing to shop at azworkshop.eu, you are investing in equipment with proven durability, which, in the long run, reduces the costs of downtime in your workshop.
Product safety
Manufacturer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
