Limit switch AZ7311
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-KRAN-0002
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

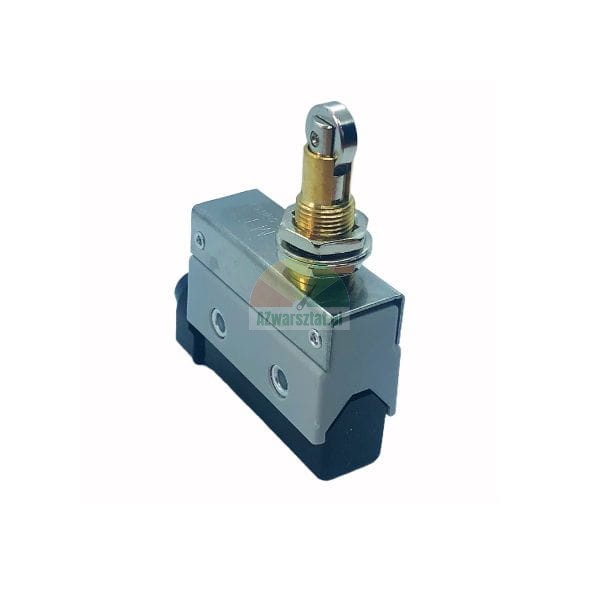

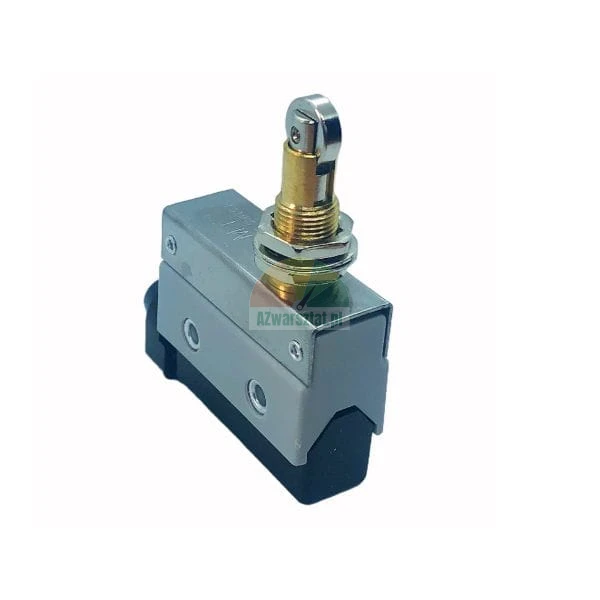

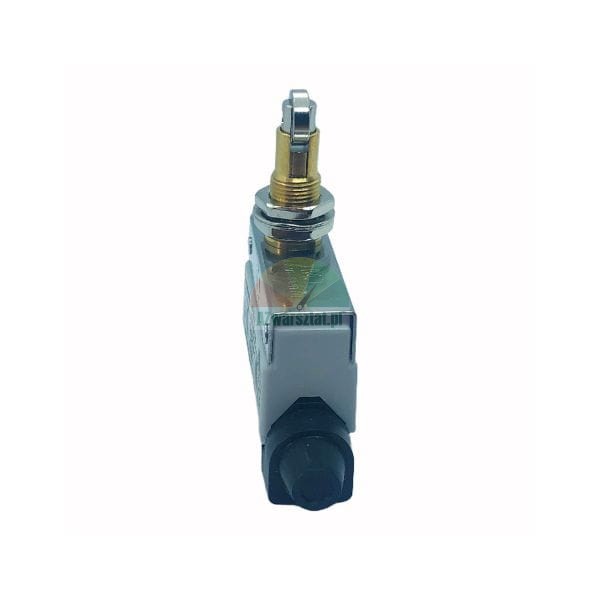

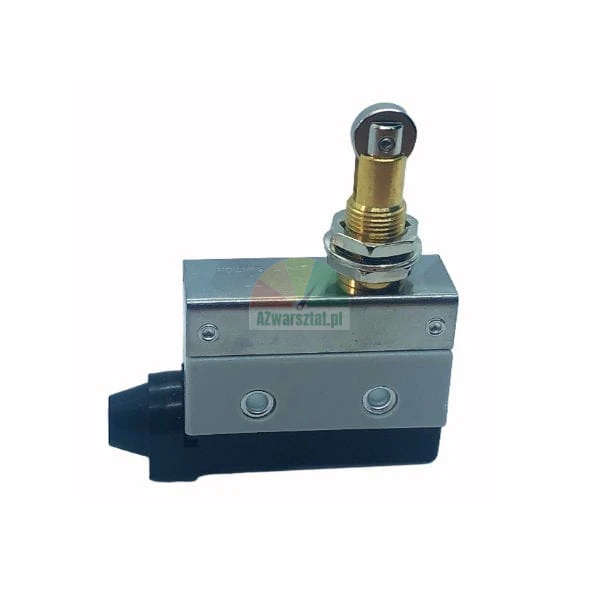

Genuine Panasonic AZ7311 Limit Switch
Ensure trouble-free operation of the machinery in your workshop with professional spare parts from azworkshop.eu. We offer the highest quality AZ7311 limit switch from the renowned Panasonic brand, designed for car lifts, tyre changers and wheel balancers.

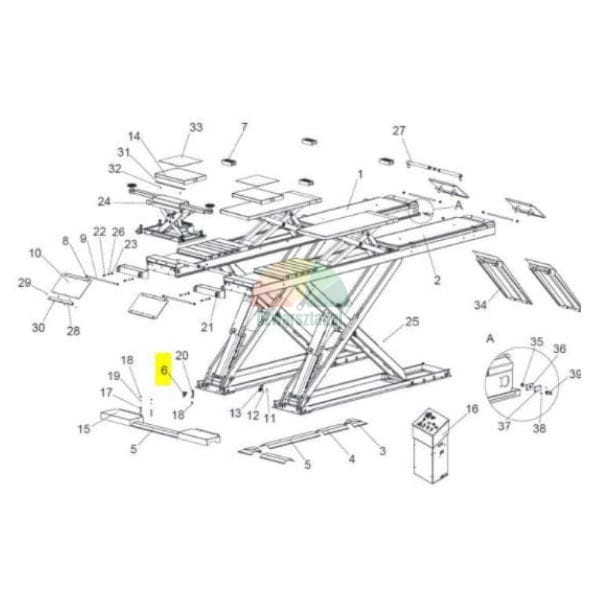

Installation tip: This model is ideal as a key safety component in scissor lifts (marked as item no. 6 on the machine's schematic diagram). It ensures the power supply is cut off precisely and the lift platform is brought to a safe stop in the desired position.

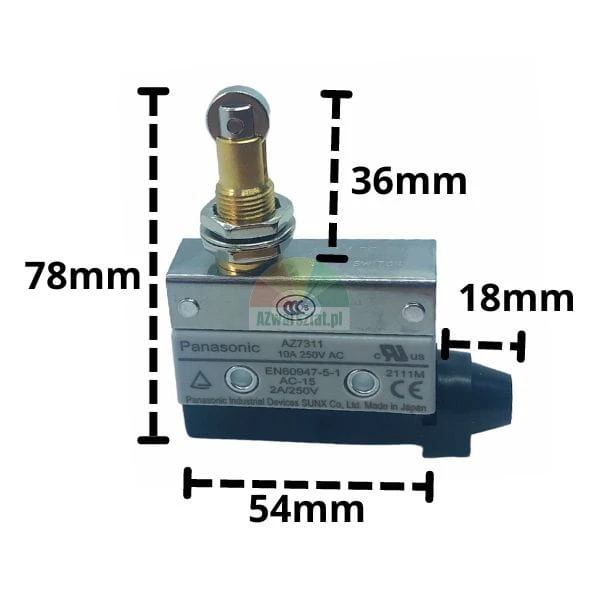

Technical Specifications and Dimensions
This limit switch is manufactured in Japan and meets strict industrial standards (it is CE and cURus certified). Its robust housing and precision roller mechanism ensure many years of service life. Below are the exact dimensions to help you verify and fit it to your equipment:

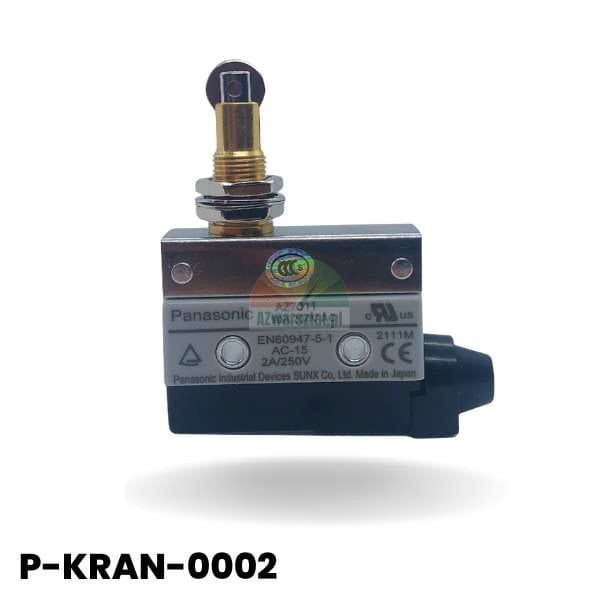

- Model: AZ7311
- Manufacturer: Panasonic (Industrial Devices SUNX Co., Ltd.)
- Electrical specifications: 10A 250V AC / compliant with standard EN60947-5-1 AC-15 2A/250V
- Overall height: 78 mm
- Main body length: 54 mm
- Height of actuating mechanism (thread + roller): 36 mm
- Connector cover length: 18 mm
By choosing genuine components from the azworkshop.eu online shop, you can be assured of the highest quality, reliability and safety in the day-to-day operations of your car workshop or tyre service. This safety component helps ensure that your scissor lift can be used without issue, subject to regular inspection of the lifting equipment by a competent person, in accordance with applicable regulations and EN ISO 9927-1. Order today and get your machines back up and running at full capacity!
Product safety
Manufacturer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
