Brush for the mounting machine
Shipping costs are not included in the price.
Shipping costs are not included in the price.

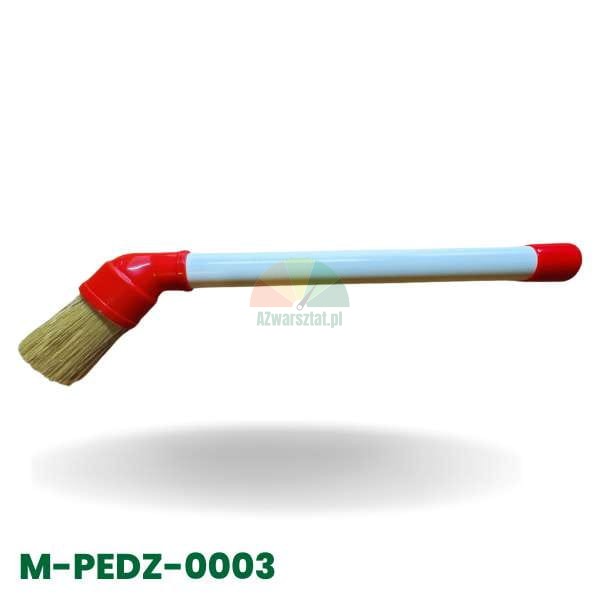

Product code: M-PEDZ-0003
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
Brush for tyre changers, for applying tyre mounting paste

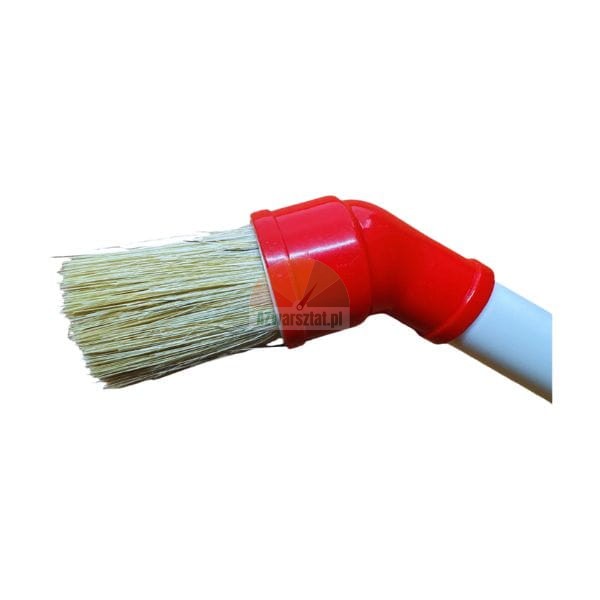

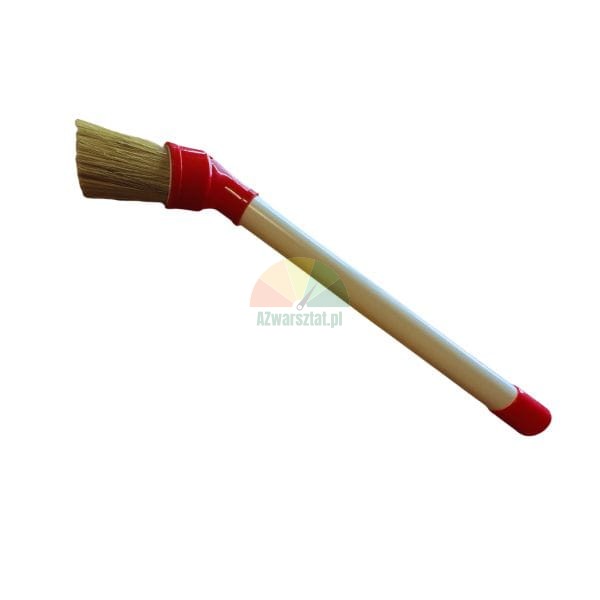

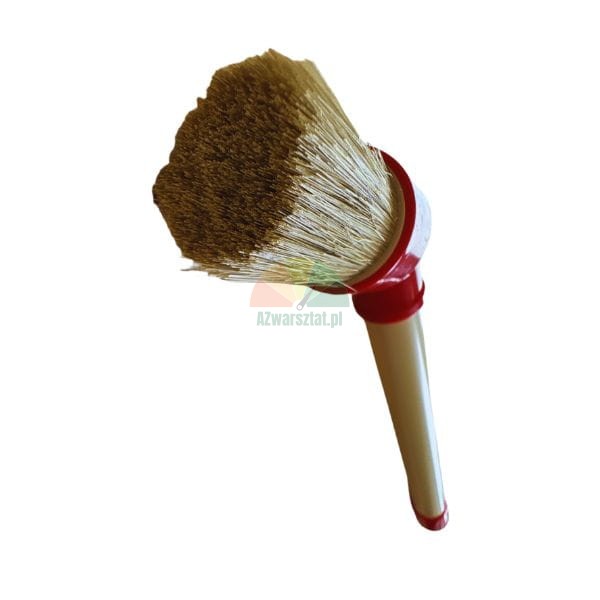

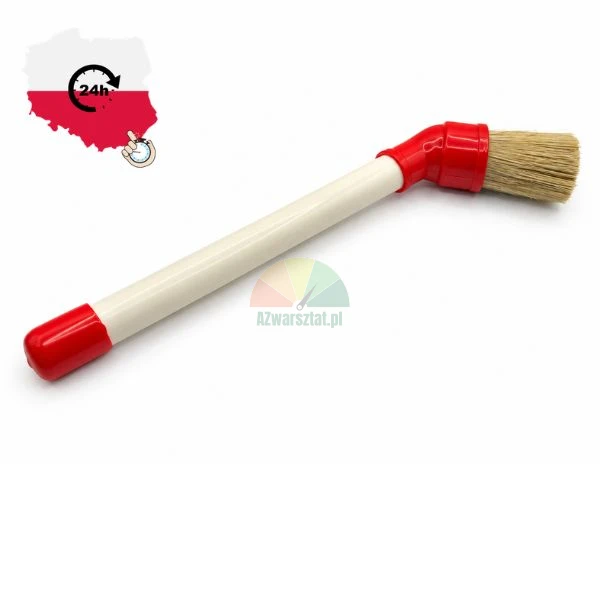

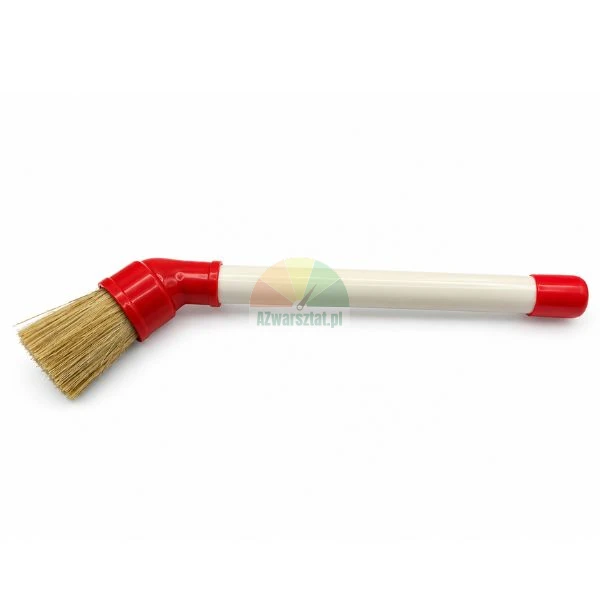

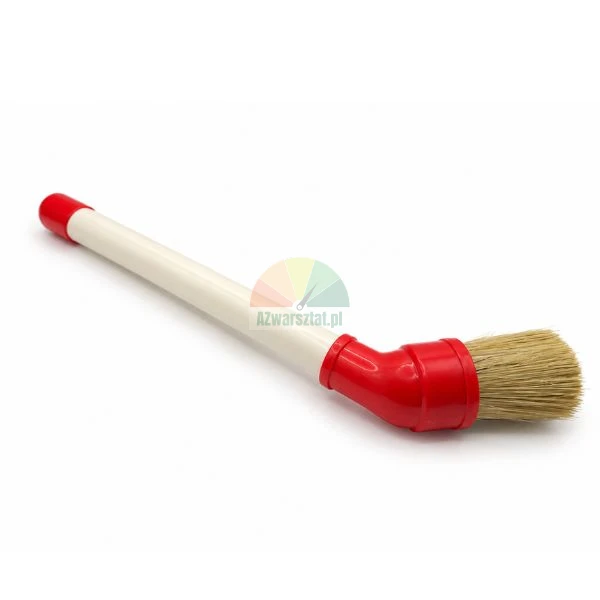

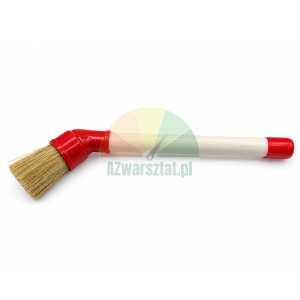

An angled brush designed for applying tyre mounting paste to the tyre bead during the fitting and removal of wheels on a tyre changer. The contoured head makes it easier to reach the inner part of the tyre bead, particularly in the ‘toe’ area — the section of the bead closest to the rim, which is most prone to curling and damage during operation.
The long handle allows the lubricant to be applied without inserting your hand into the working area of the mounting head. The brush is ideal for use with passenger car, van and low-profile tyres, where the lubricant needs to be spread evenly around the entire circumference of the bead, rather than just at the point where fitting begins.
Technical specifications
| Type | brush for mounting paste for tyre changers |

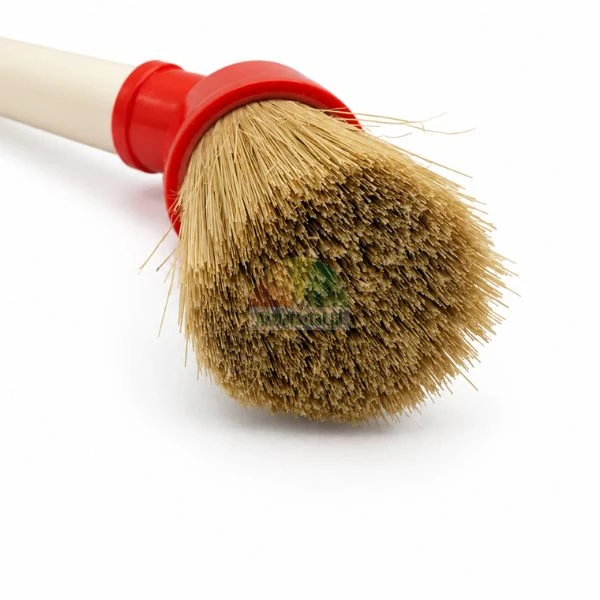

| Design | angled head with a bundle of bristles, plastic handle |

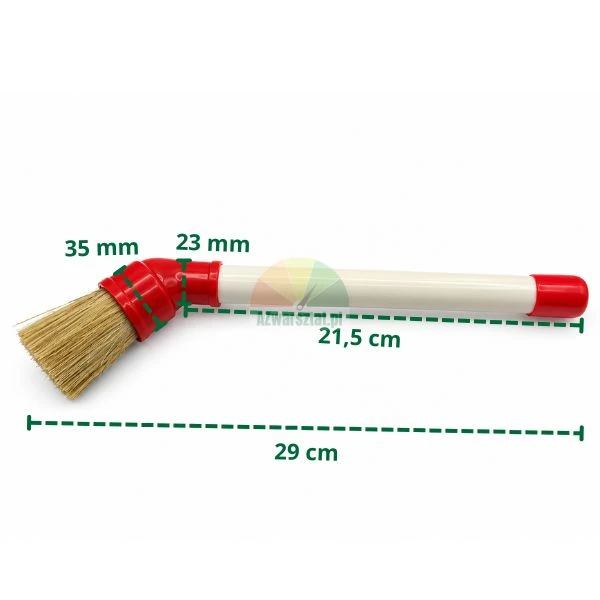

| Overall length | 29 cm |
| Handle length | 21.5 cm |
| Head dimensions shown in the photo | 35 mm |
| Dimension of the part near the handle shown in the photo | 23 mm |
In practice, the paste should also be applied to the inner edge of the tyre bead. Omitting this area increases resistance as the bead passes over the rim flange and may cause the bead to curl, the tyre to jerk, and the mounting head to be overloaded.
What to look out for whilst working
- If the bristles start to separate into individual strands and do not apply the paste evenly, dry patches will form on the bead. This is indicated by sudden resistance when rotating the turntable or the need to reapply paste during fitting.
- With low-profile and stiff tyres, it is particularly important to cover the entire contact area between the tyre bead and the rim with paste. Simply applying paste to the outer surface of the tyre is not sufficient to ensure the bead slides properly.
- Do not use the brush to pry the bead or to press down on the tyre changer’s components. Damage to the brush head may cause the bristles to fall out and contaminate the paste.
- Residues of dried paste on the bristles reduce their flexibility and cause the paste to be applied in an uneven layer. The next time the brush is used, it may appear that the paste has been applied correctly, even though part of the bead remains dry.
