T-shaped pneumatic fitting with a 12.7 mm thread and 10 mm hose connections
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-ZLAC-0025
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

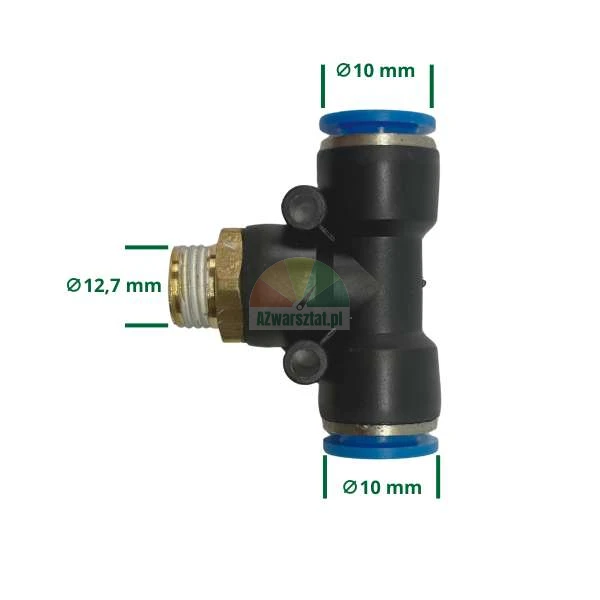

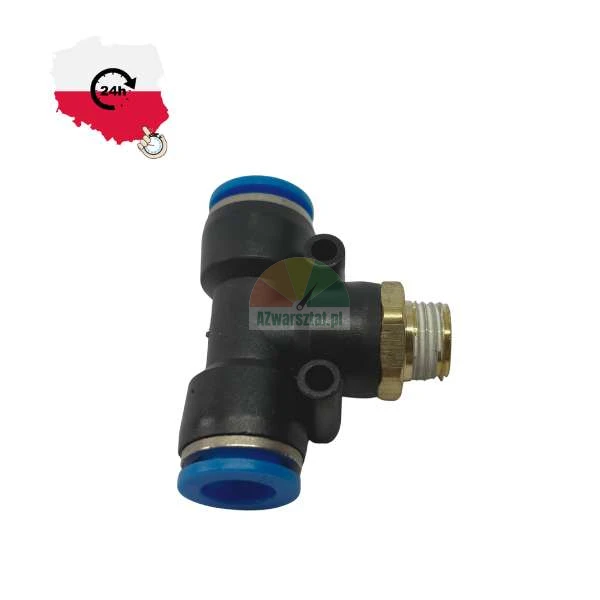

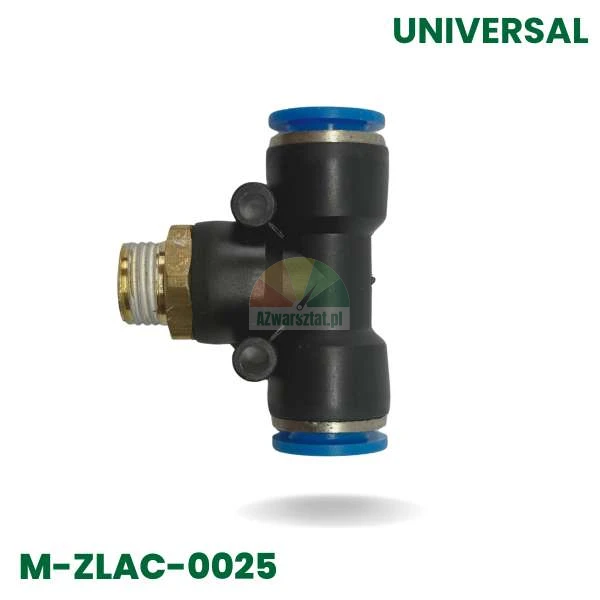

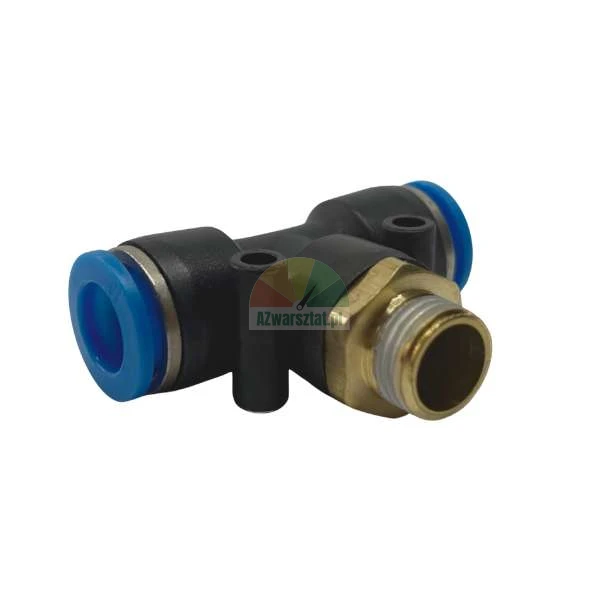

Pneumatic "T" Fitting – 12.7 mm Thread, for 10 mm Hose
A reliable ‘T’-type (T-piece) pneumatic fitting, designed for professional tyre and automotive workshops. It is the ideal choice for building, modifying or servicing compressed air systems in workshop machinery, such as lifts, tyre changers and wheel balancers.
Important: The fitting is fitted with a robust, 12.7 mm diameter brass external thread with a factory-fitted seal. This ensures an immediate leak-tight connection without the need for additional Teflon tape, whilst the two 10 mm connections facilitate quick branching of the system.
Technical specifications:
- Connector type: ‘T’-type tee (plug-in)
- Thread diameter (external): 12.7 mm
- Pneumatic hose diameter: 2 x 10 mm
- Material: High-strength plastic and brass
- Additional features: Integrated hose release ring (Push-In system) and factory-applied thread sealant
Use in your workshop
This T-piece is a high-quality spare part from the AZ Warsztat range. The push-in quick-connect system allows for instant connection and disconnection of hoses, which drastically reduces repair times. It is ideal for distributing air in tyre changer cylinders, jack locking systems and wheel balancer mechanisms.
Choose reliable components and ensure your workshop equipment operates safely and trouble-free for years to come!
